Elite Screens Tripod B Series User Manual

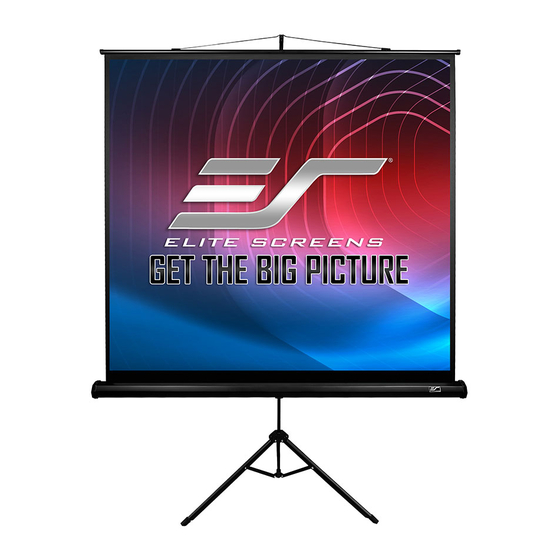

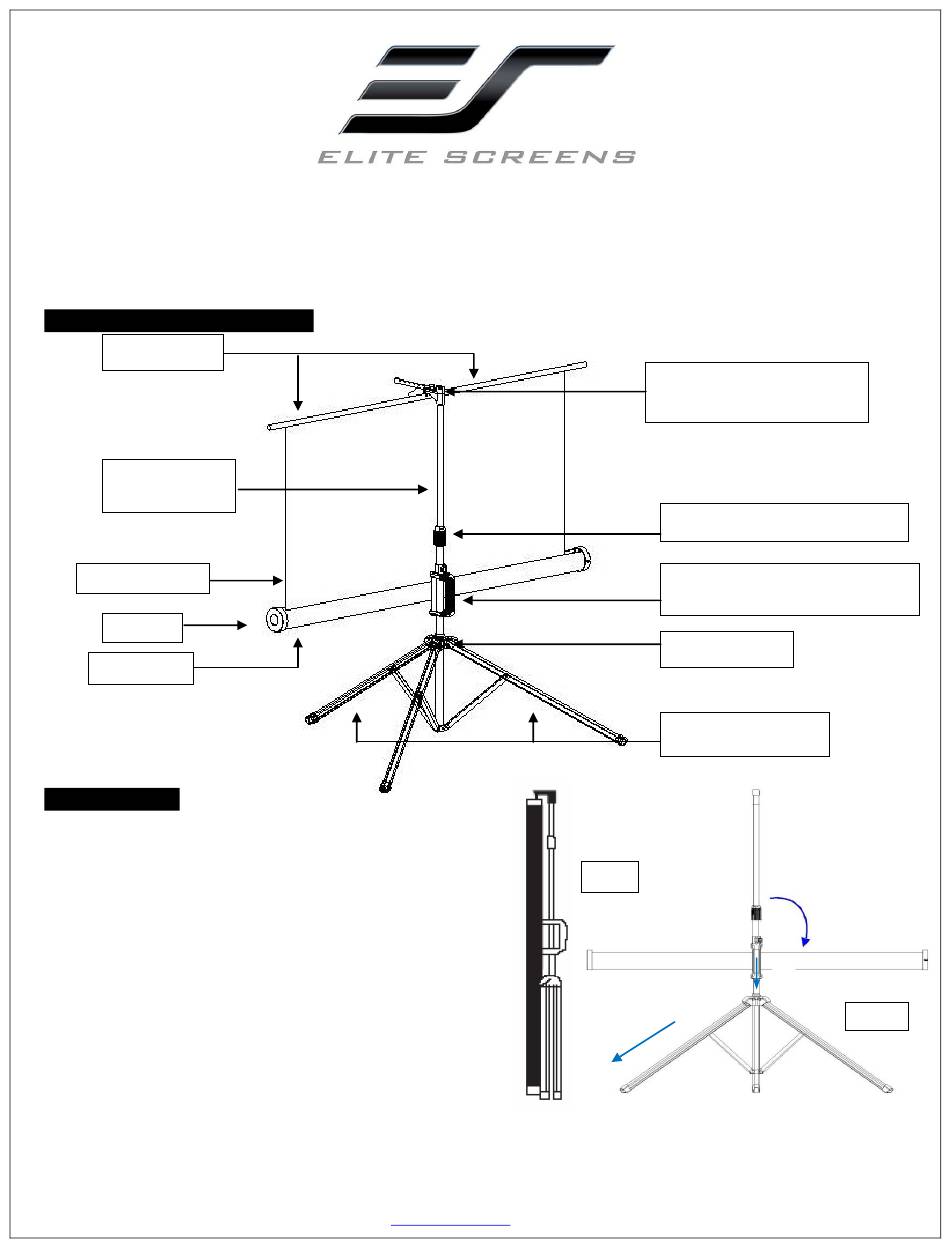

Tripod Screen Parts Identification
Support beam
Vertical
Extension Bar
Screen Material
End cap
Screen case
Using the Screen
A. Setting up the screen:
Follow the steps below and Fig. 1 & 2.
1. Place the screen in an upright position (fig.1) with the
legs toward the ground.
2. Deploy the Tripod Support legs by pushing down on
the Tripod Junction.
3. Release the vertical locking mechanism by placing
the locking tab in an "up" position. Lift the vertical
extension bar up and turn the tripod's screen casing to a
90° horizontal position so that the casing is now parallel
to the ground with the screen handle facing the bottom of
the top hook. Lock the vertical extension bar by placing
the tab in a "down" position.
4. Completely extend the legs as much as possible so
they are stable and position them away from objects that
may interfere with their balance. DO NOT stand the tripod on
an unstable platform to avoid an injury should the tripod screen collapse.
Rev. 060809-JA
Tripod B Series
Tripod Portable Projection Screen
USER'S GUIDE
www.elitescreens.com
Top Hook, Keystone
Eliminator & Screen Handle
Vertical locking tab mechanism
Carrying handle & Screen height
adjustment lock/release tab
Tripod junction
Tripod Support Legs
1
Fig.1
4
3
2
Fig. 2
