Summary of Contents for Little Wonder PRO VAC SP

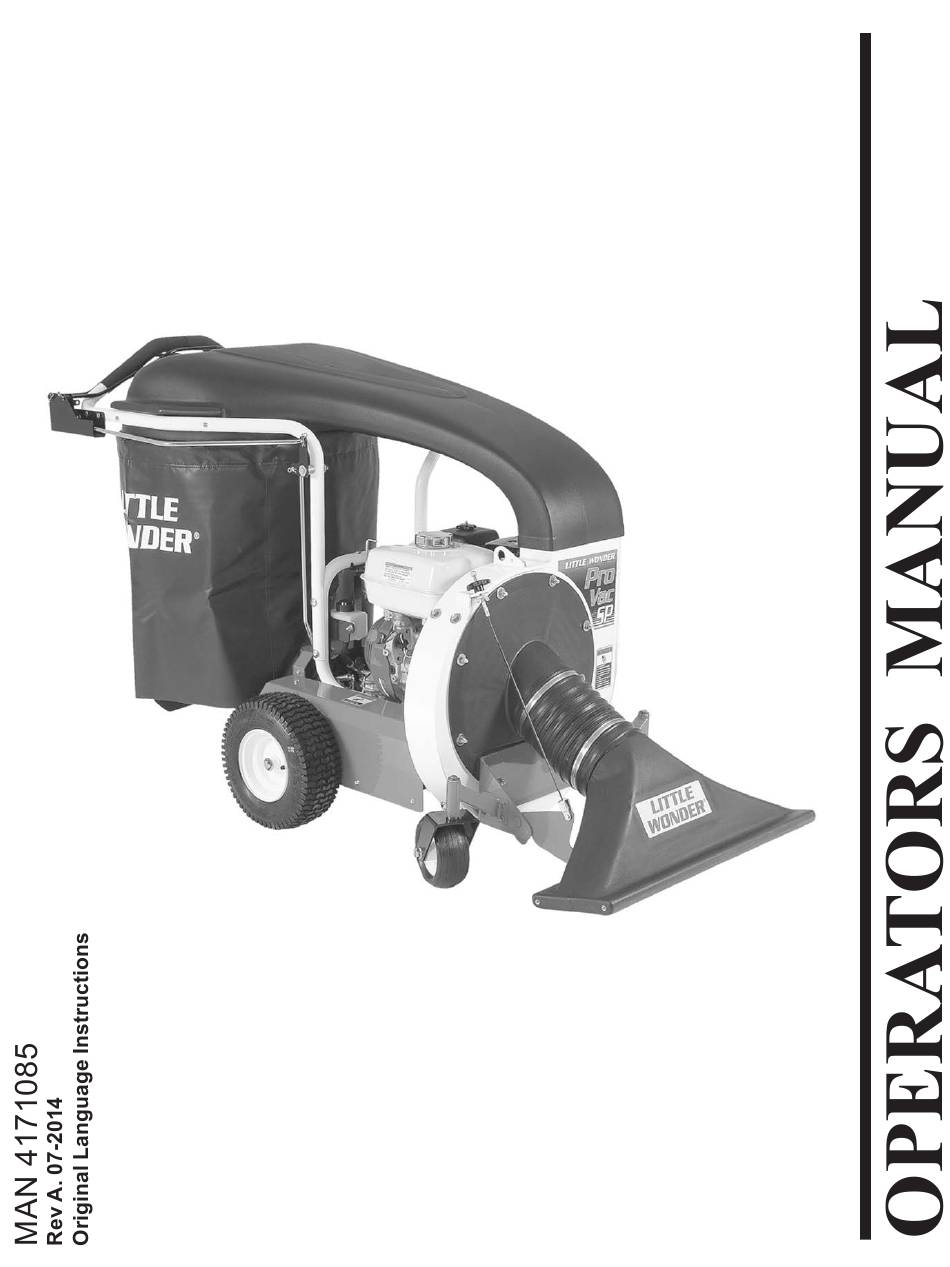

- Page 1 LITTLE WONDER ® PRO VAC SP MODELS: 5612-12-59 HONDA GX270 Parts Manual 4171084...
- Page 2 CALIFORNIA WARNING Proposition 65 Warning Diesel engine exhaust and some The engine exhaust from this product of its constituents are known to the contains chemicals known to the State State of California to cause cancer, of California to cause cancer, birth birth defects and other reproductive defects or other reproductive harm.
-
Page 3: Table Of Contents
PRO VAC SP IMPORTANT MESSAGE Thank you for purchasing this Schiller Grounds Care, Inc. product. You have purchased a world class product, one of the best designed and built anywhere. This machine comes with an Operation and Safety Manual, Parts and Service Manual, and Engine Manual. The useful life and good service you receive from this machine depends to a large extent on how well you read and understand these manuals. -
Page 4: Safety
SAFETY PRO VAC SP This symbol means: NOTICE !!! ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Schiller Grounds Care, Inc. strongly warns against,... - Page 5 SAFETY PRO VAC SP OPERATOR PREPARATION AND SITE PREPARATION AND CIRCUMSTANCES TRAINING • Evaluate the terrain to determine how to safely perform the job. Only use accessories and READ THE OPERATION & attachments approved by the manufacturer. SAFETY MANUAL •...
- Page 6 SAFETY PRO VAC SP OPERATING SAFELY INTERRUPTING OPERATION IN GENERAL • Use extra care when loading or unloading the machine Before leaving the operator’s position: into a trailer or truck. -Park on level ground. -Shut off the engine and remove the key •...
- Page 7 SAFETY PRO VAC SP OPERATING ON SLOPES MAINTENANCE SAFETY In general EXTRA CARE WHEN OPERATING ON • Maintain machine according to manufacturer's SLOPES. EVALUATE THE RISKS INVOLVED BEFORE schedule and instructions for maximum safety and OPERATING ON A SLOPE best results.
- Page 8 SAFETY PRO VAC SP Fans STORAGE SAFETY WARNING Do not straighten or weld fans. • Stop the engine and allow to cool before storing. Replace damaged or failed fans. • Drain the fuel tank outdoors only. • Store fuel in an approved container in a cool, dry place.
-
Page 9: Labels
LABELS PRO VAC SP WARNING LABELS Warning labels are an important part of the safety system incorporated in this machine. Replace labels if damaged or illegible. Rotating Parts Vacuuming - Caution Push the rear bail towards the Contact with rotating fac will cause handle to move forward. -
Page 10: Controls
CONTROLS PRO VAC SP THROTTLE (A) Controls engine speed and vacuum suction level. CHOKE (B) Move to the “CHOKE” position to apply the choke. Move to the “RUN” position to remove the choke. FUEL SHUT OFF (C) Move to the “OFF” position to shut off the fuel whenever transporting the machine by trailer or truck or during storage. -
Page 11: Operation
OPERATION PRO VAC SP PRE-OPERATION CHECK LIST BEFORE STARTING THE ENGINE OWNER’S RESPONSIBILITY • Read the operator manual and engine manual. • Be familiar with all controls, how each functions and • Review and follow all safety rules and safety decal what each operates. - Page 12 OPERATION PRO VAC SP VACUUMING REMOVING BLOCKAGES / CLOGS 1. Adjust nozzle to select height by turning the nozzle 1. Turn off the engine by moving the throttle to the control knob and secure position with wing nut. “SLOW” position. Turn the engine switch to the “OFF”...
-
Page 13: Storage
STORAGE PRO VAC SP STORAGE To prevent possible explosion or ignition of vaporized fuel, do not store equipment with fuel in tank or carburetor in an enclosure with open flame (for example, a furnace or water heater pilot). DAILY STORAGE 1. -
Page 14: Troubleshooting
TROUBLESHOOTING PRO VAC SP TROUBLESHOOTING COMMON PROBLEMS COMMON CAUSES ENGINE WILL NOT START. • Refer to the section “Operation” in this manual to verify engine starting procedure. (Check the Engine Manual for more • Check the spark plug connection. details.) •... -
Page 15: Declaration Of Conformity
Jim White Station Road Industrial Estate Managing Director Wombwell, Barnsley, South Yorkshire, S73 OBS UK Date: 30th July 2014 Declare that the machine described below: Make & Type Little Wonder Self-Propelled Lawn Vacuum Category Lawn Vacuum Model 5612-12-59 Engine Honda GX270... -
Page 16: Warranty
LITTLE WONDER will repair or replace, at its option, any part or parts of the product found to be defective in ma- terial or workmanship during the warranty period. Warranty repairs and replacements will be made without charge for parts or labor.
