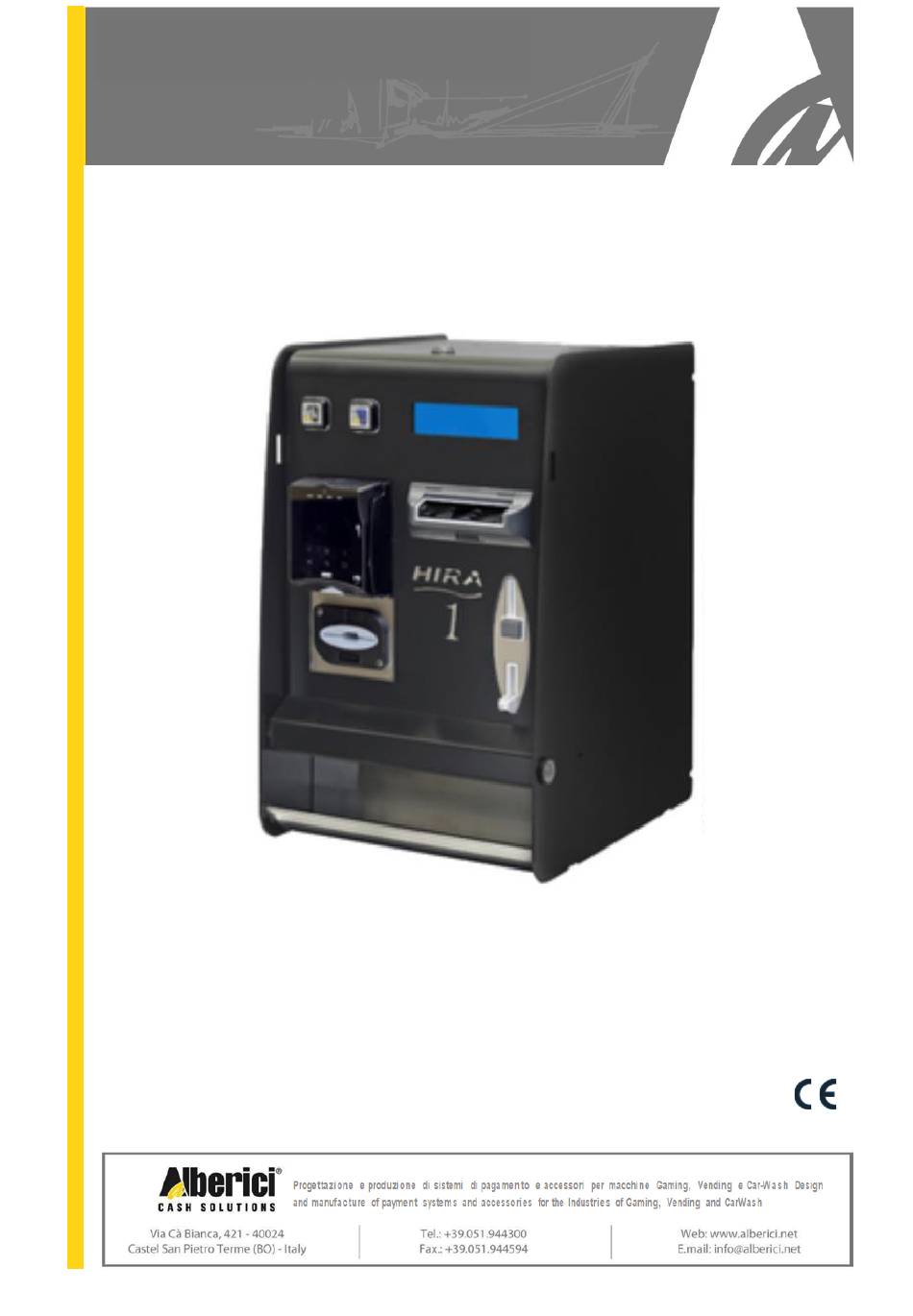

- Page 1 Hira One Money Changer Operator’s Manual Rev. 1.09 HIRA 1 Operator’s manual...
- Page 2 Alberici SpA shall not be held liable by the User for any damage, losses, or third party claims arising from any uses of the manual or of the product.
- Page 3 CONTENTS Package content..........................4 Component names ........................4 Product description ........................5 Warning ............................5 Installation ............................ 6 Operation ............................8 System configuration ......................... 10 Messages ............................ 20 Cleaning the Note Validator....................... 22 11. Disposal of the product ......................23 12.
- Page 4 We trust that you will appreciate the quality and performance of the HIRA ONE automatic Change Machine. This machine operates by cctalk protocol, the well-established serial communication mode that provides security and precision.
- Page 5 Internet. It is recommended to check carefully that the SIM card functions properly in the area. Else, Alberici provides its B2B SIM Card, that connects automatically to the most powerful network in the area. Available functions...
- Page 6 5. Installation PAY ATTENTION: IT IS ESSENTIAL TO FASTEN THE MACHINE TO A SOLID WALL BY USING EXPANSION BOLTS USE OF THE WALL SLAB (code no. HR1-013A-V06) is recommended. 27,5 27,5 All measures in mm Put the Change Machine in place and fasten it to the wall by fitting expansion bolts through the rear side 4 “x”...
- Page 7 MOUNT Prepare the tunnel for the power cable in the wall (corresponding to “Y” Hole in the slab). Fasten the slab to the wall by sturdy expansion bolts, through the 6 “X” ( 12 mm) holes. 12 Connect the cable to its socket behind the machine, and hang the latter on the 4 “W”...
- Page 8 6. Operation Two buttons are available: “OK” and “SEL”. The latter allows the user to choose the language he wants on the display (English, French, German, Italian and Spanish/Dutch are available. Ask for other languages options before placing order), or to choose among possible choices offered by the display messages.
- Page 9 If the firmware of the machine includes the Pay-Out Table option, by which the amount of tokens delivered for different levels of POS paid money can be set, the display will allow the User to choose and purchase only among the preset payment levels. See setting flow-chart in section 7.3.5.3 DISPENSING MODE SETUP.
- Page 10 Insert Press INITIALIZE ACCOUNTS Service or green button KEYS Master Card/Key Notes IN Insert key 0,00 € to initialize Insert User Card/Key Coins IN DO NOT REMOVE 0,00 € THE KEY….. (*) If the Card/Key is not compatible (i.e. its password is different from the password of Wait ……...
- Page 12 7. System configuration 7.1 Default setup This Money-Change machine is preset by default as follows (unless requested for different setup): Control Board Parameters Pay-out mode = AUTOMATIC Bonus = DISABLED Level sensors = DISABLED € 2.00 = ENABLED Hopper S11 Parameters Preset by default to 0,50 –...
- Page 13 MENU MAIN STRUCTURE CHANGEONE Promo EXIT SHOW MENU PERIPHERAL UNITS SHOW ACCOUNTS Notice: PIN is requested RESET access some sub-menu ACCOUNTS settings. PERIPHERAL UNITS SET UP EMPTY OUT HOPPER (*) only available with HopperOne, RESTORE DEFAULT and only if preset for: CONFIGURATION DISPENSING MODE TOKENS...
- Page 14 7.3.2 Show peripheral units This menu allows checking the state of the , for instance: PERIPHERAL UNITS HOPPER 1 NOTE VALIDATOR OIN ACCEPTOR EMPTY CONNECTED DISCONNECTED 7.3.3 Show accounts This menu allows to check the total and the partial values of cashed and paid amounts. SHOW RESET ACCOUNTS...
- Page 15 7.3.5 Setting up the peripheral units This menu allows to set up the denominations accepted by the note validator and by the coin acceptor, as well as the value of the coins/tokens dispensed. It also permits to set the change mode as either automatic or manual, and to enable/disable the full/void sensors of the hoppers.
- Page 16 7.3.5.2 C OIN SELECTOR SETUP The board automatically detects the presence of the coin selector during initial check. Among the accepted coins (0.05-to-2 €), the following ones get enabled by default: 0.50 € - 1.00 € - 2.00 €. To modify this condition, press OK to get to the first option (ex. 2 €) and highlight it, then press UP state.
- Page 17 7.3.5.3 (only if the ACS reader is built-in) ASHLESS If the unit is equipped with the ACS reader, it is possible to get access to useful functions: Master Card/Key Service Card/Key Operator Card/Key Operation (black) for the owner (white) for the manager (yellow) Initialize RFID Card/Keys YES (no Master Card/Ky) NO...
- Page 18 7.3.5.4 GSM/GPRS When the GSM/GPRS kit is installed, it gets detected during self-configuration, and its parameters must be set up for operation. SMS functions will not be working on Hermes GPS/GSM module; remote control will then be managed only through the Argo Portal or through the Argo App. Insert name: Insert Name: LUCKY HALL...
- Page 19 character. There are 16 characters in the machine name, and 10 in the User Code. After confirming the last character, the name or the /code you have typed gets automatically saved. In case you have purchased your subscription(s) when buying the machine (or the Hermes GSM module), no need to enter the User Code;...
- Page 20 delivered for different levels of POS paid money can be set, the display will allow the User to choose and purchase only among the preset payment levels. See setting flow-chart in section 7.3.5.3 DISPENSING MODE SETUP. Pay attention: Pay-out Table will work in Automatic Mode only! 7.3.9 Language setup LANGUAGE Seleziona lingua...
- Page 21 Refill can take place when unit is empty or not. Allows to record the amount introduced manually. MANUAL REFILL MANUAL REFILL SET UP SET UP MANUAL REFILL MANUAL REFILL Confirm?..Confirm?..(*) Shows “€” when set for coins € / Pcs Enter filled Total Shows “Pieces”...
- Page 22 8. Messages Messages on the display 8.1.1 Faulty operation: CHANGEONE The following warning: OUT OF SERVICE is accompanied by the system check. For instance, the following sliding warnings: ...COIN ACCEPTOR… TOR… …. HOPPE R N° 1… …. HOPPE PTOR ....NOT ROR ….
- Page 23 Messages from the Note validator 8.2.1 BillyOne / OryOne Validator During operation, the amount of consecutive red flashes produced by the entry slot indicates the possible malfunctions (see chart below): no of red flashes Description Validator is open Jammed banknote Fraud attempt detected Adjust optic sensors Stacker full (OryOne Only)
- Page 24 9. Cleaning the Note Validator WARNING! Do switch power off before opening the machine! Manual cleaning The ability of acceptance may decrease due to the accumulation of dust and cellulose dust released by banknotes during transit, or because of residues or sprays, which may spread on the detecting sensors and on transmission parts.
- Page 25 - detailed report of the problem found and the circumstances in which it occurs. Before sending the product, please get in touch with your Dealer or with Alberici S.p.a. (+39 051 944300); very malfunctions can be fixed via a simple phone call, saving you costs and time.
- Page 26 ATTACHMENT: Spare parts List...
- Page 31 NOTICE Alberici S.p.A. reserves the right to change the features and the specifications to the equipment described at any time and without notice, in the pursuit of the incessant improvement of its products.
- Page 32 Progettazione e produzione di sistemi di pagamento, accessori per videogames e macchine vending Design and manufacture of payment systems, accessories for videogames and vending machines Via Ca’ Bianca 421 Tel. + 39 051 944 300 http://www.alberici.net 40024 Castel San Pietro Fax. + 39 051 944 594 Terme (BO) – ITALY...
