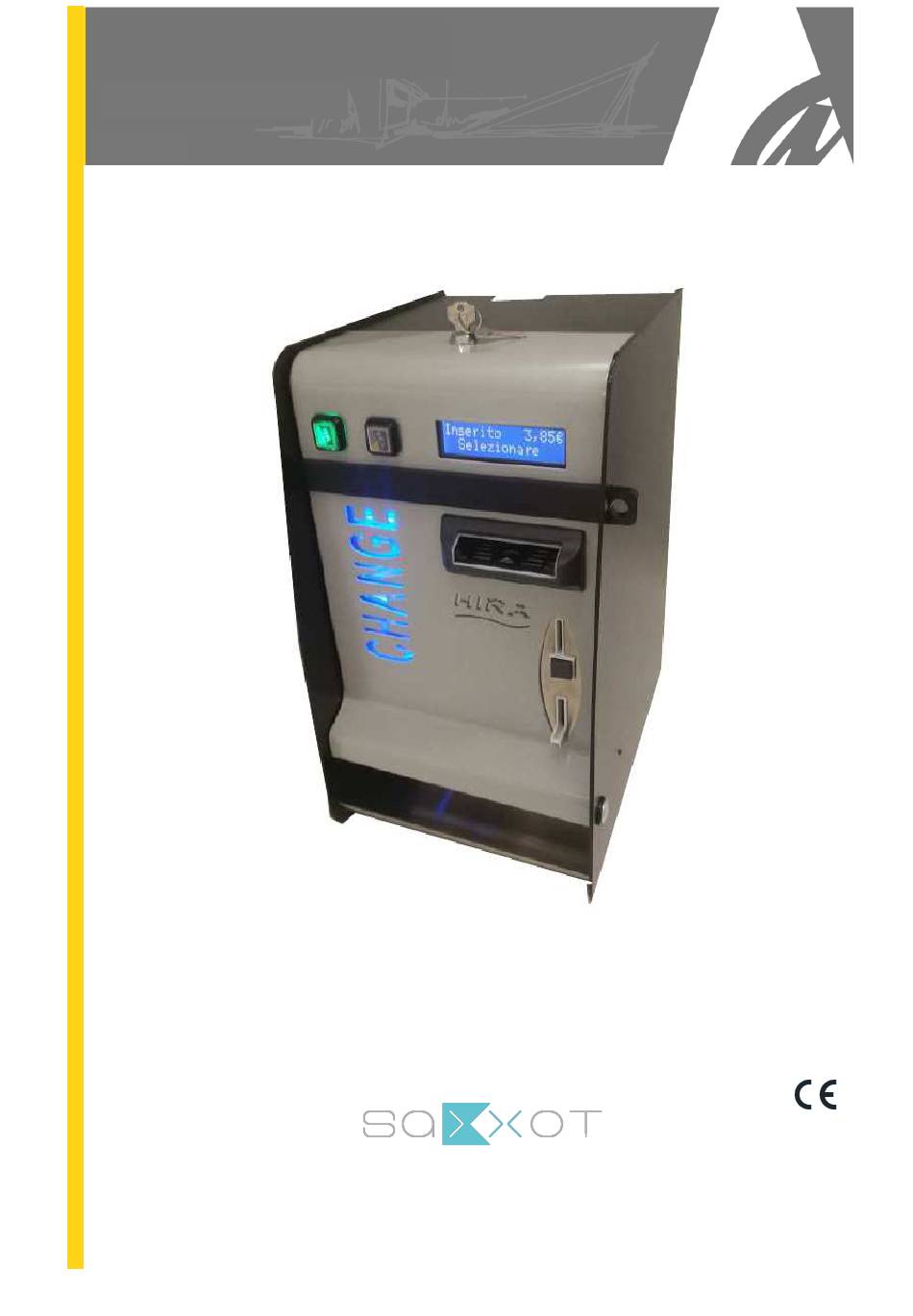

- Page 1 Hira One Money Changer Operator’s Manual Rev. 1.06 Operator’s manual SaXXot Deutschland GmbH Zeppelinstrasse 71, DE 81669 München Telefon: +49 89 4141446 00 - Telefax: +49 89 4141446 75 E-Mail: info@SaXXot.de - Internet: www.SaXXot.de www.saxxot.de...
- Page 2 NOTA This manual has been prepared with the utmost care. Nevertheless, it is not possible to assure at any time the exact correspondence of the descriptions to the product features. The manufacturer shall not be held liable by the User for any damage, losses, or third party claims arising from any uses of the manual or of the product .
-
Page 3: Table Of Contents
SOMMARIO Package content..........................4 Component names ........................4 Product description ........................5 Warning ............................5 Installation ............................ 6 Operation ............................8 System configuration ........................8 Messages ............................ 18 Cleaning the Note Validator ...................... 20 11. Disposal of the product ......................21 12. -
Page 4: Package Content
We trust that you will appreciate the quality and performace of the HIRA ONE automatic Change Machine. This machine operates by cctalk protocol, the well-established serial communication mode that provides security and precision. -
Page 5: Product Description
Operation temperature: Installation: , or wall-mount Indoor - on desktop, or on floorstand Coin capacity: HIRA ONE (S11): 2000 (0,50 o 1 €), 1800 (2 €) HIRA D (AH4): 1800 (mixed denominations) Components: Power supply unit Power switching 340W Control board... -
Page 6: Installation
5. Installation PAY ATTENTION: IT IS ESSENTIAL TO FASTEN THE MACHINE TO A SOLID WALL BY USING EXPANSION BOLTS USE OF THE WALL SLAB (code nr. HR1-013A-V06) is recommended. 27,5 27,5 All measures in mm Put the Change Machine in place and fasten it to the wall by fitting expansion bolts through the rear side 4 “x”... - Page 7 MOUNT Prepare the tunnel for the power cable in the wall (corresponding to “Y” Hole in the slab). Fasten the slab to the wall by sturdy expansion bolts, through the 6 “X” (Φ 12 mm) holes. Φ 12 Connect the cable to its socket behind the machine, and hang the latter on the 4 “W”...
-
Page 8: Operation
6. Operation Two buttons are available: “OK” and “SEL”. The latter allows the user to choose the language he wants on the display (English, French, German, Italian and Dutch are available. Ask before placing order for other languages options). This type of operation varies depending on whether the operation mode is set to A or to M UTOMATIC... - Page 9 7.3 Menu functions 7.3.1 Surf the Menu: To enter the menu and navigate it, make use of the 3 keys located on the board rear side. PROG CMS board Rear view P4/7 RGB3 RGB2 RGB1 CC12 24 12 GND Get access to the menu by holding the three buttons pressed at the same time for 5 seconds. confirm selection navigate menu UP and DOWN;...
- Page 10 7.3.2 MENU MAIN STRUCTURE CHANGEONE Promo EXIT SHOW MENU PERIPHERAL UNITS SHOW ACCOUNTS Notice: PIN is requested RESET access some sub-menu ACCOUNTS settings. PERIPHERAL UNITS SET UP EMPTY OUT HOPPER (*) only available with HopperOne, RESTORE DEFAULT and only if preset for: CONFIGURATION DISPENSING MODE TOKENS...
- Page 11 7.3.3 Show peripheral units This menu allows to check the state of the , for instance: PERIPHERAL UNITS HOPPER 1 NOTE VALIDATOR OIN ACCEPTOR ecc. ecc. EMPTY CONNECTED DISCONNECTED 7.3.4 Show accounts This menu allows to check the total and the partial values of cashed and paid amounts. Questo menu permette di leggere i totali e i parziali dell’incassato, dell’erogato, dei crediti agati SHOW RESET...
- Page 12 7.3.6 Setting up the peripheral units This menu allows to set up the denominations accepted by the note validator and by the coin acceptor, as well as the value of the coins/tokens dispensed. It also permits to set the change mode as either automatic or manual, and to enable/disable the full/void sensors of the hoppers.
- Page 13 7.3.6.2 C OIN SELECTOR SETUP The board automatically detects the presence of the coin selector during initial check. Among the accepted coins (0.05-to-2 €), the following ones get enabled by default: 0.50 € - 1.00 € - 2.00 €. To modify this condition, press OK to get to the first option (ex. 2 €) and highlight it, then press UP or DOWN to reverse its state.
- Page 14 7.3.6.4 GSM/GPRS When the GSM/GPRS kit is installed, it gets detected during self-configuration, and its parameters must be set up for operation. Insert Name: Insert name: Name of Machine LUCKY HALL Please wait ……. Cellphone Nr [1]: Cellphone Nr [1]: Set enabled >_<...
- Page 15 (**) By buttons + and - , locate the number you want to write, and press OK to confirm it; the cursor will automatically move to the next character. Once confirming the last digit, also confirm the whole number entered: it is proposed to enter the second number, and finally the third.
- Page 16 7.3.9 Bonus Set Up This function will operate only if at least the hopper nr. 1 is preset for paying tokens. Take care to set up all hoppers parameters. Bonus function is disabled by default. LEV EURO LEV EURO Bonus BONUS 1€...
- Page 17 To modify the existing PIN, press OK, and digit the old PIN code: to digit each code figure, first use keys UP and DOWN to set each figure, then confirm it by OK. Once the 4 figure has been confirmed, confirm by OK the whole old PIN: Enter PIN New PIN MODIFY PIN...
-
Page 18: Messages
7.3.14 Enable / Disable remaining Credit Amount of remaining (i.e. unpaid) credit can be reset when machine is switched off. Such amount gets automatically recorded in the Accounts (sez. 7.3.4). Reset of Remaining Cr. Reset of Remaining Cr. ENABLE / DISABLE Reset of Remaining Cr. - Page 19 Messages from the Note validator 8.2.1 BillyOne / OryOne Validator During operation, the amount of consecutive red flashes produced by the entry slot indicates the possible malfunctions (see chart below): nr of red flashes Description Validator is open Jammed banknote Fraud attempt detected Adjust optic sensors Stacker full (OryOne Only)
-
Page 20: Cleaning The Note Validator
9. Cleaning the Note Validator WARNING! Do switch power off before opening the machine! Manual cleaning The ability of acceptance may decrease due to the accumulation of dust and cellulose dust released by banknotes during transit, or because of residues or sprays, which may spread on the detecting sensors and on transmission parts. -
Page 21: Disposal Of The Product
Clearing jammed banknotes CAUTION! Turn off power before opening its upper lid. Open the top cover by pressing D and pull out the stuck banknote (as well as any other objects that will hinder the transit). 11. Disposal of the product WARNING! DISPOSE OF ACCORDING TO THE GOVERNING LAW IN YOUR COUNTRY! This equipment may not be treated as household waste. - Page 22 ATTACHMENT: Spare parts List www.saxxot.de...
- Page 23 www.saxxot.de...
- Page 24 www.saxxot.de...
- Page 25 www.saxxot.de...
- Page 26 www.saxxot.de...
- Page 27 NOTA Alberici S.p.A. reserves the right to change the features and the specifications to the equipment described at any time and without notice, in the pursuit of the incessant improvement of its products. www.saxxot.de...
- Page 28 SaXXot Deutschland GmbH Zeppelinstrasse 71, DE 81669 München Telefon: +49 89 4141446 00 - Telefax: +49 89 4141446 75 E-Mail: info@SaXXot.de - Internet: www.SaXXot.de www.saxxot.de...
