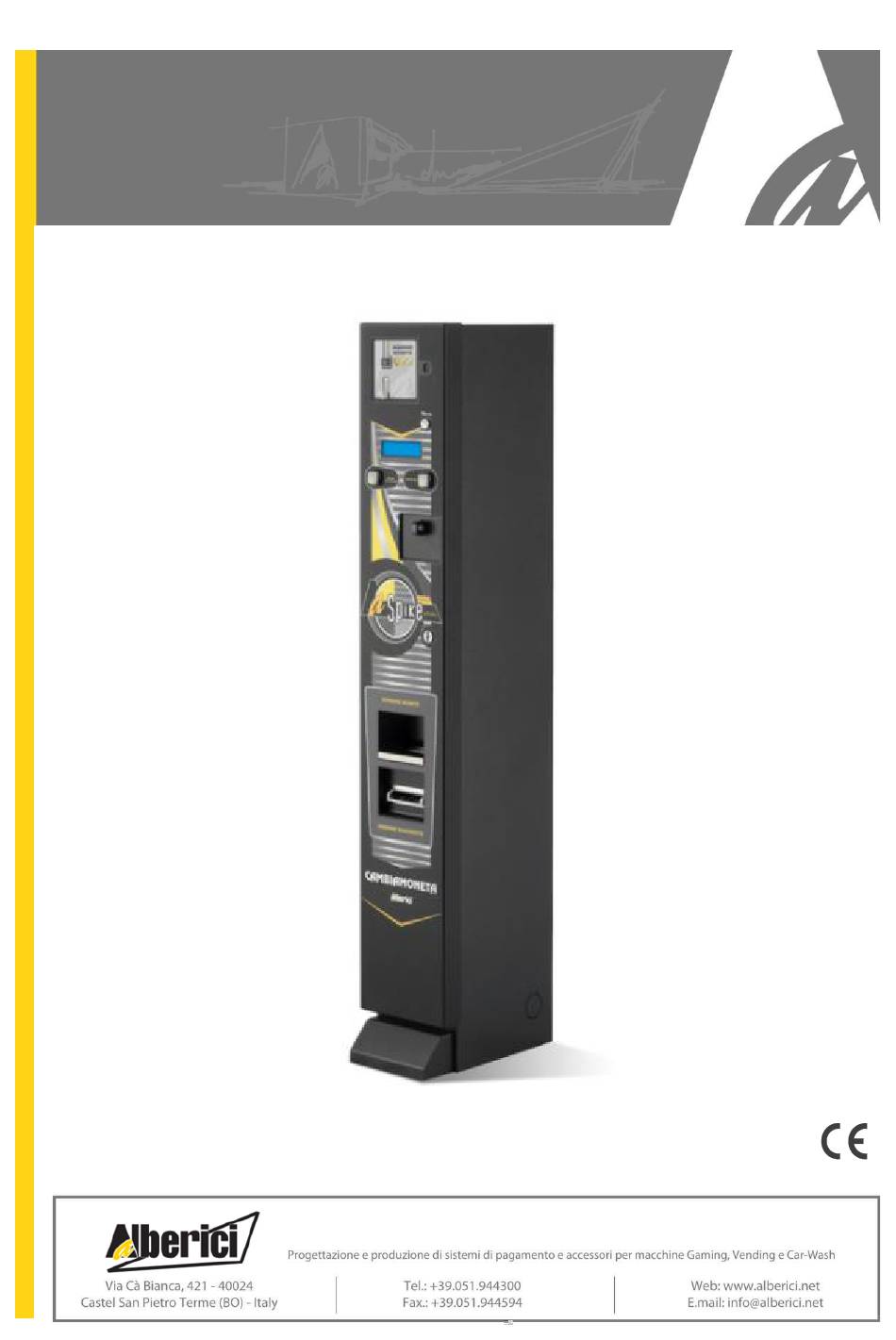

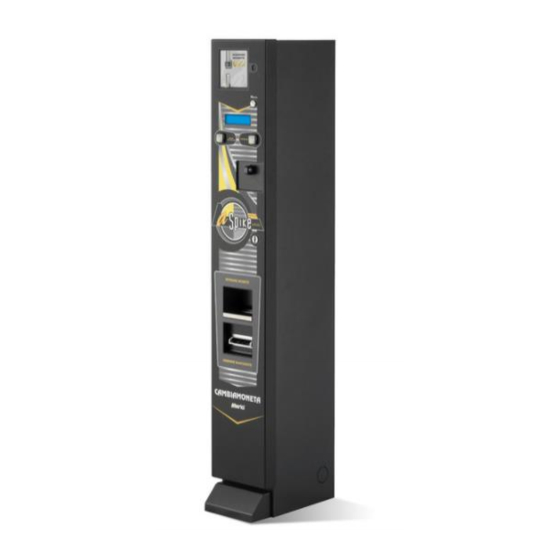

Spike CM Arm
Operator's Manual
Rev. 1.04 EN
Progettazione e produzione di sistemi di pagamento e accessori per macchine Gaming, Vending e Car-Wash
Design and manufacture of payment systems and accessories for the Industries of Gaming, Vending and CarWash
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spike CM Arm and is the answer not in the manual?

Questions and answers

Related Manuals for Alberici Spike CM Arm

Summary of Contents for Alberici Spike CM Arm

  • Page 1 Spike CM Arm Operator’s Manual Rev. 1.04 EN Progettazione e produzione di sistemi di pagamento e accessori per macchine Gaming, Vending e Car-Wash Design and manufacture of payment systems and accessories for the Industries of Gaming, Vending and CarWash...
  • Page 2 Alberici S.p.A. reserves the right to modify, without prior notice and in any way, any part of this manual and the technical specifications of this product, as part of the continuous pursuit of...

  • Page 3: Table Of Contents

    CONTENTS Package content..........................4 Components description ....................... 5 Product description ........................5 Warning ............................6 Installation ............................ 6 Operation ............................7 System configuration ........................8 Messages ............................ 15 Cleaning of the Note Validator ....................20 11. Disposal of the product ....................... 22 12.

  • Page 4: Package Content

    Please read carefully this handbook, to obtain the most from your machine. 1. Package content The package contains: 1. the Alberici SPIKE Change machine 2. 1 pair of keys 3. the power cable (see inside of money box) 4. the instruction manual (this manual) This product has been packed with the utmost care.

  • Page 5: Components Description

    (*) The system requires that the B-to-B Alberici SIM card is inserted into the Hermes module SIM slot, and that a subscription is entered into the ARGO Portal, in order to control the machine via the Internet.

  • Page 6: Warning

    Available functions - Change of notes and coins into 1 denomination coins/tokens, or 2 denominations at User’s choice - Control of accounts via display (by on-board keys) - Programmable via menu (by on-board keys) - Change of display language by external “LANGUAGE/SEL+” pushbutton, at User’s choice. 4.

  • Page 7: Operation

    REPARATION FOR PAY ATTENTION FILL THE HOPPERS ONLY WHEN THE MACHINE IS OFF Open the door and locate extensions capacity on top of the hopper. Unlock the latch A (white slide) of the cover and slide the latter fully out towards the outside, until is positioned as a pilot chute: pour into the hopper the coins or tokens to be dispensed as change.

  • Page 8: System Configuration

    - when a note or coin is inserted (or when the value of one token is reached), ANUAL the button(s) will lit up green . Press the button corresponding to the change (token) desired. If the machine is set to Tokens+Change, it will be possible to choose the desired number of tokens.
  • Page 9 System connections al CONNETTORE alla GETTONIERA POWER IN / CCT sulla scheda al LETTORE BANCONOTE HOPPER al LETTORE di dall’ALIMENTATORE CARD/CHIAVETTE POWER IN = dal Concentratore: +12/24 V e DATI CCTALK 4 poli [1=24V, 2=12V, 3=GND, 4=CCT] P1 = PULSANTE OK 2x3 poli [Pin 1=MICRO N.O.
  • Page 10 MENU MAIN STRUCTURE CHANGEONE Promo EXIT SHOW MENU PERIPHERAL UNITS SHOW ACCOUNTS Notice: PIN is requested RESET access some sub-menu ACCOUNTS settings. PERIPHERAL UNITS SET UP EMPTY OUT HOPPER (*) only available with HopperOne, RESTORE DEFAULT and only if preset for: CONFIGURATION DISPENSING MODE TOKENS...
  • Page 11 7.3.2 Show peripheral units This menu allows checking the state of the , for instance: PERIPHERAL UNITS HOPPER 1 NOTE VALIDATOR OIN ACCEPTOR EMPTY CONNECTED DISCONNECTED 7.3.3 Show accounts This menu allows to check the total and the partial values of cashed and paid amounts. SHOW RESET ACCOUNTS...
  • Page 12 7.3.5 Setting up the peripheral units This menu allows to set up the denominations accepted by the note validator and by the coin acceptor, as well as the value of the coins/tokens dispensed. It also permits to set the change mode as either automatic or manual, and to enable/disable the full/void sensors of the hoppers.
  • Page 13 7.3.5.2 C OIN SELECTOR SETUP The board automatically detects the presence of the coin selector during initial check. Among the accepted coins (0.05-to-2 €), the following ones get enabled by default: 0.50 € - 1.00 € - 2.00 €. To modify this condition, press OK to get to the first option (ex. 2 €) and highlight it, then press UP state.
  • Page 14 7.3.5.3 (only if the ACS reader is built-in) ASHLESS If the unit is equipped with the ACS reader, it is possible to get access to useful functions: Master Card/Key Service Card/Key Operator Card/Key Operation (black) for the owner (white) for the manager (yellow) Initialize RFID Card/Keys YES (no Master Card/Ky) NO...
  • Page 16 7.3.5.4 GSM/GPRS When the GSM/GPRS kit is installed, it gets detected during self-configuration, and its parameters must be set up for operation. SMS functions will not be working on Hermes GPS/GSM module; remote control will then be managed only through the Argo Portal or through the Argo App. Insert name: Insert Name: LUCKY HALL...
  • Page 17 (*) By the buttons + and - , locate the letter/digit, and press the OK button to confirm your choice; the cursor will automatically move to the next character. There are 16 characters in the machine name, and 10 in the User Code. After confirming the last character, the name or the /code you have typed gets automatically saved.
  • Page 18 7.3.8.1 If the firmware of the machine includes the Pay-Out Table option, by which the amount of tokens delivered for different levels of POS paid money can be set, the display will allow the User to choose and purchase only among the preset payment levels. See setting flow-chart in section 7.3.5.3 DISPENSING MODE SETUP.
  • Page 19 7.3.12 Manual Refill Set Up (not available in all units) Refill can take place when unit is empty or not. Allows to record the amount introduced manually. MANUAL REFILL MANUAL REFILL SET UP SET UP MANUAL REFILL MANUAL REFILL Confirm?..Confirm?..

  • Page 20: Messages

    1. Messages Display contrast In case the contrast between the characters displayed and the background is not sharp enough ot too sharp, adjust as follows: a. switch the CPU pcb on by holding down the “+” and “-“ buttons at the same time until the display starts flashing, then release the buttons;...
  • Page 21 Messages from the Note validator 8.2.1 BillyOne / OryOne Validator During operation, the amount of consecutive red flashes produced by the entry slot indicates the possible malfunctions (see chart below): no of red flashes Description Validator is open Jammed banknote Fraud attempt detected Adjust optic sensors Stacker full (OryOne Only)

  • Page 22: Cleaning Of The Note Validator

    2. Cleaning the Note Validator WARNING! Do switch power off before opening the machine! Manual cleaning The ability of acceptance may decrease due to the accumulation of dust and cellulose dust released by banknotes during transit, or because of residues or sprays, which may spread on the detecting sensors and on transmission parts.

  • Page 23: Disposal Of The Product

    - detailed report of the problem found and the circumstances in which it occurs. Before sending the product, please get in touch with your Dealer or with Alberici S.p.a. (+39 051 944300); very malfunctions can be fixed via a simple phone call, saving you costs and time.
  • Page 24 ATTACHMENT: Spare parts List...
  • Page 29 NOTICE Alberici S.p.A. reserves the right to change the features and the specifications to the equipment described at any time and without notice, in the pursuit of the incessant improvement of its products.
  • Page 30 Progettazione e produzione di sistemi di pagamento, accessori per videogames e macchine vending Design and manufacture of payment systems, accessories for videogames and vending machines Via Ca’ Bianca 421 Tel. + 39 051 944 300 http://www.alberici.net 40024 Castel San Pietro Fax. + 39 051 944 594 Terme (BO) – ITALY...
