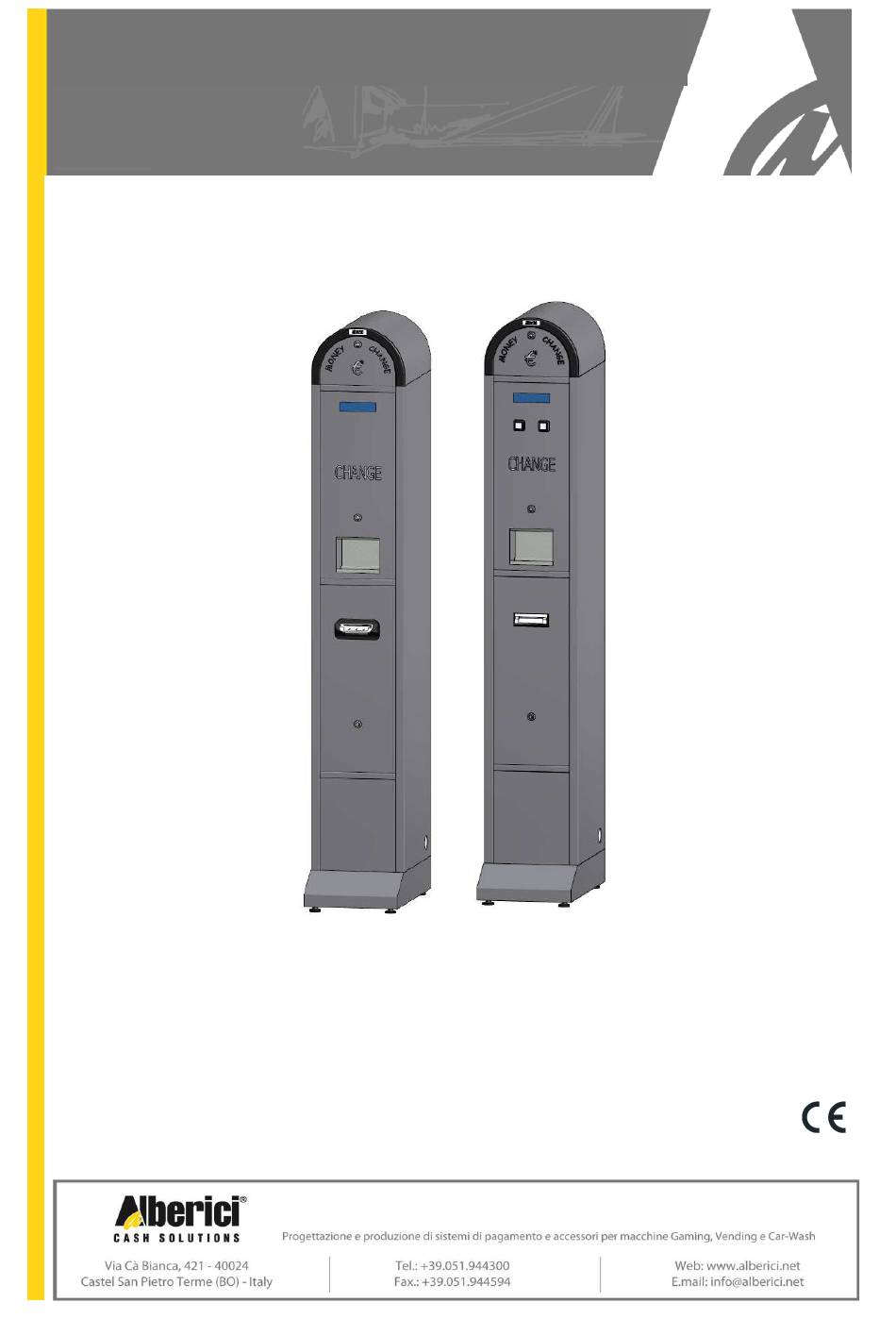

- Page 1 HammerOne S11 Money Changer Operator’s manual Rev. 1.01 HAMMER 1 ONE HAMMER 1 CD + CD 1 HopperOne 2 HopperCD HAMMER 1 CD 1 HopperCD Operator’s Manual...
- Page 2 La Alberici S.p.A. declina ogni e qualsivolglia responsabilità verso l’utilizzatore con riferimento a danni, perdite, o reclami di terze parti, conseguenti all’uso del prodotto o causate da errate interpretazioni del presente manuale. Alberici S.p.A. si riserva il diritto di modificare, senza avviso, in qualunque modo qualunque parte del presente manuale.
-
Page 3: Table Of Contents
CONTENTS Package content..........................4 Component names ........................4 Product description ........................5 Warning ............................5 Installation ............................ 6 Operation ............................8 System configuration ........................9 Messages ............................ 16 Maintenance of the note validator ....................17 11. Disposal of the product ....................... 19 12. -
Page 4: Package Content
Please read carefully this handbook, to obtain the most from your HAMMER 1. 1. Package content The package contains: 1. the Alberici HAMMER 1 Change machine 2. 3 pairs of keys 3. the power cable (see inside of money box) 4. -
Page 5: Product Description
3. Product description General data Size: 260 mm (l) x 1600 mm (h) x 376 mm (p) [480 mm at the foot] Weight: 53 Kg Voltage: 230 Vac - 50 Hz Nominal power: 140 W max Operation temperature: 0°C ÷ +50°C, humidity min. 20% max. 85% non condensing Installation: wall-mount, indoor Coin capacity:... -
Page 6: Installation
5. Installation 5.1 Positioning and switching on PAY ATTENTION: IT IS ESSENTIAL TO FASTEN THE MACHINE TO A SOLID WALL BY USING EXPANSION BOLTS A, B, C, D, E, F = Holes preset for fastening All measures in mm Put the Change Machine in place and fasten it to the wall by tightening expansion bolts through the holes preset in the rear side. - Page 7 5.2 Control board connections control board Rear view (shell side) Pin 1. +24V Pin 2. +12V [POWER SUPPLY] PWR IN Pin 3. GND 24 12 GND Pin 1. DATA Pin 2. GND [AL66COIN ACCEPTOR] CCT12 Pin 3. NC Pin 4. +12 V [HOPPERONE S11 / HOPPERCD, HOPPERCD DISCRIMINATOR / HOPPER AH4] Pin 1.
-
Page 8: Operation
6. Operation HAMMER1 ONE e HAMMER1 CD: slip the note, to be exchanged in coins or tokens, into the relevant acceptor slot: the machine will automatically pay-out the corresponding coins or tokens. NOTICE: the unit will not allow token accumulation, therefore token bonus will not be available unless the exact required amount has been introduced altogether in one shot. -
Page 9: System Configuration
7. System configuration 7.1 Default menu The HAMMER 1 is preset by default as follows (unless requested for different setup): Board Parameters Pay-out mode = AUTOMATIC Bonus = DISABLED Level sensors = DISABLED HopperOne or CD [ccTalk] Parameters Hopper number Coin value = €... - Page 10 7.2.2 Main structure of the Menu: CHANGEONE Promo EXIT SHOW MENU PERIPHERAL UNITS SHOW ACCOUNTS RESET ACCOUNTS PERIPHERAL UNITS SET UP EMPTY OUT HOPPER RESTORE DEFAULT CONFIGURATION PROMO (only available if preset for: BONUS DISPENSING MODE TOKENS LANGUAGE SETUP EXIT MODIFY PIN MENU...
- Page 11 7.2.3 Show peripheral units This menu allows to check the state of the , for instance: PERIPHERAL UNITS HOPPER 1 NOTE VALIDATOR OIN ACCEPTOR ecc. ecc. EMPTY CONNECTED DISCONNECTED 7.2.4 Show accounts Questo menu permette di leggere i totali e i parziali dell’incassato, dell’erogato, dei crediti agati SHOW RESET ACCOUNTS...
- Page 12 7.2.6 Peripheral units set up It is possible to configurate by this menu the cctalk coin acceptor, the ccTalk note validator, the ccTalk hoppers, the pay-out mode and the keys mode. ERIPHERAL UNITS EMPTY OUT SETUP HOPPERS 5 < 10 > 20 50 100 5 10 <...
- Page 13 - Coin selector setup (not available in this machine) Among the accepted coins (0.05-to-2 €), the following ones get enabled by default: 0.50 € - 1.00 € - 2.00 €. To modify this condition, press OK to get to the first option (ex. 2 €) and highlight it, then press UP or DOWN to reverse its state.
- Page 14 7.2.8 R ESTORE DEFAULT CONFIGURATION To use this sub-menu it is necessary to digit the PIN code. The following message will briefly appear DEFAULT CONFIG RESTORE DEFAULT EnterPIN after the PIN has been entered, then the RESTORED CONFIGURATION 0… message DEFAULT CONFIGURATION will be shown again.
- Page 15 7.2.11 L ANGUAGE SETUP LANGUAGE SETUP Seleziona lingua ITALIANO Choose your language ENGLISH Waehlen Ihre Sprache DEUTSCH 7.2.12 M ODIFY The PIN code allows to get access to the discretional menus of the system. The PIN code is made up by 4 figures (each of them from 0 to 9), so that there are 10,000 combinations available.
-
Page 16: Messages
8. Messages Messages on the display CHANGEONE The following warning: OUT OF SERVICE is accompanied by the system check. For instance, the following sliding warnings: ...COIN ACCEPTOR… NIERA …. PTOR …. …. NOT …. LET ORE … TOR… …. HOPPE …. -
Page 17: Maintenance Of The Note Validator
8.2.2 OryOne Note Validator During operation, the amount of consecutive red flashes produced by the entry slot indicates the possible malfunctions (see chart below): nr. of red Message description flashes Validator has been opened Jammed banknote Attempted fraud detected Adjust optic sensor Stacker is full: remove banknotes or replace it by an empty one Low voltage Check operation of the encoder + motor of the validator... - Page 18 2. Move up the slide button D (left side of the BillyOne – see page. 6) and, while holding it up, pull the cover lid backwards; then lift the cover up and rotate it 180° around the flat cable. 3. Gently wipe the sensors with a clean, lint-free cloth, or a cotton swab or with a small sponge, possibly moistened with isopropyl alcohol.
-
Page 19: Disposal Of The Product
- detailed report of the problem found and the circumstances in which it occurs. Before sending the product, please get in touch with your Dealer or with Alberici S.p.a. (+39 051 944300); very malfunctions can be fixed via a simple phone call, saving you costs and time. -
Page 20: Customer Service
13. Customer Service Alberici S.p.a. will be pleased to offer all the necessary information on use, ordinary maintenance and technical service. Please call (+39) 051 944300 and specify if your request concerns information on use or technical support. - Page 23 NOTA La Alberici S.p.A. si riserva il diritto di apportare modifiche alle specifiche tecniche dell’apparecchiatura descritta in qualunque momento e senza preavviso, nell’ambito del perseguimento del miglioramento continuo del proprio prodotto.
- Page 24 Progettazione e produzione di sistemi di pagamento, accessori per videogames e macchine vending Design and manufacture of payment systems, accessories for videogames and vending machines Via Ca’ Bianca 421 Tel. + 39 051 944 300 http://www.alberici.net 40024 Castel San Pietro Fax. + 39 051 944 594 Terme (BO) – ITALY...
