Installation and Assembly - Solid•Point
Read instruction sheet before you start
installation and assembly.
• Failure to install M5 penta-pin screw (D) can cause the mount to fall!
Applications
Installation of PLP adapter plate ................................. Step 3
Installation of LC adapter plate ................................... Step 4
™
Plasma Ceiling Mount
WARNING
EXTENSION COLUMN
(SOLD SEPARATELY)
Model: PLB 1
Maximum Load Capacity:
300 lb (136 kg)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PEERLESS Solid-Point PLB 1
Summary of Contents for PEERLESS Solid-Point PLB 1
- Page 1 Installation and Assembly - Solid•Point ™ Plasma Ceiling Mount Model: PLB 1 Read instruction sheet before you start Maximum Load Capacity: installation and assembly. 300 lb (136 kg) WARNING • Failure to install M5 penta-pin screw (D) can cause the mount to fall! Applications Installation of PLP adapter plate .........
- Page 2 Before you start check the parts list to insure all of the parts shown are included. Parts List Description Qty. Part Number A interface bracket 200-1090 B tilt bracket 200-1552 C M10 x 1.5 x 15 mm penta-pin ™ screw 520-9263 D M5 x .8 x 10 mm self-tapping penta-pin screw 505-9010...

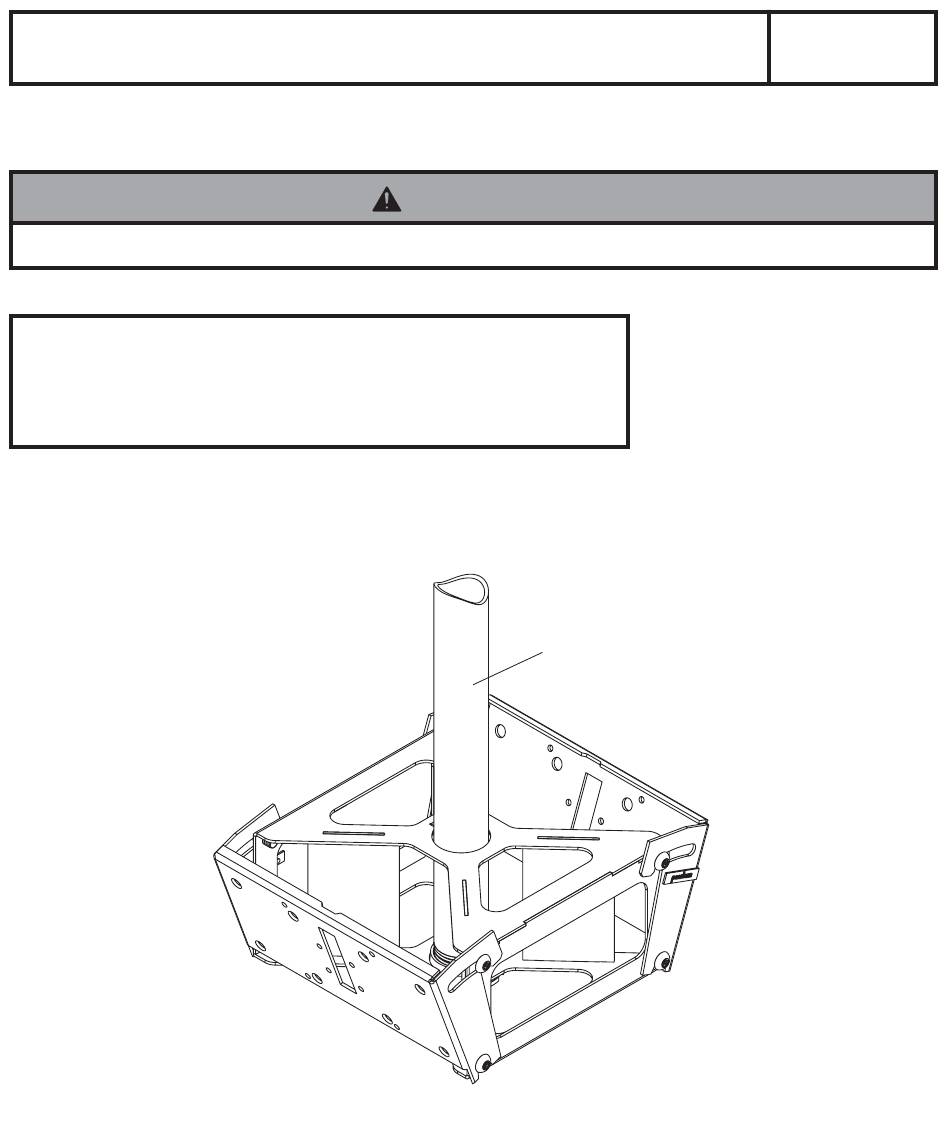

- Page 3 Note: Hole with notch indicates bottom of interface bracket as shown in detail 1. Insert interface bracket (A) onto extension column (sold separately) and attach using fiber washer (H) and retaining collar (I) as shown (right). IMPORTANT: Retaining collar (I) requires a M5 x 10 mm penta-pin screw (D). Carefully EXTENSION thread retaining collar (I) onto end of extension column.
- Page 4 NOTE: Refer to adapter plate instruction sheet for attachment of adapter plate to screen before proceeding with step 3. If your adapter plate has an aluminum race attached to it, remove before proceeding and discard race. It is not used with this product. Installation of PLP Adapter Plates Attach tilt bracket (B) to each adapter plate using four M10 x 15 mm penta-pin screws (C).
- Page 5 Hang each plasma screen on interface bracket (A) as shown in Illustration B. Adjust tilt as desired for each screen and tighten eight M10 x 15 mm penta-pin screws (C) on interface bracket (A) using M10 x 2" penta-pin tool (F). After both screens are installed, lock interface bracket (A) into place using one #8 x 3/8"...
