Thelin Hearth Products
How To
Replace the Igniter
in the Gnome Pellet Stove
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Gnome and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thelin Gnome

Summary of Contents for Thelin Gnome

  • Page 1 Thelin Hearth Products How To Replace the Igniter in the Gnome Pellet Stove...
  • Page 2 How to Replace the Igniter in the Gnome Pellet Stove Step 1 CAUTION: Unplug power cord prior to performing any service on stove. Ensure stove has cooled down. Locate Switch Panel on stove. When facing the front of the stove the Switch Panel is located on the right hand side.
  • Page 3 How to Replace the Igniter in the Gnome Pellet Stove Step 4 Apply masking tape to Bottom Ring below the front of the Wrapper (both sides). This will protect the Bottom Ring from scratches while the Wrapper is removed. Step 5 Apply masking tape to Bottom Ring below the front of the Wrapper (both sides).
  • Page 4 How to Replace the Igniter in the Gnome Pellet Stove Step 7 Locate the (6) T30 Torx screws on the left and right hand side of the Wrapper. Step 8 Locate the (6) T30 Torx screws on the left and right hand side of the Wrapper.
  • Page 5 How to Replace the Igniter in the Gnome Pellet Stove Step 10 Carefully remove the Wrapper from the stove. Step 11 Remove the (4) 8-32 black philips pan head screws on Rear Inspection Cover. Step 12 Remove the Rear Inspection Cover and set...
  • Page 6 How to Replace the Igniter in the Gnome Pellet Stove Step 13 Remove (2) 8-32 phillips screws holding Circuit Board to the stove. Step 14 Use masking tape to tape back Circuit Board to Feed Motor. By doing this, the Circuit Board will remain out of the way.
  • Page 7 How to Replace the Igniter in the Gnome Pellet Stove Step 13 Disconnect Ignitor wires from Transformer. Ignitor wires are two white braided wires as shown in photo. Step 14 Open Front Door. Step 15 Remove Firepot.

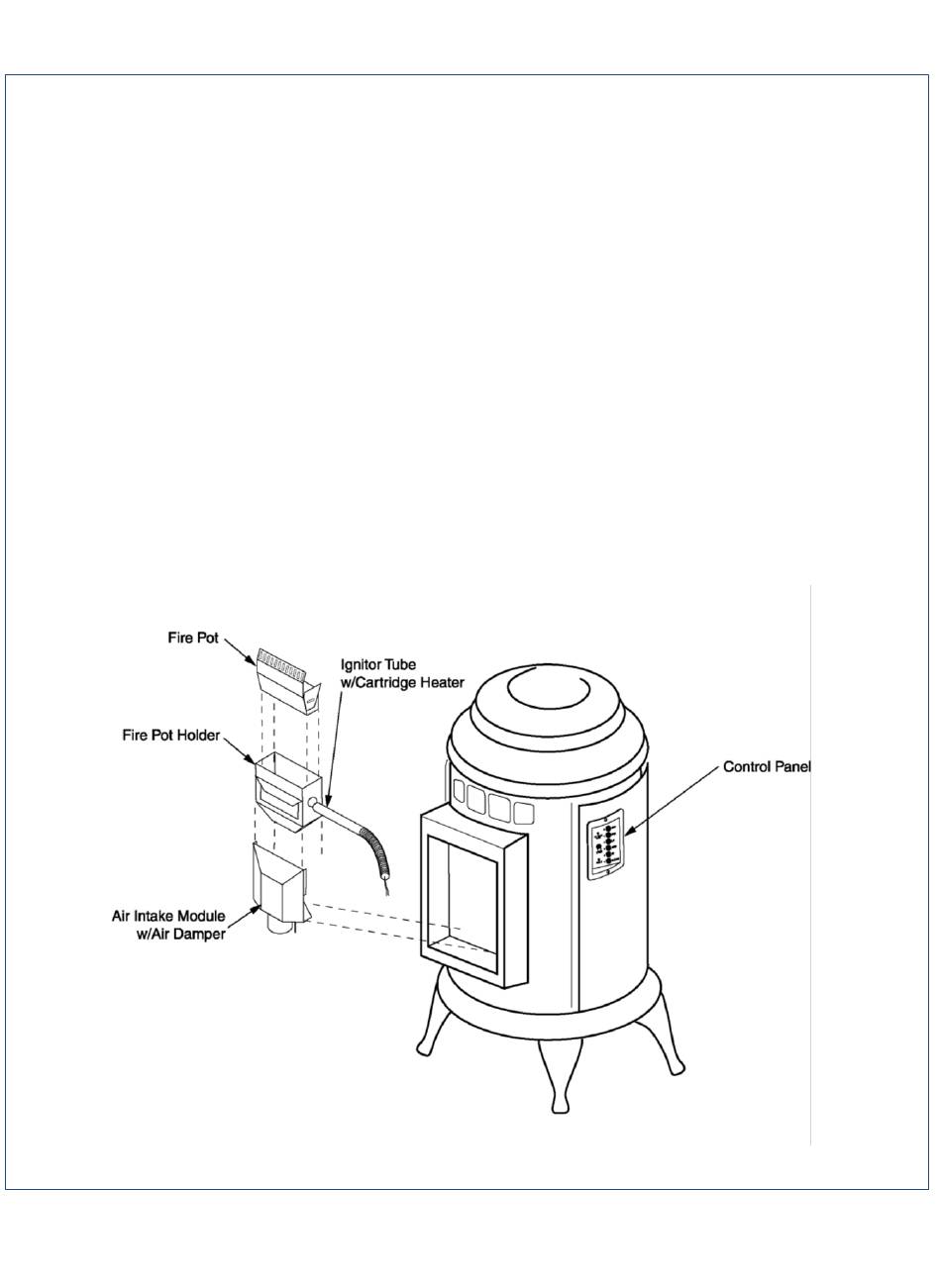

  • Page 8 How to Replace the Igniter in the Gnome Pellet Stove Step 16 Remove Firepot Holder. Step 17 Remove Ignitor. Note: Ignitor is sealed in place using high temperature sealant. You will have to break this seal and gently pull on Ignitor for it to release.
  • Page 9 How to Replace the Igniter in the Gnome Pellet Stove Step 19 Remove Firepot Holder. Step 20 Caulk and fully seal Ignitor hole in stove. Use high temperature sealant. Reassembly is reverse order of disassembly.
