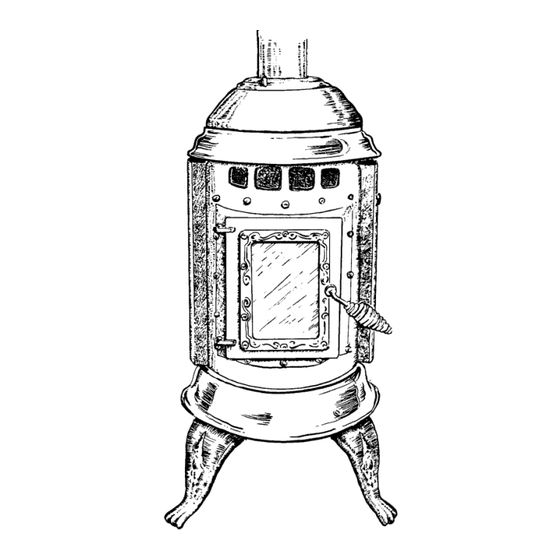

GNOME
DIRECT VENT GAS HEATER
Installation and Operating Instructions
Made in the USA by:
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION.
SAVE THESE INSTRUCTIONS.
INSTALLER: PLEASE LEAVE THIS MANUAL WITH THE CUSTOMER!
CUSTOMER: PLEASE KEEP INSTRUCTIONS FOR FUTURE REFERENCE
TH-REF-SLS-231 Rev. A
