Z6955-XL-S-W2

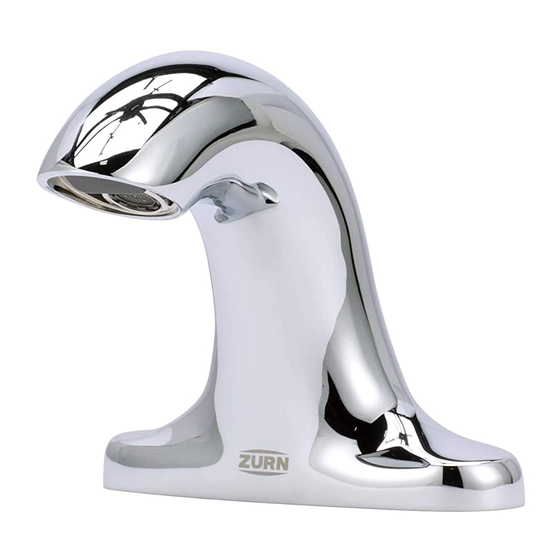

Sensor-Operated Lavatory Faucets with Smart Connected Features
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the
date of purchase. Decorative finishes warranted for one year. We will replace at no costs goods that prove defective provided we are
notified in writing of such defect and the goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly
maintained and used in accordance with instructions. We shall not be responsible for any labor charges or any loss, injury or damages
whatsoever, including incidental or consequential damages. The sole and exclusive remedy shall be limited to the replacement of the
defective goods. Before installation and use, the purchaser shall determine the suitability of the product for his intended use and the
purchaser assumes all risk and liability whatever in connection therewith. Where permitted by law, the implied warranty of merchantability
is expressly excluded. If the products sold hereunder are "consumer products," the implied warranty of merchantability is limited to a
period of three years and shall be limited solely to the replacement of the defective goods. All weights stated in our catalogs and lists
are approximate and are not guaranteed.
NOTICE: READ ENTIRE MANUAL PRIOR TO INSTALLING PRODUCT.
®
LIMITED WARRANTY
Connected Aqua-FIT
Battery Powered Faucets
Serio Series
TM
Installation, Operation, Maintenance
and Parts Manual
Patented and Patents Pending
-W2
Z6950-XL-S-W2
®
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ZURN Connected Aqua-FIT Serio-W2 Series
Summary of Contents for ZURN Connected Aqua-FIT Serio-W2 Series
- Page 1 Connected Aqua-FIT ® Battery Powered Faucets ® Serio Series Installation, Operation, Maintenance and Parts Manual Patented and Patents Pending Z6955-XL-S-W2 Z6950-XL-S-W2 Sensor-Operated Lavatory Faucets with Smart Connected Features WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov LIMITED WARRANTY All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the...
-
Page 2: Required Tools
Serio Series™ Package Contents Z6955-XL-S-W2 Z6950-XL-S-W2 Aerator Spout Assembly Spout Assembly Aerator and Key and Key Batteries Base Gasket Batteries Base Gasket Shank Mounting Kit Shank Mounting Kit Widespread Mounting Kit Electronics Box with Solenoid Electronics Box with Solenoid Filter Filter Monitor Monitor... -
Page 3: Specifications
Unit is furnished with a standard 1.5 GPM aerator, and mounting hardware. Zurn Lead Free products (-XL) are designed and manufactured to comply with Section 1417 of the Safe Drinking Water Act (SDWA) which mandates the weighted average lead content of no more than 0.25% of the wetted surface... - Page 4 Spout Installation Instructions NOTE: Before installation, turn off water supplies to existing faucet and remove faucet if replacing an existing device. Clean the faucet basin and clear away debris. Flush all supply lines before connecting the faucet. Failure to do so may result in debris clogging the inlets and/or internal control and mixing valve 1.
- Page 5 Monitor & Electronic Module Installation Instructions Install Monitor on wall surface within 2 feet radius of faucet Loosen lid screw with supplied 3mm Allen wrench. Open lid with dry wall anchors & screws or doubled sided VHB tape and install supplied batteries. Close lid and tighten lid screw. Use AA Lithium Batteries or AA Alkaline batteries, but do not mix Lithium with Alkaline.
-
Page 6: Care And Cleaning Instructions
6. Ensure that sink is clear of tools/debris and is in normal 8. Connect sensor cable from spout to monitor. operating condition, and remove protective film from sensor lens has been removed. Do not engage the sensor after the connection is made. The 7. - Page 7 Install Zurn Gateway per the Gateway Instructions Manual Request plumbSMART Administrator Account at 844-987-6737 Zurn creates your Enterprise Account for you! (You will be required to identify your building location, number of floors, and number of rooms.) Log in to plumbsmart.zurn.com Register each Connected Product in plumbSMART (Watch How-To Videos to Get Started.
- Page 8 Adjustable modes and features selection To adjust features from default configuration, you must remove the battery tray. Once battery tray is removed you will see the switches. Switch Position: Purge (Hours) Disable: Time (Seconds) Less Time-out Mode Select Sensing Mode: Metering Mode: All switches shown in default mode.
- Page 9 If not, install washer. If a bles to the faucet shank. washer is damaged, replace with new. For further assistance with troubleshooting visit http://www.zurn.com FV723 Rev. B 7/29/2020 Page 8...
- Page 10 Details tab listed as “Activated” NETWORK: Senet SUBSCRIPTION STATUS: Activated LAST HEARD FROM: 07/14/2020, 04:29 PM CDT If listed as “Deactivated”, contact Zurn Custom Service at 1.855. ONE.ZURN (1.855.663.9876) for assistance. Step 1 “Status – Good” posted in plumbSMART and faucet not actuating Verify LoRa Monitor’s cables are connected to IR sensor...
- Page 11 If LORA LED does not turn ON solid and ethernet cable connected, contact facility IT administrator to modify port rules to allow Zurn gateway to access the internet via local router. If gateway model is ETH/LTE, visually verify SIM card is installed in designated slot on the side of gateway.
- Page 12 Verify product image and model number from plumbSMART product page “Details” tab against model number cited on product literature and packaging. If incorrect, contact Zurn Custom Service at 1.855.ONE.ZURN (1.855.663.9876) for assistance. “High Daily Faucet Activate Rate” posted in plumbSMART Step 1 Verify faucet is not falsely triggering.
- Page 13 Spout Replacement To replace spout body, you must first turn water off, then remove spout with sensor cable. Before removing the spout, disconnect the sensor cable below the Note location of set screw and spring lock. deck so that the cable head can be pulled up through the deck. *Take care to press the locking mechanism in prior to disconnect- ing sensor cable.
- Page 14 Filter and Mixing Valve Installation Control Box Attach adapter or Braided Hose (-SSH) here with -MV and TMV-1 options P6900-120BC, Filter in standard faucet installation -SSH suffix option P6900-12BC Filter Need to hold at pointed area by suitable wrench or by hand while applying torque to the supply hose nut.
- Page 15 Z6950-XL & Z6955-XL Parts List Description Product No. Description Product No. Z6955 Spout Assembly with Sensor, Item 1A P6955-XL-S-1 Single Stainless Supply Hose (XL), Item 12 P6900-SSH Z6950 Spout Assembly with Sensor, Item 1B P6950-XL-S-1 Stainless Supply Hose (XL), Item 13 P6900-SH-XL Spout shank base, Item 2 P6950-XL-B...
- Page 16 ZURN INDUSTRIES, LLC W. Freshwater Way, Milwaukee, WI U.S.A. 53204 · Ph. 1-855-ONE-ZURN, Fax 919-775-3541 In Canada: ZURN INDUSTRIES LIMITED 7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, Ph. 905-405-8272, Fax 905-405-1292 ZURN.COM Rev. B Date: 07/29/20 C.N. No. 142919 Prod.
