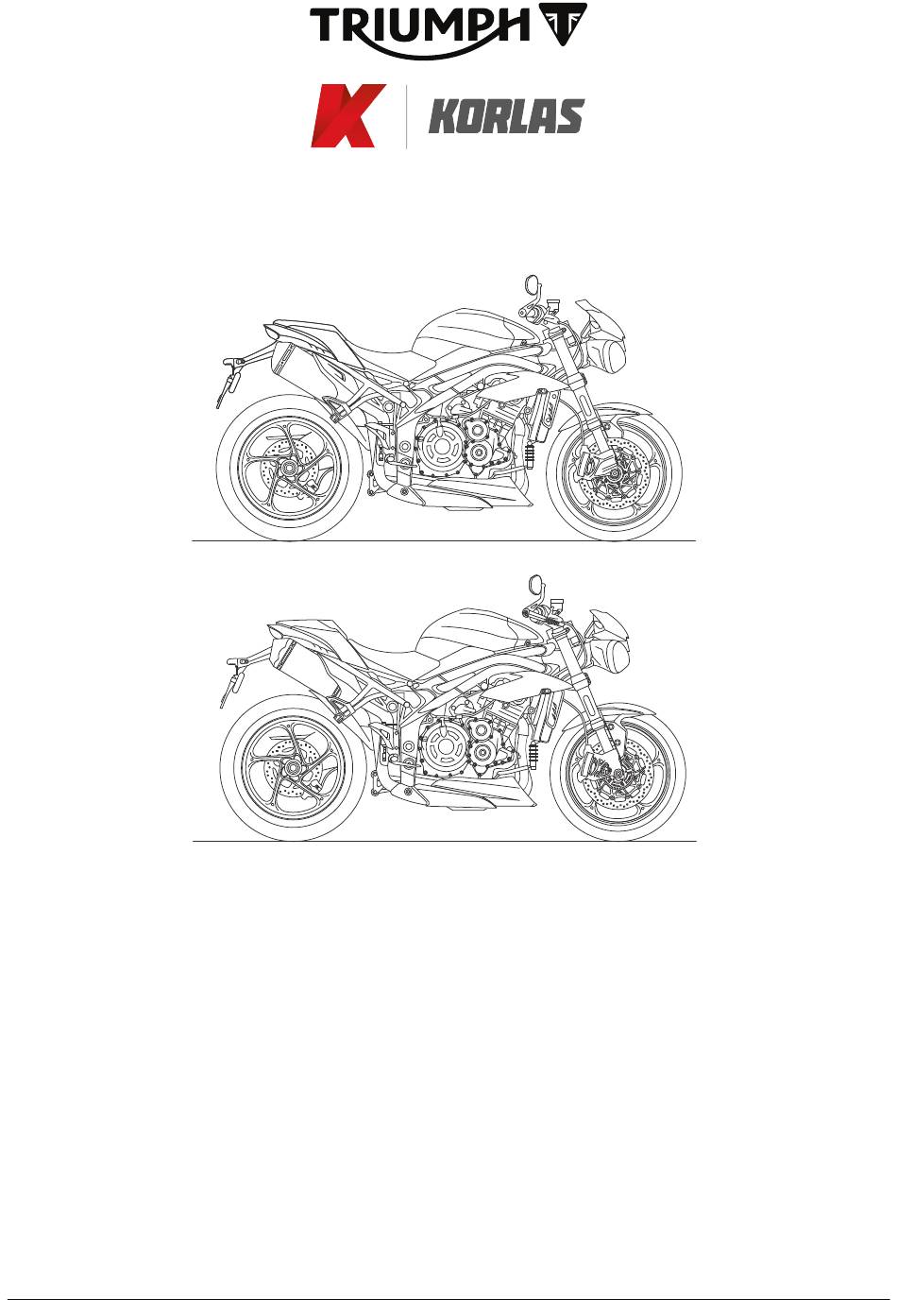

Speed Triple S and Speed Triple RS
This handbook contains information on the Triumph Speed Triple S and Speed Triple RS
motorcycles. Always store this Owner's Handbook with the motorcycle and refer to it
for information whenever necessary.
The information contained in this publication is based on the latest information
available at the time of printing. Triumph reserves the right to make changes at any
time without prior notice, or obligation.
Not to be reproduced wholly or in part without the written permission of Triumph
Motorcycles Limited.
© Copyright 11.2017 Triumph Motorcycles Limited, Hinckley, Leicestershire, England.
Publication part number 3855531-EN issue 1
Advertisement
Table of Contents
Related Manuals for Triumph Speed Triple S
Summary of Contents for Triumph Speed Triple S
- Page 1 Speed Triple S and Speed Triple RS This handbook contains information on the Triumph Speed Triple S and Speed Triple RS motorcycles. Always store this Owner's Handbook with the motorcycle and refer to it for information whenever necessary. The information contained in this publication is based on the latest information available at the time of printing.
-
Page 2: Scheduled Maintenance Chart
Autoscan - Carry out a full Autoscan using the • • • • • Triumph Diagnostic Tool (print a customer copy) Fuel system - check hoses for chafing, cracks or • • • damage Fuel system - Check for leaks •... - Page 3 • • • • General Engine ECM, Instruments and Keyless ECM - check for latest calibration download using the Triumph diagnostic tool Fasteners - inspect visually for security • • • • • Bank angle indicators - inspect visually for wear •...
- Page 4 ² Number of maximum adjuster turns unless already fully screwed out. Note: • The Speed Triple S motorcycle is delivered from the factory with the suspension set at the Road riding settings, as shown in the relevant suspension chart. Note: •...
-
Page 5: Suspension Setting Chart - Speed Triple Rs
Maintenance Suspension Setting Chart - Speed Triple RS Warning Warning Make sure that the adjusters are set Make sure that the correct balance be- to the same setting on both forks. tween front and rear suspension is maintained. Settings which vary from left to right could significantly change handling Suspension imbalance could signifi- characteristics leading to loss of con-... -
Page 6: Specifications
Specifications SPECIFICATIONS Dimensions, Weights and Performance A list of model specific dimensions, weights and performance figures is available from your authorised Triumph dealer, or on the Internet at www. triumph. co. uk. Payload Maximum Payload 196 kg (432 lbs) Engine... - Page 7 Specifications Fuel System Type Electronic Fuel Injection Injectors Solenoid Operated Fuel Pump Submerged Electric Fuel Pressure (nominal) 3.5 bar Fuel Type 91 RON Unleaded Tank Capacity 15.5 litres Ignition Ignition System Digital Inductive Electronic Rev Limiter (r/min) 9,500 (r/min) Spark Plug NGK CR9EIA-9 Spark Plug Gap 0.9 mm...
- Page 8 Approved Tyres A list of approved tyres specific to these models is available from your authorised Triumph dealer, or on the Internet at www. triumph. co. uk. Tyres Tyre Pressures (Cold) Front 2.35 bar (34 lb/in2)
- Page 9 Bearings and Pivots Grease to NLGI 2 Specification Brake Fluid DOT 4 Brake and Clutch Fluid Coolant Triumph HD4X Hybrid OAT Coolant Drive Chain Chain Spray suitable for O-Ring Chains Engine Oil Semi or fully synthetic 10W/40 or 10W/50 motorcycle engine oil which...
