Wiring NPB-PWR-UN-H/U input
power and earth ground.
1. Remove power from the AC circuit being wired to
the NPB-PWR-UN-H/U. See the previous Warning.
2. Remove the NPB-PWR-UN-H/U cover. To do this,
press in the four tabs on both ends of the unit, and
lift the cover off. If the controller or a IO-16-H/U
accessory module is plugged into the unit, you may
need to slide it away to get to the cover tabs.
3. Connect the supplied earth grounding wire to a
nearby grounding point. See Fig. 5.
4. Make AC circuit connections line (mains) and neu-
tral to the terminals labeled "INPUT PWR."
5. Replace the cover on the NPB-PWR-UN-H/U mod-
ule. Make sure all modules in the mounted assem-
bly are firmly connected together and secured.
Do not energize the AC circuit wired to the
NPB-PWR-UN-H/U until all other controller
mounting and wiring is completed. See "Power
Up and Initial Checkout" on page 12.
(Wall Mount AC Adapter)
The NPB-WPM-US/U is a self-contained, isolated, Class
2, switching power supply designed to plug into a
standard building power receptacle of appropriate voltage.
WEB-300E, WEB-600E/U, CP-300E, CP-600E/U SERIES CONTROLLERS
120 OR 240VAC
NOTE: THE 6-PIN CONNECTOR ON THE NPB-PWR-UN-H/U IS NOT USED WITH A
WEB-300E OR WEB-600E/U SERIES CONTROLLER. THE 6-PIN CONNECTOR IS
DESIGNED FOR USE WITH OTHER CONTROLLERS OR MODULES, AND MUST
BE LEFT UNUSED.

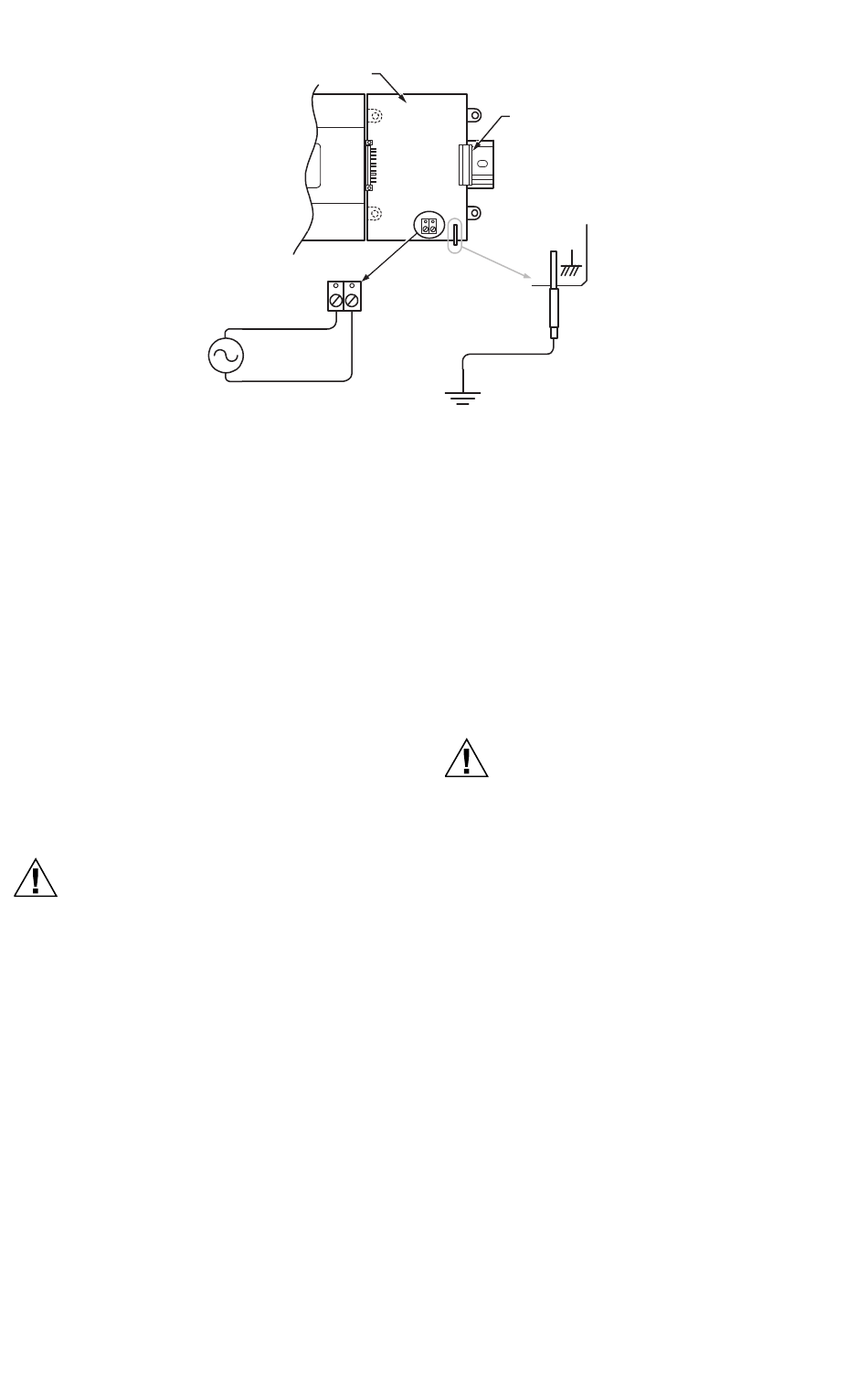

Fig. 5. NPB-PWR-UN-H/U module wiring connections.
To supply power to the controller, you simply plug the
barrel connector plug from the NPB-WPM-US/U into the
barrel power connector on the controller's base board
(see Fig. 3 on page 5).
NOTE: The adapter's 15W output rating is derated
50% at the 60°C (140°F) maximum ambient
temperature (for a controller without a NiMH
battery), such that no I/O modules are sup-
ported at 60°C. See "Environmental Require-
ments" on page 3.
Do not plug the barrel connect plug from the
NPB-WPM-US/U into the controller until all
other mounting and wiring is completed.
See "Initial power up and checkout." on page 12.
Communications ports are on the controller's bottom side,
NOTE: Prior to connecting cables, provide strain
relief for them to prevent damage to the
