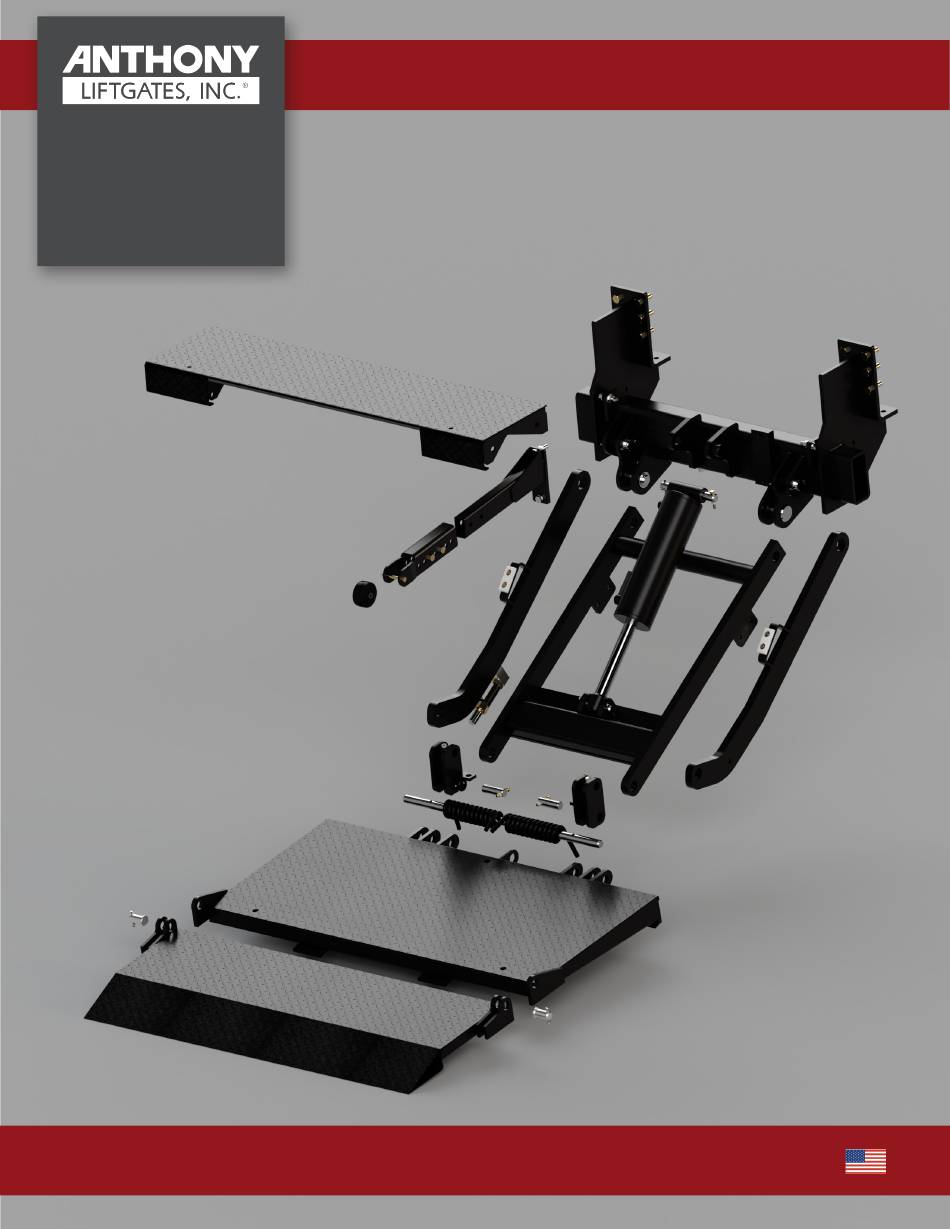

- Page 1 PArts Book SM-1800 SM-2500 SM-3000 Quality, Reliability, Customer Service Made in the USA...
-
Page 2: Table Of Contents
9. Step Kit ....... . . 14 1. General Information Section 1.1 Introduction Congratulations on selecting an Anthony Liftgates Side Mount TuckUnder™ liftgate. All Anthony tuckunder model liftgates are factory assembled, energized, and tested to ensure the highest quality performance standards. -
Page 3: Serial Number
1.3 If Installation Help is Required For service or ordering replacement parts, contact an authorized dealer by going to www.anthonyliftgates. Anthony Liftgates manufacturs high‑quality liftgates that com and selecting the FIND A DEALER tab. Enter your require very little maintenance or repair. However, should zip code to find the nearest authorized service location. -
Page 4: Nomenclature
Anthony Liftgates will not accept responsibility for damages as a result of using Make sure all replacement parts are in good unapproved parts. If non-OEM replacement parts are working condition and properly installed. -
Page 5: Gravity-Down Power Unit Nomenclature
Motor Start Reservoir Solenoid Adjustable Flow Control Relief Valve Valves Electric Motor Pump Power UP High-Pressure Hose (GREEN wire) (WHITE wire) Control Switch (RED wire) 10 Amp In-Line Fuse (BLACK wire) Side Mount Liftgate Parts Book Anthony Liftgates, Inc. 800‑482‑0003 www.anthonyliftgates.com... -
Page 6: Accessories
3139 ATU‑717 DECAL/INSTALL KIT (1800) ATU‑718 DECAL/INSTALL KIT (2500) ATU‑787 DECAL/INSTALL KIT (3000) Item Part Description Qty. Number FRAME REINFORCEMENT KIT — ATU‑878 (REFER TO SEPARATE DRAWING FOR PARTS LIST) Anthony Liftgates, Inc. Side Mount Liftgate Parts Book www.anthonyliftgates.com 800‑482‑0003... -
Page 7: Pump Box Assembly
SERIAL TAG A‑132030 3/16" ALUMINUM RIVET 3/8‑16 X 1" GR8 HEX BOLT ZP A‑132038 3/8‑16 SERRATED FLANGE LOCKNUT 2058 3/8 FLAT WASHER A‑132011 3/8 STAR WASHER 2054 3/8 SPLIT LOCKWASHER Side Mount Liftgate Parts Book Anthony Liftgates, Inc. 800‑482‑0003 www.anthonyliftgates.com... -
Page 8: Hydraulic Power Pack
5/16" ANTI‑ROTATIONAL LUG ‑ #4 CABLE A‑150608 2/0 CABLE A‑150990 HEAT SHRINK (2.5") A‑133003 3/8" ANTI‑ROTATIONAL LUG A‑130117 POWER PACK UNIT, COMPLETE, POWER DOWN A‑130116 POWER PACK UNIT, COMPLETE, GRAVITY DOWN Anthony Liftgates, Inc. Side Mount Liftgate Parts Book www.anthonyliftgates.com 800‑482‑0003... -
Page 9: Pump Parts - Gravity Down
AR‑18‑87 BRASS STREET ELBOW 1/8" NPT 90 DEG ATU‑124 3/16 BRASS HOSE BARB X 1/8 MALE NPT ATU‑565 RESERVOIR ATTACHMENT CLAMP A‑150019 RESERVOIR ATTACHMENT O‑RING A‑130140 FITTING, 06MJ‑06MORB 90DEG ELBOW Side Mount Liftgate Parts Book Anthony Liftgates, Inc. 800‑482‑0003 www.anthonyliftgates.com... -
Page 10: Pump Parts - Power Down
FILLER/VENT CAP A‑150635 RESERVOIR (INCLUDES FILLER/VENT CAP) ATU‑565 RESERVOIR ATTACHMENT CLAMP A‑150019 RESERVOIR ATTACHMENT O‑RING A‑130140 FITTING, 06MJ‑06MORB 90DEG ELBOW A‑130142 FITTING, 06MJ‑06FJS 90DEG ELBOW A‑150015 FILTER NIPPLE A‑150016 FILTER SCREEN Anthony Liftgates, Inc. Side Mount Liftgate Parts Book www.anthonyliftgates.com 800‑482‑0003... -
Page 11: Adapter Frame Assembly And Mounting Plates
1/2‑13 LOCKNUT SG‑606‑04 ANGLE BRACKET ATU‑1162 MOUNTING PLATE BRACKET 90DEG CHANNEL SG‑606‑03 SG‑606‑02 SUPPORT BRACE 5/8‑18 X 2.0 HEX BOLT GR8 2040 S‑016011 5/8 LOCKWASHER 5/8‑18 HEX NUT GR8 ZP S‑010011 Side Mount Liftgate Parts Book Anthony Liftgates, Inc. 800‑482‑0003 www.anthonyliftgates.com... -
Page 12: Gate Assembly
8. Gate Assembly Anthony Liftgates, Inc. Side Mount Liftgate Parts Book www.anthonyliftgates.com 800‑482‑0003... - Page 13 1‑8 JAM NUT A‑132342 1‑8 NYLOCK NUT GR8 S‑094005 1/2‑13 X 1.5 SQHD KNURLED CUP SET SCREW 1/2‑13 FINISHED HEX JAM NUT GR8 ATU‑556 PIN LOCK, LATCH ATU‑557 HANDLE, LATCH Side Mount Liftgate Parts Book Anthony Liftgates, Inc. 800‑482‑0003 www.anthonyliftgates.com...
-
Page 14: Step Kit
1/2‑13 LOCKNUT A‑132112 1/2‑13 X 2.5" HEX BOLT 3139 1/2‑13 HEX NUT GR8 ZP A‑132019 1/2‑13 X 4" HEX BOLT GR8 YZ — ATU‑1712 INSTALL INSTRUCTIONS FOR AUX STEP — Anthony Liftgates, Inc. Side Mount Liftgate Parts Book www.anthonyliftgates.com 800‑482‑0003... -
Page 15: Hydraulic System
COTTER PIN, 1/4" X 1‑1/2" LG 18‑8 SS 5/16‑18 X 2" HEX BOLT GR8 5/16‑18 CENTER LOCKNUT A‑140174 UPPER CYLINDER PIN A‑130114 CYLINDER, 4" ATU‑103 LOWER CYLINDER PIN, LIFTFRAME CYLINDER MOUNT Side Mount Liftgate Parts Book Anthony Liftgates, Inc. 800‑482‑0003 www.anthonyliftgates.com... -
Page 16: Gravity Down Assembly (1800, 2500, & 3000)
5/16‑18 X 2" HEX BOLT GR8 A‑130100 RESTRICTOR VALVE 1.5 GPM (1800) A‑130101 RESTRICTOR VALVE 2.25 GPM (2500) A‑130102 RESTRICTOR VALVE 3 GPM (3000) 5/16‑18 CENTER LOCKNUT A‑140174 UPPER CYLINDER PIN A‑130198 FITTING, 6400‑06MJ‑06MORB STRAIGHT Anthony Liftgates, Inc. Side Mount Liftgate Parts Book www.anthonyliftgates.com 800‑482‑0003... -
Page 17: Platform Assemblies
PLATFORM ‑ 48 X 34+7 (1800, 3000) ATU‑1000 PLATFORM MAIN SECT ATU‑1009 PLATFORM FLIP SECTION ATU‑636 PLATFORM ‑ 72 X 38+5 (2500 LEVEL RIDE) ATU‑256‑35 PLATFORM MAIN SECT ATU‑576 PLATFORM FLIP SECTION Side Mount Liftgate Parts Book Anthony Liftgates, Inc. 800‑482‑0003 www.anthonyliftgates.com... -
Page 18: Inch Platform Assembly (1800, 2500, & 3000)
CAM ASSY, CURBSIDE ATU‑107‑L CAM ASSY, STREETSIDE ATU‑100‑L PLATFORM SPRING, STREETSIDE ATU‑518‑R PLATFORM SPRING, CURBSIDE ATU‑1485 CAM PLATE PIN A‑132148 5/16‑18 X 2" SOCKET CAP SCREW GR8 ATU‑071 SHIM, 14 GA — Anthony Liftgates, Inc. Side Mount Liftgate Parts Book www.anthonyliftgates.com 800‑482‑0003... -
Page 19: Inch Platform Assembly (2500 Level Ride)
CAM PLATE ASSY, "LEVEL RIDE", STREETSIDE ATU‑100‑L PLATFORM SPRING, STREETSIDE ATU‑518‑R PLATFORM SPRING, CURBSIDE ATU‑1485 CAM PLATE PIN A‑132148 5/16‑18 X 2" SOCKET CAP SCREW GR8 ATU‑071 SHIM, 14 GA — Side Mount Liftgate Parts Book Anthony Liftgates, Inc. 800‑482‑0003 www.anthonyliftgates.com... -
Page 20: Miscellaneous Accessories
MADE IN THE USA ATU‑146 STAND CLEAR A‑131028 WELD WARNING A‑131133 HYDRAULIC FLUID A‑131001 10 AMP FUSE CHANGING PROCEDURE (attached to control wiring in pump box) A‑131125 WARNING, GALVANIZED FUMES HAZARD Anthony Liftgates, Inc. Side Mount Liftgate Parts Book www.anthonyliftgates.com 800‑482‑0003... -
Page 21: Decal Placement
A-131134 Welding on galvanized and stainless steel parts gives off especially hazardous fumes. • Remove galvanizing from area to weld. • Provide good ventilation. • Wear suitable respirator. A-131125 Side Mount Liftgate Parts Book Anthony Liftgates, Inc. 800‑482‑0003 www.anthonyliftgates.com... - Page 22 Do not put a higher rated decal on a liftgate with a lower capacity; this could result in liftgate damage or possibly personal injury. Anthony Liftgates, Inc. Side Mount Liftgate Parts Book www.anthonyliftgates.com 800‑482‑0003...
- Page 23 — A-131028 — A-131133 This hydraulic reservoir is filled with Kendall Glacial Blu hydraulic fluid. Use ONLY the same or equivalent fluid. A-131133 ttached to control cable) — A-131001 (a Side Mount Liftgate Parts Book Anthony Liftgates, Inc. 800‑482‑0003 www.anthonyliftgates.com...
- Page 24 PH: 815-842-3383 PH: 815-842-3383 FAX: 815-844-3612 FAX: 815-844-3612 TOLL FREE: 800-482-0003 TOLL FREE: 800-482-0003 WWW.ANTHONYLIFTGATES.COM WWW.ANTHONYLIFTGATES.COM Form No. L-102-PB (03-20) Este manual en español también está disponsible en nuestro sitio Web. Anthony Liftgates, Inc. Side Mount Liftgate Parts Book www.anthonyliftgates.com 800‑482‑0003...
