Communication Module

Installing a Radio

A radio providing wide-area network capability for SCADA

applications, if specified, is furnished factory-installed in

the communication module. Alternately, a user-furnished

radio can be installed in the field. Some radios must be

programmed using a cable connected to a computer. In

such instances, remove the radio tray assembly to connect

to the radio, and power the radio with the battery or a

separate power supply.

Follow these steps to install a radio in the com-

munication module:

STEP 1.

Loosen the battery compartment cover locking

screw and open the battery compartment cover.

See Figures 4 and 5 on page 8.

STEP 2.

Remove the five ¼–20 bolts that attach the

radio tray assembly using a ⅜-inch nut driver.

Retain the bolts. See Figure 8.

STEP 3.

Remove the radio tray assembly and place it on

a clean, dry surface.

S&C Instruction Sheet 766-520

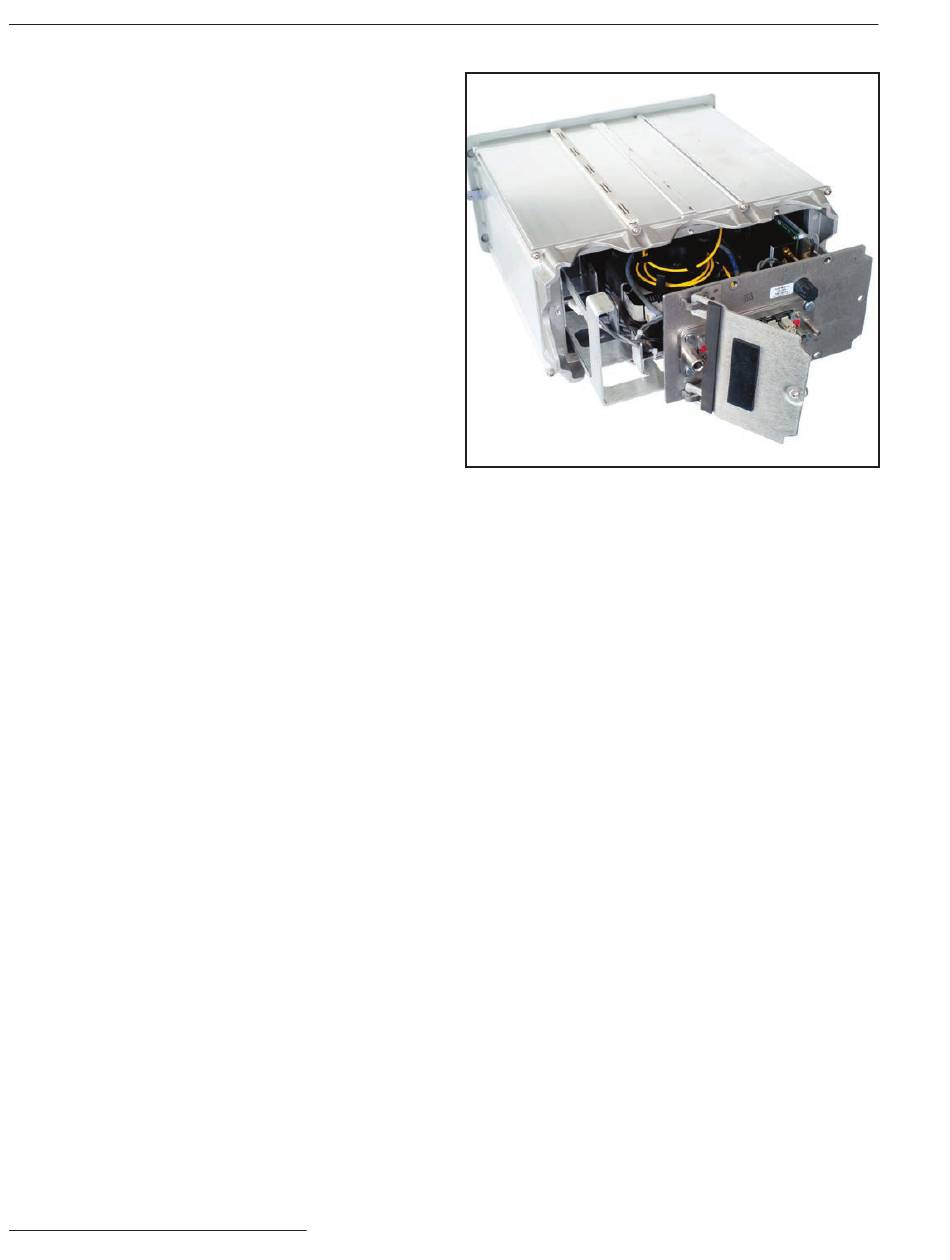

Figure 8. Removing the radio tray assembly.
