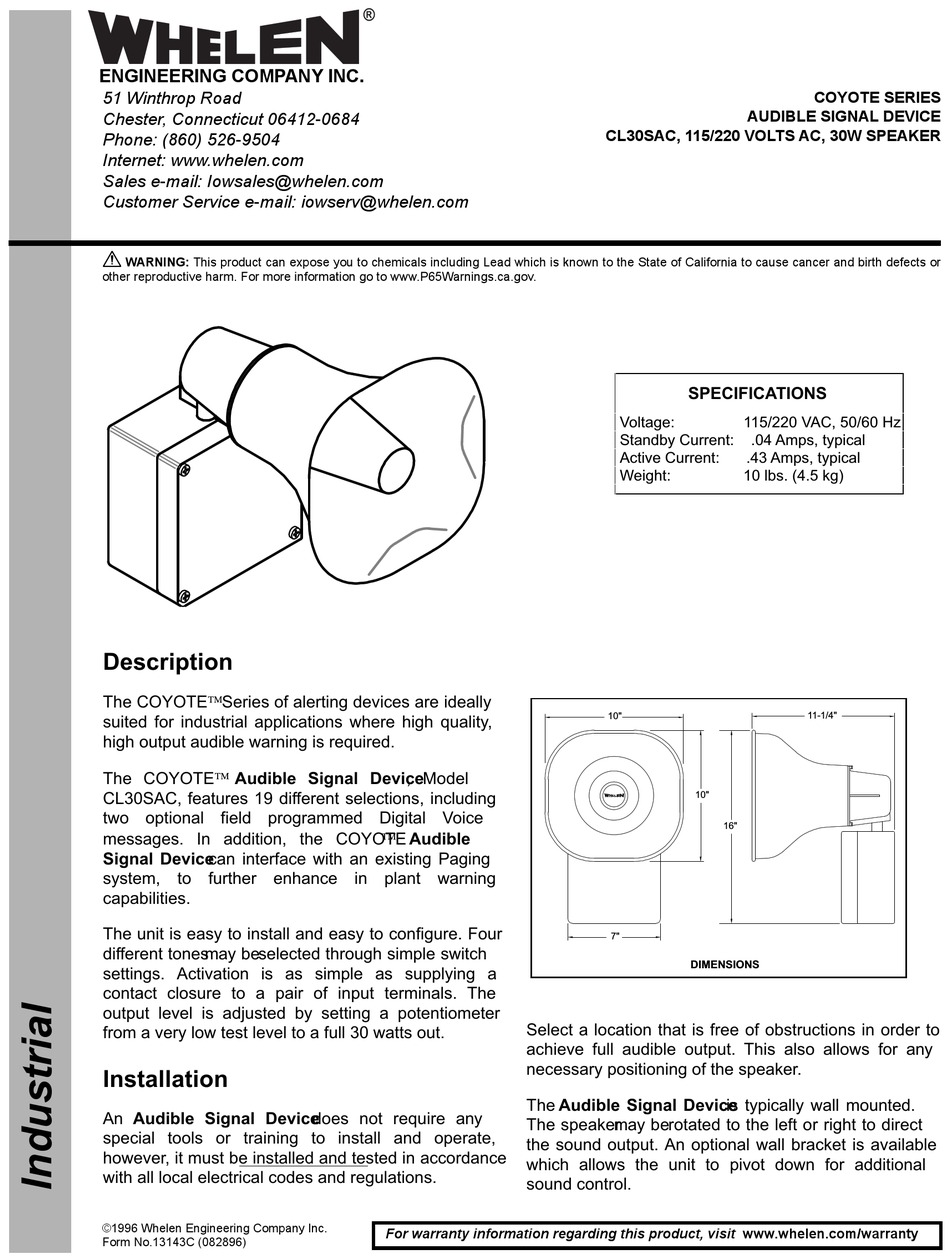

Whelen Engineering Company COYOTE Series Manual

ENGINEERING COMPANY INC.
51 Winthrop Road
Chester, Connecticut 06412-0684
Phone: (860) 526-9504
Internet: www.whelen.com
Sales e-mail: Iowsales@whelen.com
Customer Service e-mail: iowserv@whelen.com
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or
other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Description
The COYOTEÔSeries of alerting devices are ideally
suited for industrial applications where high quality,
high output audible warning is required.
The COYOTEÔ Audible Signal Device
CL30SAC, features 19 different selections, including
two optional field programmed Digital Voice
messages. In addition, the COYOTE
Signal Device can interface with an existing Paging
system, to further enhance in plant warning
capabilities.
The unit is easy to install and easy to configure. Four
different tones may beselected through simple switch
settings. Activation is as simple as supplying a
contact closure to a pair of input terminals. The
output level is adjusted by setting a potentiometer
from a very low test level to a full 30 watts out.
Installation
An Audible Signal Device does not require any
special tools or training to install and operate,
however, it must be installed and tested in accordance
with all local electrical codes and regulations.
©1996 Whelen Engineering Company Inc.
Form No.13143C (082896)
®
, Model
Ô Audible
Select a location that is free of obstructions in order to
achieve full audible output. This also allows for any
necessary positioning of the speaker.
The Audible Signal Device is typically wall mounted.
The speaker m ay berotated to the left or right to direct
the sound output. An optional wall bracket is available
which allows the unit to pivot down for additional
sound control.
For warranty information regarding this product, visit www.whelen.com/warranty
Page 1
AUDIBLE SIGNAL DEVICE
CL30SAC, 115/220 VOLTS AC, 30W SPEAKER
SPECIFICATIONS
Voltage: 115/220 VAC, 50/60 Hz
Standby Current: .04 Amps, typical
Active Current: .43 Amps, typical
Weight: 10 lbs. (4.5 kg)
10"
10"
16"
7"
DIMENSIONS
COYOTE SERIES
11-1/4"
