Whelen Engineering Company COYOTE CL15SDC Quick Start Manual

ENGINEERING COMPANY, INC
Route 145, Winthrop Road
Chester, CT 06412-0684
TELEPHONE: (860) 526-9504
TOLL FREE: 1-800-637-4736
Description
The COYOTE Series of alerting devices are ideally
suited for industrial applications where high quality,
high output audible warning is required.

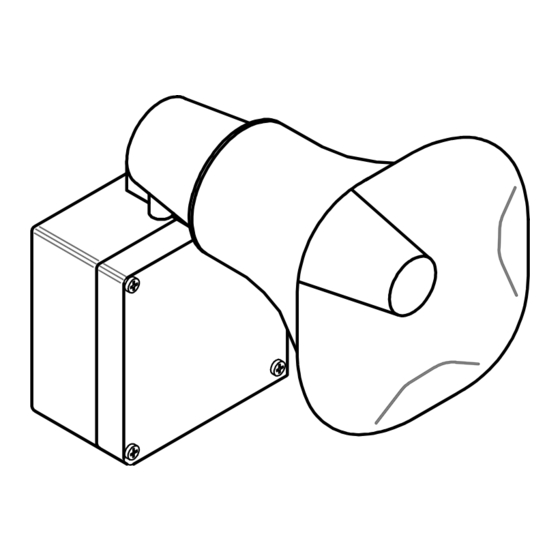

The COYOTE Audible Signal Device, Model
CL15SDC, features 19 different selections, including
two optional field programmed Digital Voice
messages. In addition, the COYOTE Audible
Signal Device can interface with an existing Paging
system, to further enhance in plant warning
capabilities.
The unit is easy to install and easy to configure. Four
different tones may be selected through simple switch
settings. Activation is as simple as supplying a
contact closure to a pair of input terminals. The
output level is adjusted by setting a potentiometer
from a very low test level to a full 15 watts out.
Installation
An Audible Signal Device does not require any
special tools or training to install and operate,
however, it must be installed and tested in accordance
with all local electrical codes and regulations.
 1997 Whelen Engineering Company, Inc. Doc No. 04-0113255-00
Dec 10, 1997.
Doc No. 04-0113255-00
COYOTE SERIES
AUDIBLE SIGNAL DEVICE
CL15SDC, 24 VOLTS DC, 15W SPEAKER
SPECIFICATIONS
Voltage:
Standby Current:
Active Current:
Weight:
10"
10"
7"
DIMENSIONS
Select a location that is free of obstructions in order to
achieve full audible output. This also allows for any
necessary positioning of the speaker.
The Audible Signal Device is typically wall mounted.
The speaker may be rotated to the left or right to direct
the sound output. An optional wall bracket is available
which allows the unit to pivot down for additional
sound control.
24 VDC (nominal)
.04 Amps, typical
.56 Amps, typical
9.5 lbs. (4.32 kg)
11-1/4"
16"
