Whelen Engineering Company WS100TCH Assembly, Operating And Safety Instructions, Translation Of The Original Instructions

®
ENGINEERING COMPANY INC.
51 Winthrop Road Model WS100TCH Speaker Assembly
P/N: 01-1461901-00
Chester, Connecticut 06412-0684
Phone: (860) 526-9504
Internet: www.whelen.com
Sales e-mail: autosale@whelen.com
Customer Service e-mail: custserv@whelen.com
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or
other reproductive harm. For more information go to www.P65Warnings.ca.gov.

General-

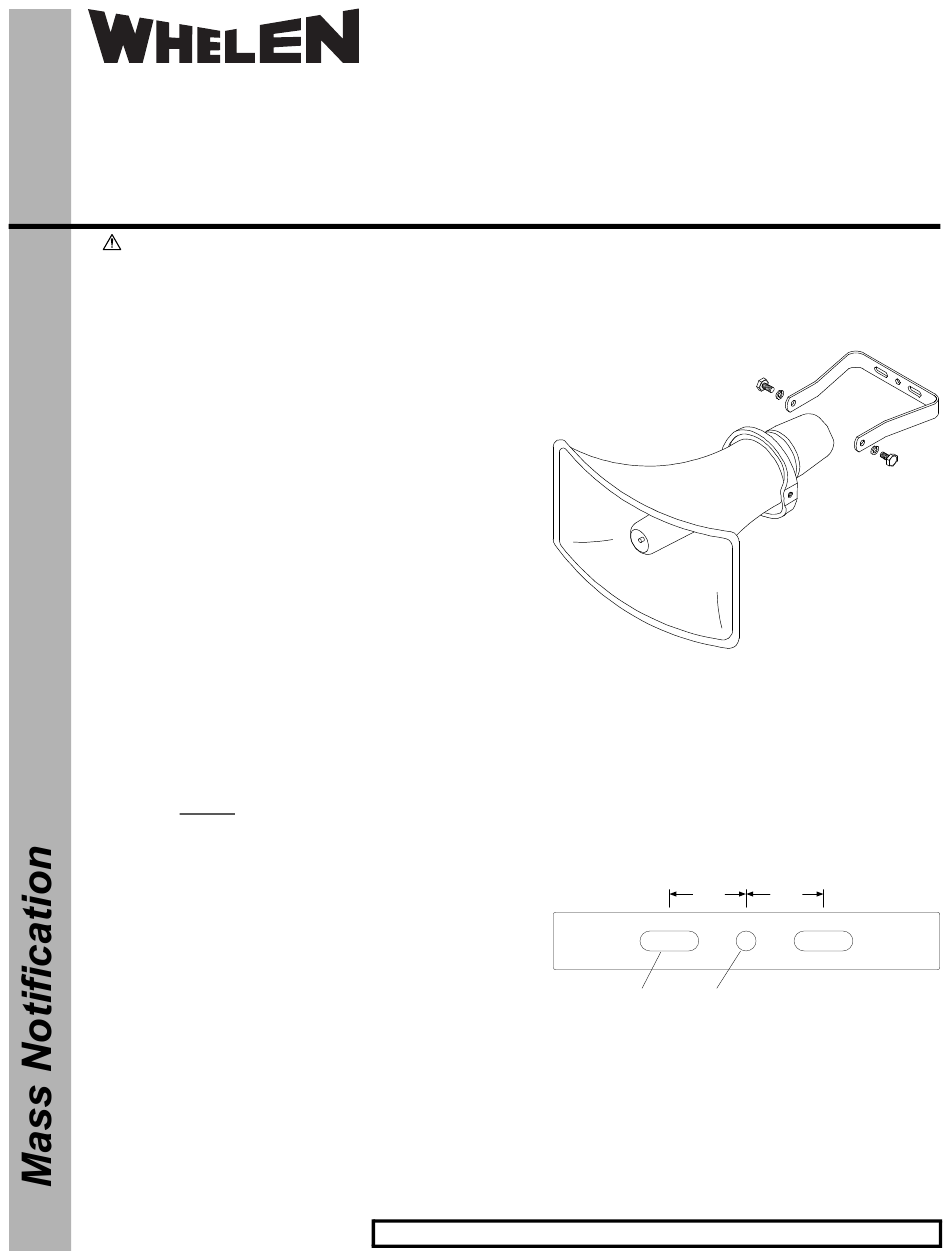

Whelen Model WS100TCH is a 100 watt speaker
assembly intended for use in personnel warning
applications, where weather-proof or rugged
installation is required.
The speaker flare is made from fiberglass, with a
spun aluminum re-entrant section. A cast
aluminum housing includes a tapped hole for a 1/
2" NPT fitting. A heavy-duty, painted steel
mounting bracket allows the installer to position
the speaker in a number of different ways.
An internal impedance matching transformer
allows the user to select Full power or reduced
power levels of 25, 10 5 or 2 watts.

Installation-

Determine the location of the speaker. Mount to a
rigid structure, using the supplied mounting
bracket. The bracket dimensions are shown in
the detail drawing. Position the speaker as
required. Do not position the speaker pointing
upward, if there is a possibility of filling with
water.
Mounting Bracket Detail
Remove the four Phillips Head #8-32 screws and
2.0" 2.0"
the 3" x 4" Access Plate on the back of the cast
housing. Install the speaker audio wires into the
housing via the 1/2" NPT through hole, using the
appropriate hardware. Typically, 1/2" conduit is
used. Using wire nuts, connect the speaker audio
1.53" x .53" SLOT .53" DIA
wires to the transformer wires. The Red wire is
speaker (+) and the Black wire is speaker (-).
select the desired power setting with the Red
driver wire on the terminal strip.
Re-install the Access Plate.
