Whelen Engineering Company WS100 Product Description

GENERAL-

Whelen Model WS100 is a 100 watt
speaker assembly intended for use in indoor
personnel warning applications, where high
sound level output is required.
The speaker flare is made from
fiberglass, with a spun aluminum re-entrant
section. A speaker driver, with wire leads, is
assembled to the speaker. A heavy duty, painted
steel mounting bracket allows the installer to
position the speaker in a number of different
ways.

INSTALLATION-

Determine the location of the speaker.
Mount to a rigid structure, using the supplied
mounting bracket. The bracket dimensions are
shown in the detail drawing. Position the speaker
as required. Do not position the speaker pointing
upward, if there is a possibility of filling with
water.
Using wire nuts, connect the speaker
audio wires to the speaker wires. The red wire is
speaker driver (+) and the black wire is speaker
driver (−).
PRODUCT DESCRIPTION
Model WS100, SPEAKER ASSEMBLY
Part # 01-1461899-00
Doc. # 04-0113161-00
PIONEERS IN WARNING SIGNALS
ENGINEERING COMPANY
Route 145, Winthrop Rd., Chester, CT 06412-0684
Tel.: (800) 63 SIREN
2.0"
1.53" x .53" SLOT .53" DIA

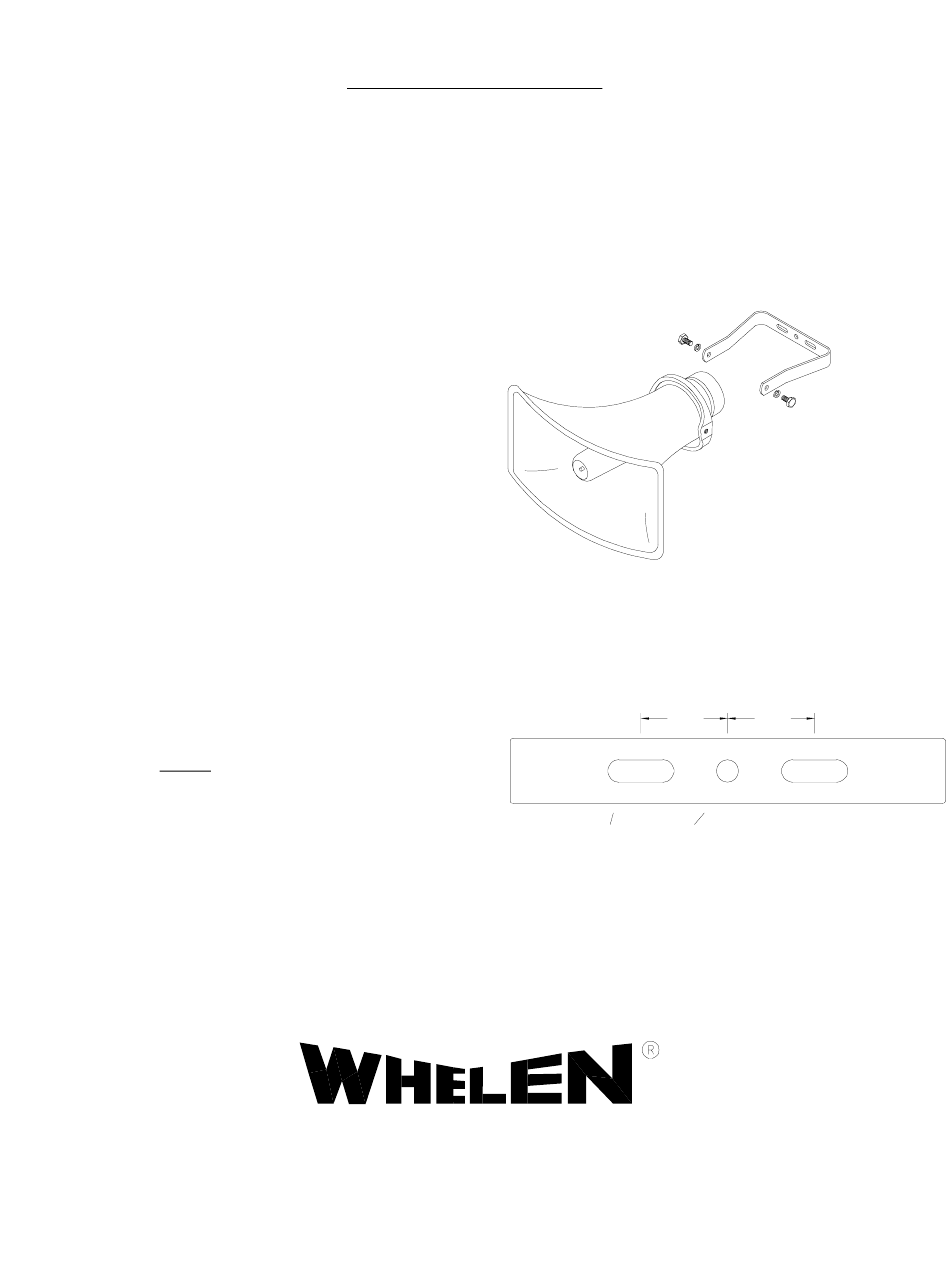

Mounting Bracket Detail
2.0"
