Whelen Engineering Company WS60T Assembly

®
ENGINEERING COMPANY INC.
51 Winthrop Road Model WS60T Speaker Assembly
P/N: 01-1461236-00
Chester, Connecticut 06412-0684
Phone: (860) 526-9504
Internet: www.whelen.com
Sales e-mail: Iowsales@whelen.com
Customer Service e-mail: iowserv@whelen.com

General-

Whelen Model WS60T is a 60 watt
speaker assembly intended for use in
indoor personnel warning applications,
where high sound level output is
required.
The speaker flare is made from
fiberglass, with a spun aluminum re-
entrant section. a speaker driver, with
wire leads, is assembled to the speaker.
A heavy-duty, painted steel mounting
bracket allows the installer to position the
speaker in a number of different ways.
An internal impedance matching
transformer allows the user to select
reduced power levels.

Installation-

Determine the location of the speaker.
Mount to a rigid structure, using the
supplied mounting bracket. The bracket

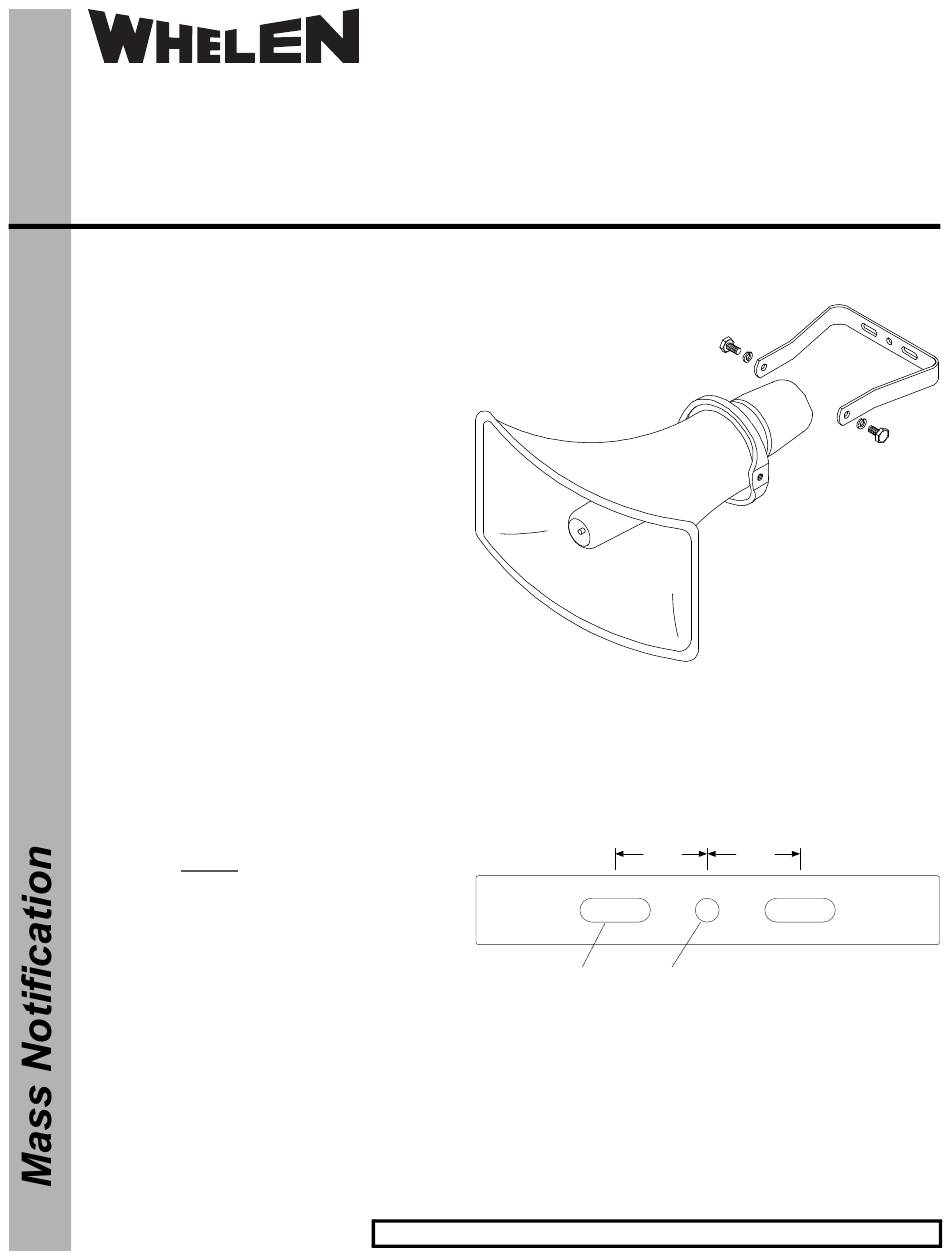

Mounting Bracket Detail
Dimensions are shown in the detail
drawing. Position the speaker as
2.0" 2.0"
required. Do not position the speaker
pointing upward, if there is a possibility of
filling with water.
Speaker connections are made by
removing the plastic cover and
1.53" x .53" SLOT .53" DIA
connecting one audio wire to the "-"
terminal and the other audio to the
desired tap terminal. The "+" terminal is
full power.
