Switching MGMT / PORT 1 Modes

The LIB-306 MGMT / PORT 1 is a normal data port, but by default it will be in a separate private VLAN that
you can remove. You can enable or disable out-of-band management on Port 1. Port 1 can be optionally
configured to support either out-of-band management or it can be used as a normal data UNI/NNI port.
By default, Port 1 is enabled as a management port with a default IP (192.168.0.1/24) and subnet mask.
By default, all ports are VLAN unaware and members of VLAN 1 and Private VLAN 1.
To configure Port 1 as a normal front panel data port, use the settings below.
Normal front port:
interface GigabitEthernet 1/1
!
Management Port:
interface GigabitEthernet 1/1
no pvlan 1
pvlan 6
no ip dhcp forwarding
no spanning-tree
!

Configure the Default Management Port as a Data Port

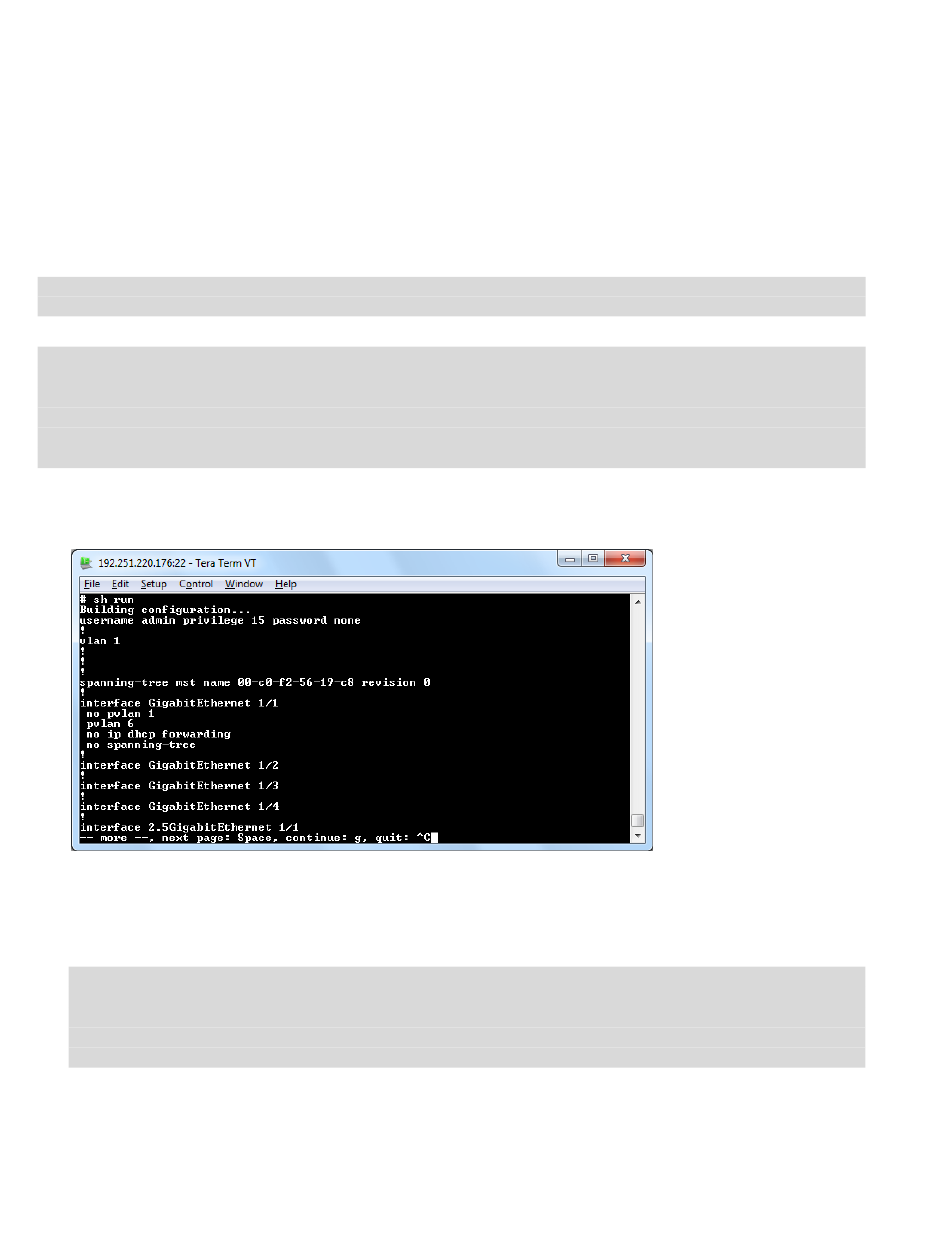

The GigabitEthernet 1/1 (MGMT / PORT 1) is configured as a Management Port by default:
Alternatively, any port can be designated as a Management port. To change GigabitEthernet 1/1 to act as a
data port:
1. Disable spanning-tree on the port designated for Management. Remove pvlan 1 from the new interface
and disable dhcp forwarding, and add pvlan6:
(config)# int Gi 1/2
(config-if)# no spanning-tree
(config-if)# no pvlan 1
(config-if)# no ip dhcp forwarding
(config-if)# pvlan 6
2. Physically connect to the newly designated Management port.
3. Enable pvlan 1 for the new port designated as a data port.
4. If necessary enable spanning-tree on the new data port.
Additional instructions for disabling management are provided in CLI and Web manuals.
