Front Panel

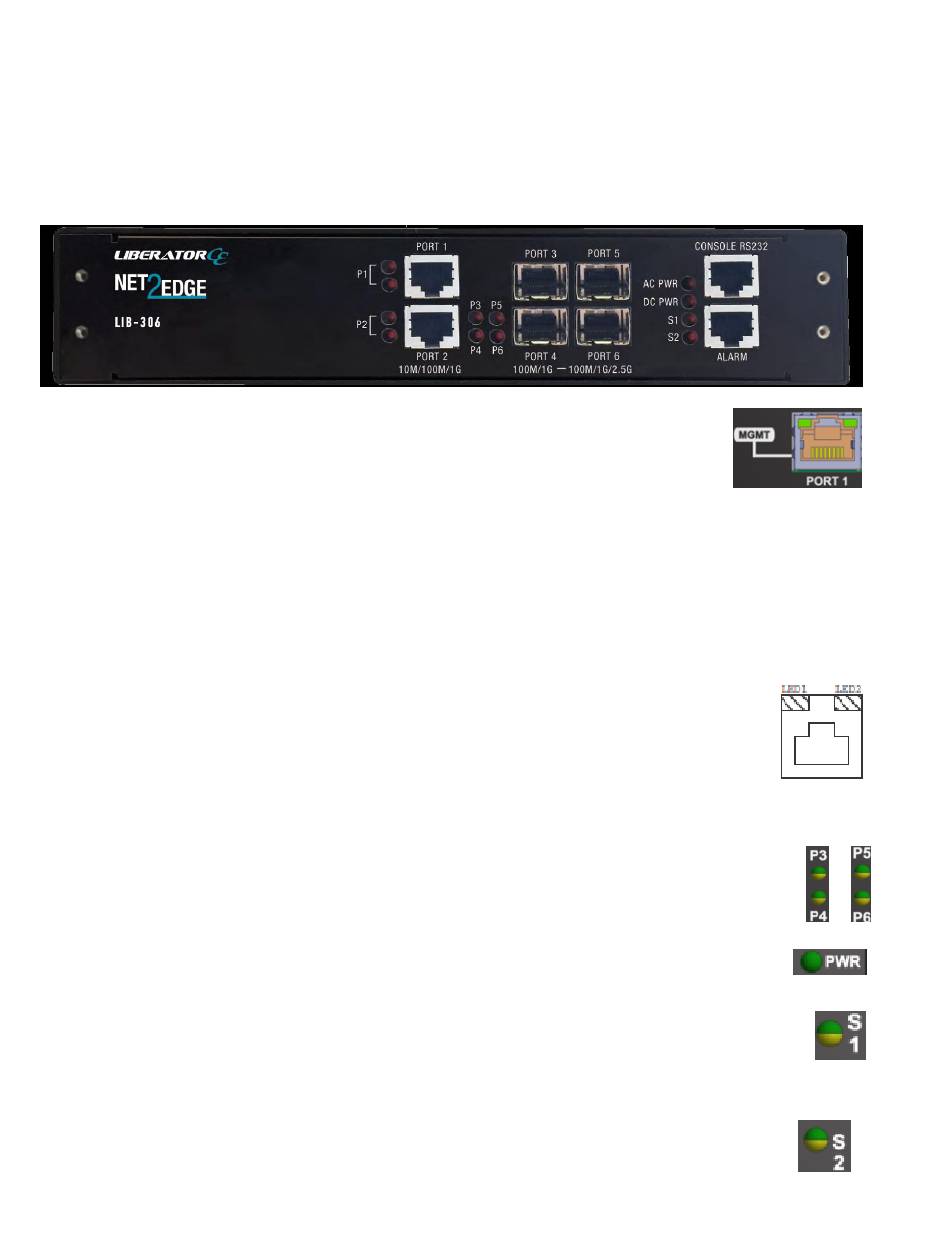

The LIB-306 front panels are shown and described below.
MGMT / PORT 1: Port1 (MGMT) is a normal data port, but by default it will be in a
separate private VLAN (PVLAN 1) that you can remove. You can enable or disable out-
of-band management on PORT 1. PORT 1 can be optionally configured to support
either out-of-band management or it can be used as a normal data UNI/NNI port.
See Connecting Via the MGMT Port / Web GUI on page 15. By default, PORT 1 is enabled as a
Management port with a default IP and subnet mask. See
disabling the management function and how to use the port as a normal data port are provided in the CLI
Reference and Web User Guide manuals.See also Switching MGMT / PORT 1 Modes on page
GigabitEthernet 1/1 (Port 1) is configured by default to act as a management port. This is achieved by
placing Port 1 in Private VLAN 6 which isolated traffic at layer 2 on this port from other front ports which are
by default placed into Private VLAN 1.
PORT 2 - PORT 4 (or PORT 1 & 2): Ethernet RJ-45 (10M/100M/1 Gbps) twisted pair ports (IEEE
10/100/1000Base-T interfaces). The Port 1 and Port 2 (or PORT 1-4) LEDs are shown and
described below:
LED1: Link/Activity/Duplex: ON = Link, OFF= No link
BLINK = Activity
Green = Full duplex, Yellow = Half duplex
LED2: Speed: Green = 1000Mbs, Yellow = 100Mbs, OFF = 10Mbs
PORT 5 & 6 (or PORT 3 - PORT 6 on the LIB-306-42): Two (or four) SGMII interfaces. The Serial Gigabit
Media-independent Interface (SGMII) interfaces can operate at multiple speeds of 100M/1G/2.5G bps.
P3 - P6 LED (P5 - P6 on the LIB-306-42): fiber link status. When lit in green, indicates a 1G fiber
link / activity. When lit in amber, indicates a 100M fiber link / activity. When off indicates no fiber
link established.
PWR LED: Green Power LED: On = power applied to the PC board. Flashes
S1 LED: System Status LED (Bi-color
During boot up –
Amber
Normal operation –
Green
Firmware upgrade – Flashes
Fatal condition logged – Flashes
S2 LED: S2 is used for alarms. You can set the alarm severity to Info, Warning, or Error.
The severity is included in the alarm message and also sets the S2 LED color when the alarm is
triggered. The S2 LED is amber for an Info alarm, red for a Warning alarm, and blinking red for
an Error alarm. If not set, the default alarm severity is Info. See the back panel
Install Guide Rev. D
Green and Amber):
Green
Amber
www.net2edge.com
Factory Defaults on page
Green
ALARMS
LIB-306 Install Guide
16. Full instructions for
18.
during LIB-306 boot up.
port
