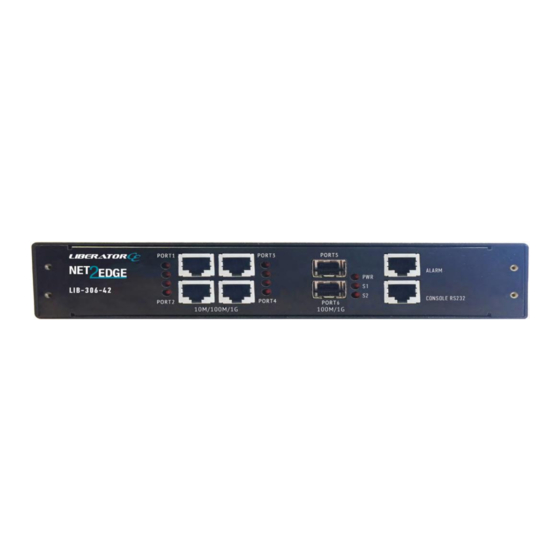

Net2Edge LIB-306 Install Manual

Carrier ethernet (ce) network interface device (nid)
Hide thumbs Also See for LIB-306:
Table of Contents

Advertisement

Quick Links

Download this manual

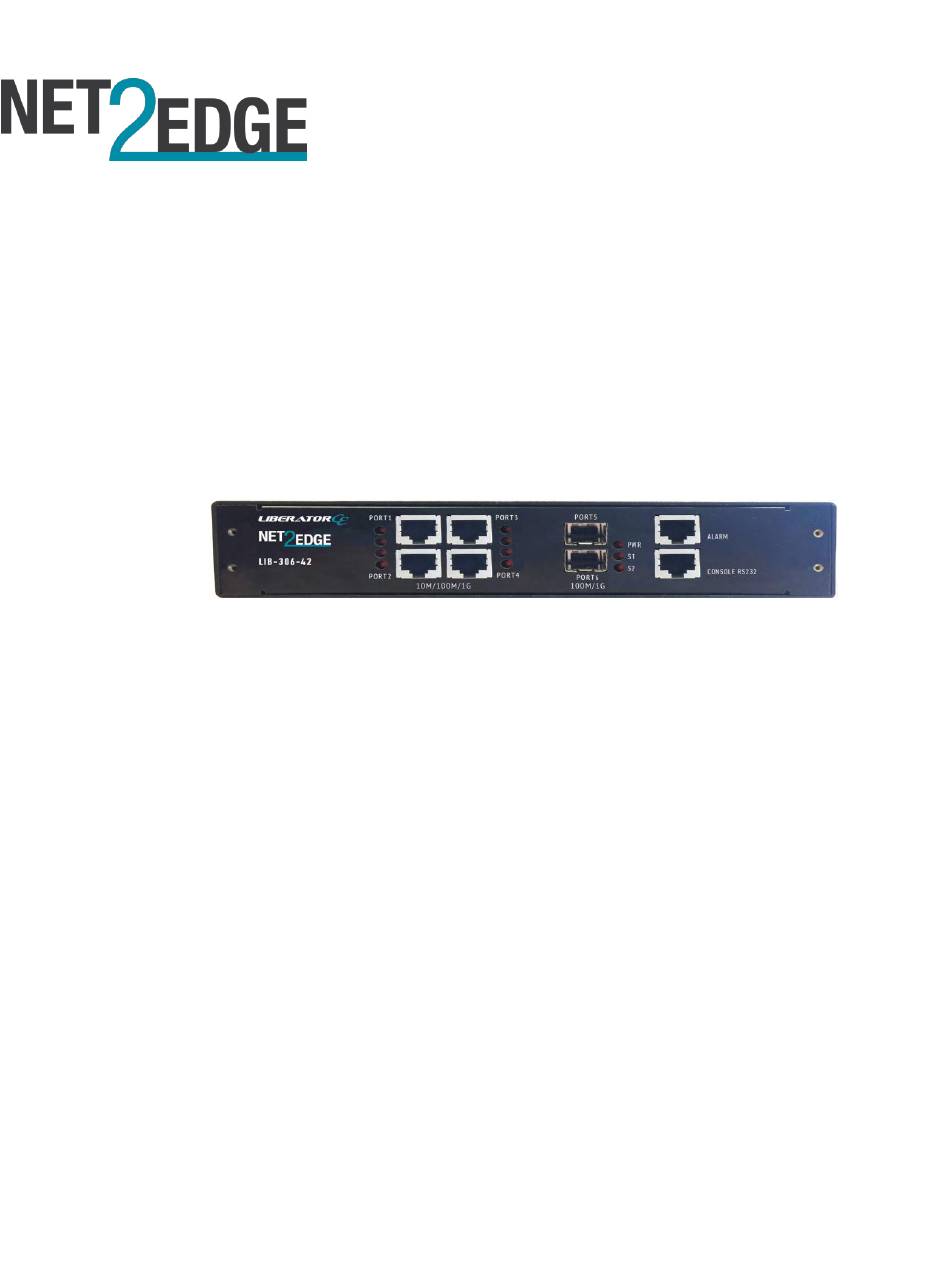

LIB-306
Carrier Ethernet (CE)
Network Interface Device (NID)
Install Guide
Rev. D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIB-306 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Net2Edge LIB-306

Summary of Contents for Net2Edge LIB-306

  • Page 1 LIB-306 Carrier Ethernet (CE) Network Interface Device (NID) Install Guide Rev. D...

  • Page 2: Safety Warnings And Cautions

    Anyone using this product in such an application without express written consent of an officer of Net2Edge does so at their own risk, and agrees to fully indemnify Net2Edge for any damages that may result from such use or sale.

  • Page 3: Table Of Contents

    Net2Edge LIB-306 Install Guide Table of Contents Safety Warnings and Cautions ........................2 1. Introduction ..............................4 Product Description ............................4 Models ................................4 Applications ..............................4 Features ................................ 6 Specifications ..............................7 Related Manuals and Help ..........................7 2. Installation ..............................8 Unpacking / Package Contents ........................

  • Page 4: Introduction

    SSL/SSH, RADIUS, TACACS+, Management VLAN and ACL rules. The LIB-306 offers AC or DC power inputs for operation in a variety of environments. The SFP ports are triple speed and support 100Mbps, 1000Mbps or SGMII SFPs. CWDM and Bi-Di SFPs are also supported, allowing for flexible network architectures.
  • Page 5 Net2Edge LIB-306 Install Guide CE Services Example Cloud Services Example E-LAN Services Example E-Line Services Example Install Guide Rev. D www.net2edge.com Page 5 of 25...

  • Page 6: Features

    Net2Edge LIB-306 Install Guide Features  Two/four 10/100/1000Mbps Base–T ports. Four/two 100/1000Mbps SFP ports. Any port can be network (NNI) or client (UNI).  Two of the SFP ports support a proprietary 2.5Gbps mode.  TP ports support IEEE 802.3az Energy Efficient Ethernet for power saving.

  • Page 7: Specifications

    Warranty: 1 Year Hardware warranty, 90 days Software warranty. Support: Support packages available for Technical Support, Hardware Support, Training, and Consulting. Related Manuals and Help The LIB-306 ships with a printed documentation postcard that points you to the online product documentation. The LIB-306 documentation set includes: ...

  • Page 8: Installation

    Deciding where to install the LIB-306 can greatly affect its performance. When selecting an installation location, consider the following:  Install the LIB-306 in a fairly cool and dry place. See the “Specifications” section (page 7) and the cautions below for the acceptable temperature and humidity ranges. ...

  • Page 9: Grounding And Wiring Recommendations

    LIB-306 Install Guide Grounding and Wiring Recommendations The LIB-306 can eliminate the effects of noise due to EMI via proper grounding. Always run the ground connection from the ground screw to the grounded surface before connecting power. The following wiring considerations are recommended: ...

  • Page 10: Front Panel

    LED2: Speed: Green = 1000Mbs, Yellow = 100Mbs, OFF = 10Mbs PORT 5 & 6 (or PORT 3 - PORT 6 on the LIB-306-42): Two (or four) SGMII interfaces. The Serial Gigabit Media-independent Interface (SGMII) interfaces can operate at multiple speeds of 100M/1G/2.5G bps.
  • Page 11 Error alarm. If not set, the default alarm severity is Info. You can use the LIB-306 web GUI or CLI to configure alarm contacts; see the related manual for details. The ALARMS port pinning and basic block diagram are shown below.

  • Page 12: Connecting Power

    You can connect LIB-306 power can be powered either via a DC or AC Source – or both. Note that when power is initially applied (or when power is recycled) the LIB-306 front panel LEDs all light for approximately 10 seconds. Some LEDs will remain lit, depending on the LIB-306 operating status and port connections.

  • Page 13: Installing Sfp Modules And Fiber Cables

    Net2Edge LIB-306 Install Guide Installing SFP Modules and Fiber Cables Warning Visible and invisible laser radiation when open: DO NOT stare into the beam or view the beam directly with optical instruments. Failure to observe this warning could result in an eye injury or blindness.

  • Page 14: Installing Copper Cables

    Not Connected Not Connected 2. Connect the RJ-45 connector at one end of the cable to the LIB-306 RJ-45 port. 3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 Ethernet network port. Install Guide Rev. D www.net2edge.com...

  • Page 15: Connecting Via The Serial Console / Cli

    Firefox  Google Chrome See the LIB-306 Web User Guide or the LIB-306 CLI Reference manual for details on configuration and management methods. To login using the serial interface (e.g., HyperTerminal) use the setup 115200, 8, none, 1, none. See the LIB-306 CLI Reference manual for details.

  • Page 16: Factory Defaults

    Note: after power up, the LIB-306 has DHCP enabled. If a DHCP server is available, the LIB-306 will obtain an IP address from the DHCP server. If no DHCP server is available, after 70 seconds, the LIB-306 will fall back to the default IP address of 192.168.0.1/24.

  • Page 17: Login Using Telnet

    In the user name field type “admin” (lowercase) and leave the password field empty (no password). Press the Enter key to launch the LIB-306 web GUI. See the LIB-306 Web User Guide manual for web GUI configuration, monitoring, diagnostics, and maintainance.

  • Page 18: Switching Mgmt / Port 1 Modes

    Switching MGMT / PORT 1 Modes The LIB-306 MGMT / PORT 1 is a normal data port, but by default it will be in a separate private VLAN that you can remove. You can enable or disable out-of-band management on Port 1. Port 1 can be optionally configured to support either out-of-band management or it can be used as a normal data UNI/NNI port.

  • Page 19: Product Registration

    “Operation” section of the LIB-306 Web User Guide manual. 8. If you can access the LIB-306 via PuTTY or HyperTerminal but not via the web interface, in config mode, enter the default keep_ip CLI command and try accessing the LIB-306 web interface again.
  • Page 20 Net2Edge Tech Support Specialist. 1. Select the LIB-306 Configuration > System > Information menu path. (From the CLI, use the show commands needed to gather the information below or as requested by the Net2Edge Support Specialist).
  • Page 21 The device history (i.e., have you returned the device before, is this a recurring problem, etc.): _________________________________________________________________________________ ________________________________________________________________________________ Any previous Return Material Authorization (RMA) numbers: _______________________________ Serial Label on LIB-306-24 Bottom Install Guide Rev. D www.net2edge.com Page 21 of 25...

  • Page 22: Service, Warranty And Tech Support

    In no event shall Net2Edge be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder. Net2Edge will in no case cover damages arising out of the product being used in a negligent fashion or manner.
  • Page 23 The customer must pay for the non-compliant product(s) return transportation costs to Net2Edge for evaluation of said product(s) for repair or replacement. Net2Edge will pay for the shipping of the repaired or replaced in-warranty product(s) back to the customer (any and all customs charges, tariffs, or/and taxes are the customer's responsibility).
  • Page 24 In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Net2Edge will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the ‘Contact Us’ portion of this document.
  • Page 25 Net2Edge LIB-306 Install Guide Electrical Safety Warnings Electrical Safety IMPORTANT: This equipment must be installed in accordance with safety precautions. Elektrische Sicherheit WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen erforderlich. Elektrisk sikkerhed VIGTIGT: Dette udstyr skal 25nstallers I overensstemmelse med sikkerhedsadvarslerne.
