Net2Edge PB-TDM1-CONTRA Quick Setup Manual

Contra-directional g.703 to ip converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

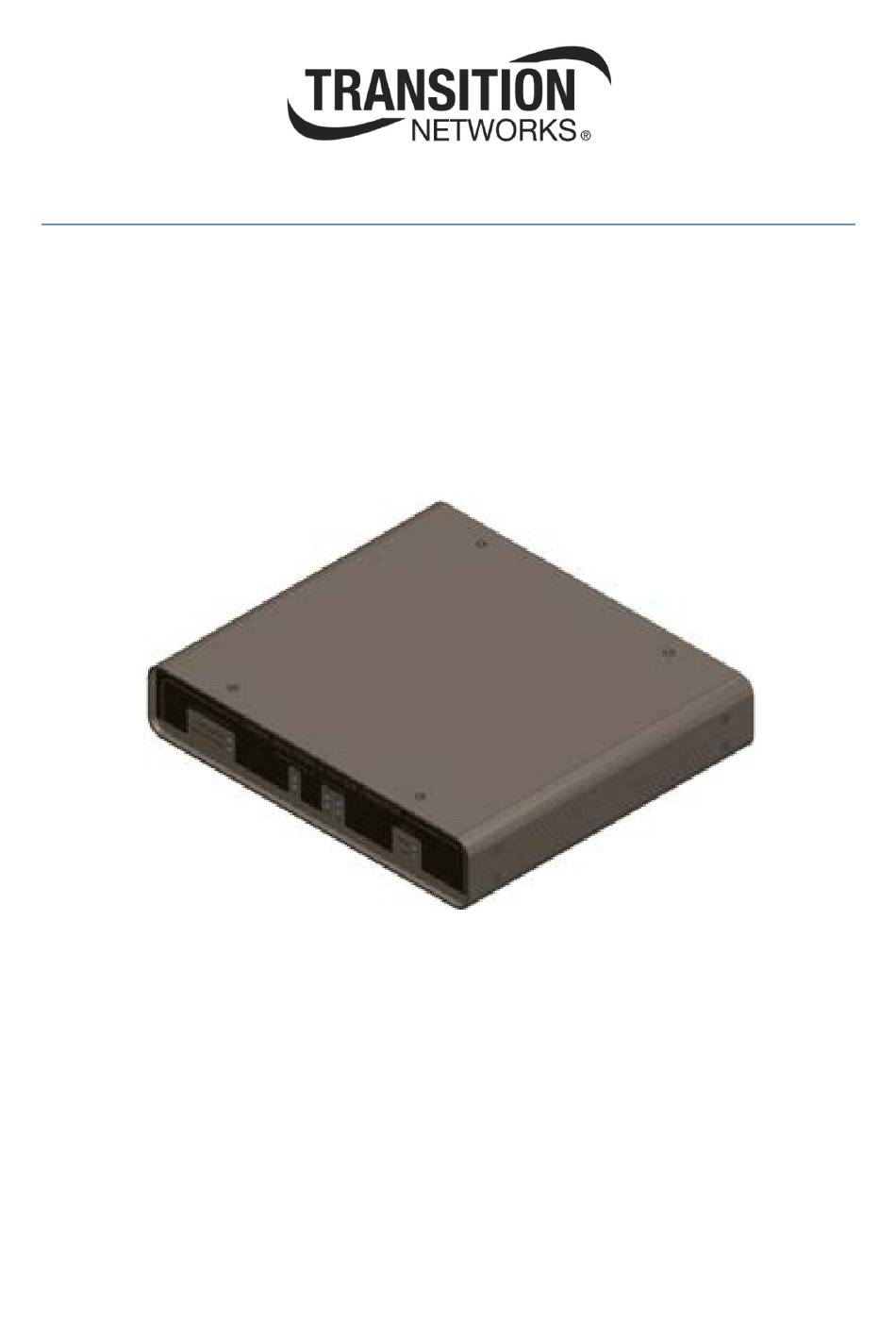

Contra-Directional G.703 to IP
Converter
Quick Setup Guide
33604 Rev. A

Advertisement

Table of Contents
loading

Related Manuals for Net2Edge PB-TDM1-CONTRA

Summary of Contents for Net2Edge PB-TDM1-CONTRA

  • Page 1 Contra-Directional G.703 to IP Converter Quick Setup Guide 33604 Rev. A...
  • Page 2 The information contained herein is confidential property of Transition Networks, Inc. The use, copying, transfer or disclosure of such information is prohibited except by express written agreement with Transition Networks, Inc. Printed in the U.S.A. PB-TDM1-CONTRA-W-AC Contra-Directional G.703 to IP Converter Quick Setup Guide, 33604 Rev. A Contact Information Transition Networks...

  • Page 3: Table Of Contents

    Transition Networks Contra Converter Quick Setup Guide Contents Introduction.............................. 5 Applications ............................5 Initial Configuration / Setup ........................6 Local IP Address/Subnet Mask/Default Gateway ............... 6 Logical Link Configuration ......................7 G.703 Port ........................... 8 Clocking ............................9 Additional Configuration ......................10 Startup Screen ............................
  • Page 4 Transition Networks Contra Converter Quick Setup Guide CES Debug Commands ........................ 66 Related CLI Commands ........................71 33604 Rev. A Page 4 of 72 www.transition.com...

  • Page 5: Introduction

    Transition Networks Contra Converter Quick Setup Guide Introduction The Contra Converter supplies a clock-locked 64K G.703 circuit over Ethernet, IP, or MPLS networks. The following sections detail the Contra Converter applications, IP address setup, Logical Link setup, G.703 port config, Clock config, some additional configuration, and Monitoring, Diagnostics, and Maintenance.

  • Page 6: Initial Configuration / Setup

    Transition Networks Contra Converter Quick Setup Guide Initial Configuration / Setup 1. Local IP Address/Subnet Mask/Default Gateway Contra Converter can initially be connected to using either CLI or via web browser using the default IP settings. Please see the Contra Converter Install Guide manual for details on how to connect via one of these methods.

  • Page 7: Logical Link Configuration

    Transition Networks Contra Converter Quick Setup Guide 2. Logical Link Configuration The Logical Link is the data connection between the two devices which will carry the 64K traffic across the packet network. The Contra Converter’s Logical Link must be configured with the remote Converter’s IP address in order for the traffic to be sent there.

  • Page 8: 3. G.703 Port

    Transition Networks Contra Converter Quick Setup Guide 3. G.703 Port This setting can be found via the Web GUI in Configuration > CES > Port Settings. The G.703 Contra port must be configured as either DCE or DTE. DCE mode is Network presentation. In this mode, Contra Converter’s G.703 port is acting as a Network which a User (DTE) presentation device will connect to.

  • Page 9: Clocking

    Transition Networks Contra Converter Quick Setup Guide 4. Clocking From the Web GUI, the Clocking configuration can be found in Configuration > CES > Clock Priorities. For any synchronous-based system, it is important that the devices follow a common clock reference.

  • Page 10: Additional Configuration

    Transition Networks Contra Converter Quick Setup Guide 5. Additional Configuration The PacketBand+ Web User Guide documents the PacketBand+ family Web GUI operation. Functions specific to the Contra Converter are described below. See the PacketBand+ Web User Guide manual for information not covered here. Startup Screen At initial GUI startup, the Port State Overview page displays with the current port state and status.

  • Page 11: Configuration Menu

    Transition Networks Contra Converter Quick Setup Guide Configuration Menu Navigate to Configuration > CES > Port Settings to configure the Contra Converter’s TDM ports. Configuration > CES > Port Settings This page shows the configuration of the TDM ports. The Contra Ports parameters are described below. Port The TDM port number.

  • Page 12: Configuration > Ces > Link > Settings

    Transition Networks Contra Converter Quick Setup Guide Configuration > CES > Link > Settings This page shows the Configuration for all Logical Links. The displayed items are: Link The logical link number. Name The optional name the user can configure for the logical link. Direction This allows the Link to be configured for Receive only, Transmit only, or allow both directions.
  • Page 13 Transition Networks Contra Converter Quick Setup Guide Jitter Buffer Length The Length of the Jitter Buffer. The default is 1. Jitter Packets Number of Jitter Packets (calculated from the Frames Per Packet and the Jitter Buffer Length). Start from Link The start Link number for the list of Links to be displayed on the page.

  • Page 14: Configuration > Ces > Link > Vlan

    Transition Networks Contra Converter Quick Setup Guide Configuration > CES > Link > VLAN This page lets you configure QOS and VLAN for all Logical Links. The displayed items are: Link The logical link number. Settings Name The optional name the user can configure for the logical link. QOS Type Type of Quality of Service for each Link (Diffserv or Type of Service).
  • Page 15 Transition Networks Contra Converter Quick Setup Guide Buttons Save: Click to save changes. Reset: Click to undo any changes made locally and revert to previously saved values. |<<: Click to display the first page. NB Unsaved changes on the current page will be lost. <<: Click to display the previous page.

  • Page 16: Configuration > Ces > Link > Automatic Jitter Adjust

    Transition Networks Contra Converter Quick Setup Guide Configuration > CES > Link > Automatic Jitter Adjust This page displays the current CES auomatic jitter buffer adjustment configuration for logical links and allows the configuration to be modified. The parameters are described below. Link The logical link number.
  • Page 17 Transition Networks Contra Converter Quick Setup Guide Buttons Save: Click to save changes. Reset: Click to undo any changes made locally and revert to previously saved values. |<<: Click to display the first page. NB Unsaved changes on the current page will be lost. <<: Click to display the previous page.

  • Page 18: Configuration > Ces > Link > Schedule

    Transition Networks Contra Converter Quick Setup Guide Configuration > CES > Link > Schedule This page displays the current CES schedule configuration for logical links and allows the configuration to be modified. Schedules are used to control when a logical link will be active. Note that other factors may also affect making the link active (e.g., network connectivity and TDM port availability).

  • Page 19: Configuration > Ces > Protocol

    Transition Networks Contra Converter Quick Setup Guide Configuration > CES > Protocol This page shows the Protocol Configuration of the LAN ports. The displayed items are: Protocol Type The protocol type used for CES frames (UDP/RTP, IP, or Ethernet). Changing this setting requires a reboot.
  • Page 20 Transition Networks Contra Converter Quick Setup Guide provide a true representation of the network and do not generate the specific packet profile required by Mode 2. Users of simulator and simulation packages should be aware that Clock Mode 2 may not be suitable. •...

  • Page 21: Configuration > Ces > Multicast

    Transition Networks Contra Converter Quick Setup Guide SSRC Checking Enable/Disable SSRC Checking if IP Protocol Type selected. The SSRC (Synchronization source identifier) uniquely identifies the source of a stream. The synchronization sources within the same RTP session will be unique. For logical links that are not idle, changes take effect the next time the link is restarted.

  • Page 22: Configuration > Ces > Event Reporting

    Transition Networks Contra Converter Quick Setup Guide Configuration > CES > Event Reporting This page shows the Configuration of the Event Reporting. The displayed items are: Event Reporting Threshold Event Severity Reporting Threshold (1 - 5). All CES events have an associated priority from 1 (most important) to 5 (least important).

  • Page 23: Configuration > Ces > Clock Priorities

    Transition Networks Contra Converter Quick Setup Guide Configuration > CES > Clock Priorities This page displays current CES clock priority configurations. The table gives the relative priority of each CES clock source. The displayed items are: Clock Source The name of the clock source (Internal, TDM port 1, and Logical link 1 - Logical link 4). Clock Priority The priority for this clock source in the range 0 to 19.

  • Page 24: Monitoring

    Transition Networks Contra Converter Quick Setup Guide Monitoring Monitor > System Information Monitor > Log 33604 Rev. A Page 24 of 72 www.transition.com...

  • Page 25: Monitor > Ces > Ports > State

    Transition Networks Contra Converter Quick Setup Guide Monitor > CES > Ports > State This page shows the status of the TDM ports. It also allows any active TDM over IP calls on those ports to be dropped. The displayed items are: Port The TDM port number.

  • Page 26: Monitor > Ces > Ports > Loops

    Transition Networks Contra Converter Quick Setup Guide Monitor > CES > Ports > Loops This page shows the status of loops on TDM ports and allows them to be switched on and off. The displayed items are: Port The TDM port number. Local loop Button showing whether local loop for this port is on or off.

  • Page 27: Monitor > Ces > Links > Summary

    Transition Networks Contra Converter Quick Setup Guide Monitor > CES > Links > Summary This page shows a summary of the active logical links. The displayed items are: Link The logical link number. Click on the logical link number to go to the detailed page for that link.

  • Page 28: Monitor > Ces > Links > Detailed

    Transition Networks Contra Converter Quick Setup Guide Monitor > CES > Links > Detailed This page shows the status information for a logical link. The displayed items are: Status Activity Active indicates that the link is active. TDM over IP packets will be transmitted and accepted (depending on the configuration).
  • Page 29 Transition Networks Contra Converter Quick Setup Guide Queue lengths The minimum number of packets that were ever in the jitter buffer since the logical link became active. The maximum number of packets that were ever in the jitter buffer since the logical link became active.
  • Page 30 Transition Networks Contra Converter Quick Setup Guide Buttons Refresh: Click to refresh the page immediately. Auto-refresh : Check this box to refresh the page automatically every 3 seconds. Clear: Click to reset the error statistics to zero for this logical link. Link 1 : Choose which link to display.

  • Page 31: Monitor > Ces > Report

    Transition Networks Contra Converter Quick Setup Guide Monitor > CES > Report This page shows various CES status and statistical information. The displayed items are: CESoP Processor Version Hardware and software version information for the CES functionality in the following format: 04 06 061df8a5 00000000 ZL50117 2.5.0 - Mon Feb 1 2010 15:41:00 Protocol Match Statistics Shows the number of received packets which have been identified as TDM over IP for CES...

  • Page 32: Monitor > Ces > Calls

    Transition Networks Contra Converter Quick Setup Guide Monitor > CES > Calls This page shows a summary of the active CES calls. On ISDN products, these calls represent real ISDN calls that have been made to or from the box. On TDM products, these calls are purely an internal mechanism.

  • Page 33: Monitor > Ces > Clocking > Summary

    Transition Networks Contra Converter Quick Setup Guide Monitor > CES > Clocking > Summary This page shows the overall clocking status for the CES. The displayed items are: CES Clocking Status Lock Mode The master DPLL lock mode in the CES hardware (e.g., Normal). Mode Type Slave or Master mode for ISDN clocking.
  • Page 34 Transition Networks Contra Converter Quick Setup Guide The current digitally controlled oscillator (DCO) clock frequency (PPB) for this stream (e;g., Inactive). Min DCO The minimum DCO value seen for this stream whilst the logical link has been active. Max DCO The maximum DCO value seen for this stream whilst the logical link has been active.

  • Page 35: Monitor > Ces > Clocking > History > Table

    Transition Networks Contra Converter Quick Setup Guide Monitor > CES > Clocking > History > Table This page shows the clock recovery statistics for a CES clock stream. The table shows changes in the status for up to the last eight hours. The displayed items are: Time How long ago the statistic was recorded.

  • Page 36: Monitor > Ces > Clocking > History > Graph

    Transition Networks Contra Converter Quick Setup Guide Monitor > CES > Clocking > History > Graph This page shows a graph of the DCO value for a CES clock stream for up to the last eight hours. Please note that older browsers may not support this feature. The horizontal axis is time, ordered from oldest to latest.
  • Page 37 Transition Networks Contra Converter Quick Setup Guide Buttons Stream 1 : Choose which clock stream to display (1-4). Snapshot: Click to download a snapshot of the graph in PNG format. Auto-refresh : Check this box to refresh the page automatically every 3 seconds. Refresh: Click to refresh the page immediately.

  • Page 38: Monitor > Ces > Temperature

    Transition Networks Contra Converter Quick Setup Guide Monitor > CES > Temperature This page shows the current temperature measurements for the circuit board and processor chip. Buttons Auto-refresh : Check this box to refresh the page automatically every 3 seconds. Refresh: Click to refresh the page immediately.

  • Page 39: Diagnostics

    Transition Networks Contra Converter Quick Setup Guide Diagnostics Diagnostics > VeriPHY Maintenance Maintenance > Software > Image Select 33604 Rev. A Page 39 of 72 www.transition.com...

  • Page 40: Maintenance > Configuration > Backup Binary

    Transition Networks Contra Converter Quick Setup Guide Maintenance > Configuration > Backup Binary Maintenance > Configuration > Restore Binary 33604 Rev. A Page 40 of 72 www.transition.com...

  • Page 41: Cli Command Summary

    Transition Networks Contra Converter Quick Setup Guide CLI Command Summary Login and Help (?) Commands Telnet HyperTerminal admin login as: admin@172.16.20.74's password: Welcome to the Command Line Interface (v1.0). Type 'help' or '?' to get help. help > General Commands: ----------------- Help/?: Get help on a group or a specific command : Move one command level up...

  • Page 42: Ces Commands

    Transition Networks Contra Converter Quick Setup Guide CES Commands List the command groups using the Help command >Help General Commands: ----------------- Help/?: Get help on a group or a specific command : Move one command level up Logout: Exit CLI Command Groups: --------------- System...

  • Page 43: List The Ces Commands

    Transition Networks Contra Converter Quick Setup Guide List the CES commands >ces ? Available Commands: 1. CES port configuration [<port>] 2. CES port setup <port> [dce|dte] [yes|no] 3. CES port status [<port>] 4. CES port loop [<port>] [local|remote] [enable|disable] 5. CES port break calls <port> 6.

  • Page 44: Ces Port Commands

    Transition Networks Contra Converter Quick Setup Guide CES Port Commands CES port configuration [<port>] CES port setup <port> [dce|dte] [yes|no] CES port status [<port>] CES port loop [<port>] [local|remote] [enable|disable] CES port break calls <port> Command: CES Port Config Syntax: ces port config [<port>] Description: Show the TDM port configuration for the specified port or for all ports, where:...
  • Page 45 Transition Networks Contra Converter Quick Setup Guide Command: Show CES Port Status Syntax: ces port status [<port>] Description: Display the current CES port status. Example: Display the current status for CES port 1: >ces port status 1 TDM Port 1 Status ================== Port State : CONTRA DCE...

  • Page 46: Ces Link Commands

    Transition Networks Contra Converter Quick Setup Guide CES Link Commands CES link configuration [<link>] CES link setup name <link> [<name>] CES link setup remote <link> [disable|both|rxonly|txonly] [<remoteip>] [<remotelink>] [<remoteip2>] CES link setup misc <link> [<fpp>] [<jitterlen>] [diffserv|tos] [<qosvalue>] CES link setup vlan <link> [tag|notag] [<vlanid>] [<vlanpriority>] CES link setup schedule <link>...
  • Page 47 Transition Networks Contra Converter Quick Setup Guide Command: CES Link Setup Name Syntax: CES link setup name <link> [<name>] Description: Set or delete the name associated with a logical link, where: <link>: Logical Link number (1 to 128, may be less on some products). <name>: Logical Link Name.
  • Page 48 Transition Networks Contra Converter Quick Setup Guide Command: Set Up Remote CES Link Syntax: CES link setup remote <link> [disable|both|rxonly|txonly] [<remoteip>] [<remotelink>] [<remoteip2>] Description: Update the remote configuration parameters of a logical link, where: <link> : Logical Link number (1 to 128, may be less on some products) disable|both|rxonly|txonly: Logical Link Direction <remoteip>...
  • Page 49 Transition Networks Contra Converter Quick Setup Guide Command: Set Up Misc CES Link Parameters Syntax: CES link setup misc <link> [<fpp>] [<jitterlen>] [diffserv|tos] [<qosvalue>] Description: Update the miscellaneous configuration parameters of a logical link, where: <link> : Logical Link number (1 to 128, may be less on some products). <fpp>...
  • Page 50 Transition Networks Contra Converter Quick Setup Guide Command: Setup CES Link VLAN Syntax: CES link setup vlan <link> [tag|notag] [<vlanid>] [<vlanpriority>] Description: Update the VLAN configuration parameters of a logical link, where: <link> : Logical Link number (1 to 128, may be less on some products). tag|notag : Whether to VLAN tag Ethernet frames.
  • Page 51 Transition Networks Contra Converter Quick Setup Guide Command: Set Up CES Link Active Schedule Syntax: ces link setup schedule <link> [enable|disable] [<mon_start>] [<mon_stop>] [<tue_start>] [<tue_stop>] [<wed_start>] [<wed_stop>] [<thu_start>] [<thu_stop>] [<fri_start>] [<fri_stop>] [<sat_start>] [<sat_stop>] [<sun_start>] [<sun_stop>] Description: Update the schedule of when a logical link will be active, where: <link>...
  • Page 52 Transition Networks Contra Converter Quick Setup Guide Command: Set Up CES Link Jitter Adjustment Schedule Syntax: ces link setup jitter <link> [<adjustafter>] [none|alwayson|schedule|onceonly] [<mon_start>] [<mon_stop>] [<tue_start>] [<tue_stop>] [<wed_start>] [<wed_stop>] [<thu_start>] [<thu_stop>] [<fri_start>] [<fri_stop>] [<sat_start>] [<sat_stop>] [<sun_start>] [<sun_stop>] Description: Update the automatic jitter buffer adjustment configuration for a logical link, where: <link>...
  • Page 53 Transition Networks Contra Converter Quick Setup Guide Command: Nudge CES Link Jitter Syntax: ces link jitter nudge <link> <packets> Description: Manually nudge a logical link jitter buffer to increase or decrease latency, where: <link> : Logical Link number (1 to 128, may be less on some products). <packets>: How many packets to nudge by (-128 to 128).
  • Page 54 Transition Networks Contra Converter Quick Setup Guide Command: Display CES Link Status Syntax: ces link status [<link>] Description: Display the current status of a specified logical link or all logical links, where: <link>: Logical Link number (1 to 128, may be less on some products). Example: Display the status of a specified logical link and all logical links: >ces link status 1...

  • Page 55: Ces Lan Commands

    Transition Networks Contra Converter Quick Setup Guide CES LAN Commands CES lan configuration CES lan setup [ip|udprtp|ethernet] [<mode_no>] [<filter_type>] [ssrc|nossrc] [<udp_no>] [<ppm_tol>] [lastbyte|fixedbyte] [<bytesused>] CES lan multicast setup [<multicast_group>] CES lan multicast del Command: Display CES LAN Configuration Syntax: ces lan configuration Description: Display the current CES network configuration.
  • Page 56 Transition Networks Contra Converter Quick Setup Guide Command: Configure CES LAN Syntax: ces lan setup [ip|udprtp|ethernet] [<mode_no>] [<filter_type>] [ssrc|nossrc] [<udp_no>] [<ppm_tol>] [lastbyte|fixedbyte] [<bytesused>] Description: Update the CES network configuration, where: ip|udprtp|ethernet: Pseudo-wire Protocol Type. <mode_no> : Clock Recovery Mode (1-3). <filter_type>...
  • Page 57 Transition Networks Contra Converter Quick Setup Guide Command: Configure CES LAN Multicast Setup Syntax: ces lan multicast setup [<multicast_group>] Description: Display or update the multicast group configuration. Defines an optional multicast group to join. The Multicast Group Address must be in the range 224.0.0.0 to 239.255.255.255 (use 0.0.0.0 to delete).

  • Page 58: Ces Clock Commands

    Transition Networks Contra Converter Quick Setup Guide CES Clock Commands CES clock priority configuration CES clock priority internal <priority> CES clock priority port <port> <priority> CES clock priority stream <stream> <priority> Command: Display CES Clock Priority Configuration Syntax: ces clock priority config Description: Display the current clock source priority configuration.
  • Page 59 Transition Networks Contra Converter Quick Setup Guide Command: Configure CES Clock Source Priority for a Port Syntax: ces clock priority port <port> <priority> Description: Update the clock source priority configuration for a TDM port, where: <port> : TDM Port Number. <priority>: Clock Source Priority value (0-19).

  • Page 60: Ces Status / Event Commands

    Transition Networks Contra Converter Quick Setup Guide CES Status / Event Commands CES status report CES status link [<link>] CES status call CES status clock [<stream>] CES status temperature CES event report [<threshold>] [<interval>] [<early>] [<late>] [<underrun>] [<dco>] Command: Display CES Status Report Syntax: ces status report Description:...
  • Page 61 Transition Networks Contra Converter Quick Setup Guide Command: Display CES Status Link Syntax: ces status link [<link>] Description: Show the status for the specified logical link or for all logical links, where: <link>: Logical Link number (1 to 128, may be less on some products). Example: Display the status for logical link 1 and for all logical links: >ces status link 1...
  • Page 62 Transition Networks Contra Converter Quick Setup Guide Command: Display CES Clock Status Syntax: ces status clock [<stream>] Description: Shows the clock recovery summary or the clock recovery statistics for the specified stream. Status of the clock recovery on the stream can be: Freerun indicates that the clock is not being derived from any remote clock.
  • Page 63 Transition Networks Contra Converter Quick Setup Guide >ces status clock 2 Clock Recovery Statistics for CLock Stream 2 ============================================ 00:00 Stream 2 Freerun > Example 2: Display the current CES Clocking status: >ces status clock CES Clocking Status =================== Lock Mode: Normal Mode Type: Master...
  • Page 64 Transition Networks Contra Converter Quick Setup Guide Command: CES Event Report Syntax: ces event report [<threshold>] [<interval>] [<early>] [<late>] [<underrun>] [<dco>] Description: Show or update the CES event reporting configuration, where: <threshold>: Event Reporting Threshold ( 0 - 5). <interval> : Reporting Interval ( 1 - 1440) in minutes (60 = 1 hour, 1440 = 1 day). <early>...
  • Page 65 Transition Networks Contra Converter Quick Setup Guide Event Reporting Interval: 60 mins Early Packets Threshold: Late Packets Threshold: Underrrun Threshold: DCO Threshold: >ces event report early WARNING ======= Event Threshold must be between 1 and 5 (inclusive). Entered value not saved. CES Event Reporting =================== Event Reporting Threshold:...
  • Page 66 Transition Networks Contra Converter Quick Setup Guide CES Debug Commands CES debug display CES debug on [all|tdm|link|control|arp|sip|llcont|llglob] [<value>] CES debug off [all|tdm|link|control|arp|sip|llcont|llglob] [<value>] CES debug configuration Command: Display CES Debug Settings Syntax: ces debug display Description: Display the current debug settings. Example: Display the current debug settings: >ces debug display...
  • Page 67 Transition Networks Contra Converter Quick Setup Guide Command: Turn CES Debug Mode On Syntax: CES debug on [all|tdm|link|control|arp|sip|llcont|llglob] [<value>] Description: Turn on debug for a specified category, where: all|tdm|link|control|arp|sip|llcont|llglob: Specific Debug type (category). <value> : Debug Value Example 1: Turn on Debug mode globally: >ces debug on CES Debug settings ==================...
  • Page 68 Transition Networks Contra Converter Quick Setup Guide Example 2: Turn on Debug mode for TDM only: >ces debug on tdm CES Debug settings ================== TDM 1 Interface : ON Logical Link : OFF Logical Link : OFF Logical Link : OFF Logical Link : OFF Logical Link...
  • Page 69 Transition Networks Contra Converter Quick Setup Guide Command: Turn CES Debug Mode Off Syntax: CES debug off [all|tdm|link|control|arp|sip|llcont|llglob] [<value>] Description: Turn off debug for the specified category, where: all|tdm|link|control|arp|sip|llcont|llglob: Debug type (category). <value> : Debug Value Example: Turn debug mode off globally. >ces debug off CES Debug settings ==================...
  • Page 70 Transition Networks Contra Converter Quick Setup Guide Command: CES Debug Configuration Syntax: ces debug configuration Description: Display the current CES Debug configuration: Example: Display the current CES Debug config (partial display shown): rx 640 tx 640 filter 1 plesio 1 asym 0 remote 29 LL 30 ""...
  • Page 71 Transition Networks Contra Converter Quick Setup Guide Related CLI Commands Command: Show System Config Syntax: show system config Description: Display the current Contra Converter system config parameters: Example: Display the current parameters: >sys conf System Contact System Name System Location : ZTP Auto Disc : Enabled (ZTP not completed)
  • Page 72 Transition Networks Contra Converter Quick Setup Guide Transition Networks 10900 Red Circle Drive Minnetonka, MN 55343 USA Tel: 952- 941-7600 or 1-800-526-9267 Fax: 952-941-2322 Copyright© 2014 Transition Networks All rights reserved. Printed in the U.S.A. Contra-Directional G.703 to IP Converter Quick Setup Guide, 33604 Rev. A 33604 Rev.
