Net2Edge
Installing Copper Cables

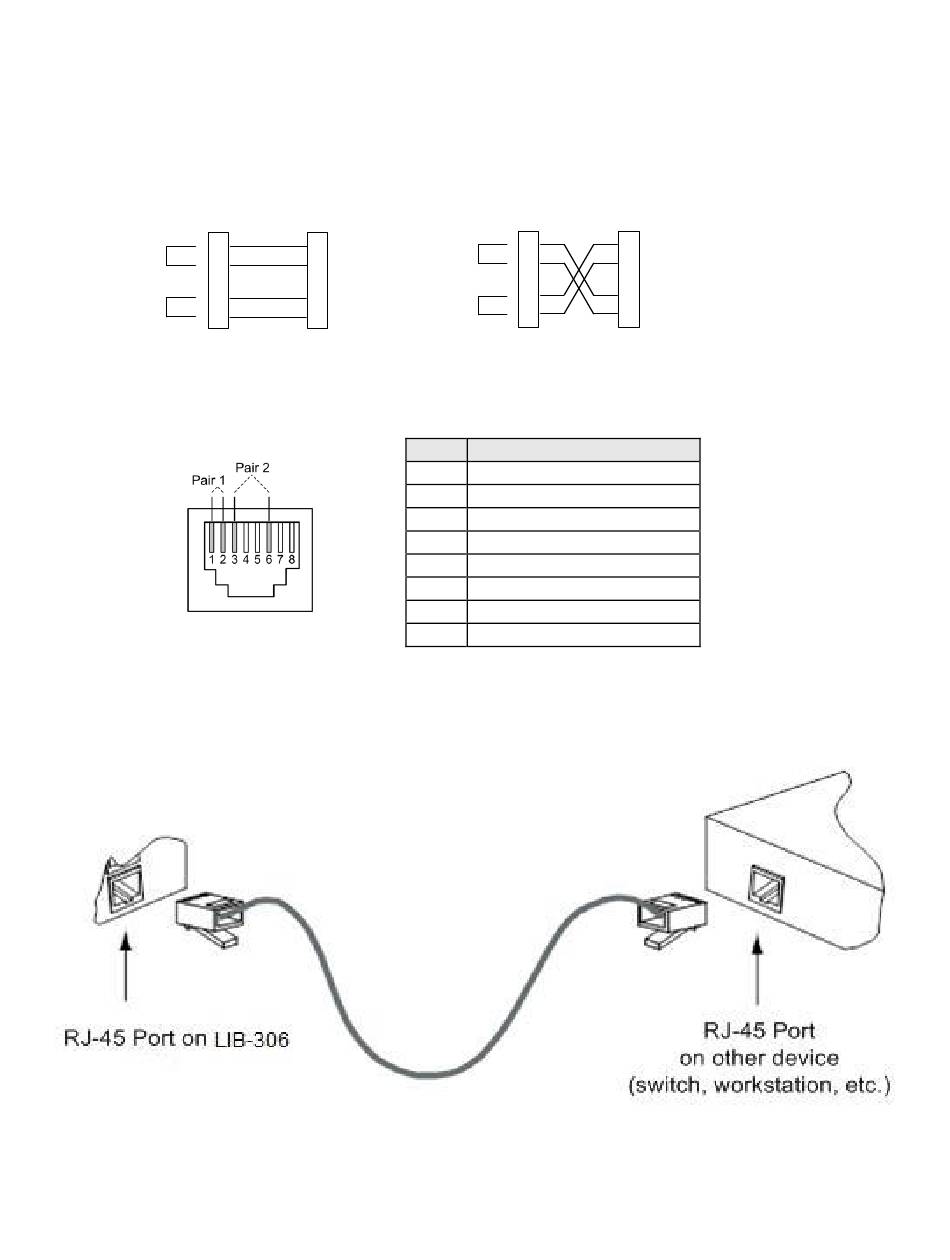

Copper Cable Configuration
Depending on the equipment type, data terminal equipment (DTE) or data communication equipment
(DCE), use a crossover or straight-through cable. See figure below.
Straight-Through Cable
1
Twisted Pair #1
2
3
Twisted Pair #2
6
Connecting Ethernet Cables
1. Locate or build an IEEE 802.3 compliant cable with male RJ-45 connectors installed at both ends as
shown below.
2. Connect the RJ-45 connector at one end of the cable to the LIB-306 RJ-45 port.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 Ethernet network port.
Install Guide Rev. D
1
Twisted Pair #1
2
3
Twisted Pair #2
6
Pin
Out Jack Pin Assignments
1
Outgoing Data 1 (+)
2
Outgoing Data 2 (-)
3
Incoming Data 1 (+)
4
Not Connected
5
Not Connected
6
Incoming Data 2 (-)
7
Not Connected
8
Not Connected
www.net2edge.com
LIB-306 Install Guide
Crossover Cable
1
1
2
2
3
3
6
6
Page 14 of 25
