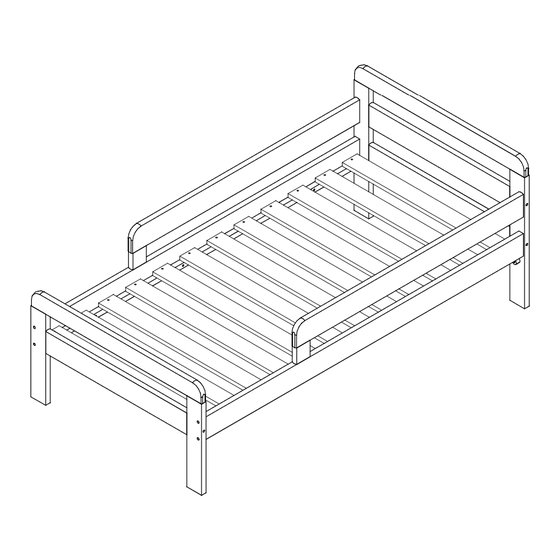

White Toddler bed - 140x70cm
Assembly Instructions
- Please keep for future reference
4277891
Dimensions
Length - 144cm
Depth - 75cm
Height - 57cm
Weight - 13kg
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
0045 7668 8055 or e-mail: order@fl exa.dk
Issue 1 - 11/05/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos White Toddler bed 4277891
Summary of Contents for Argos White Toddler bed 4277891
- Page 1 White Toddler bed - 140x70cm Assembly Instructions - Please keep for future reference 4277891 Dimensions Length - 144cm Depth - 75cm Height - 57cm Weight - 13kg Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0045 7668 8055 or e-mail: order@fl...
-
Page 2: Important! Keep For Future Reference
Safety and Care Advice Important – Please read these instructions fully before starting assembly 80-12801-20 Toddler bed IMPORTANT! KEEP FOR FUTURE REFERENCE PLEASE DISPOSE OF PACKAGING MATERIAL. PLASTIC BAGS CAN BE DANGEROUS TO YOUNG CHILDREN WARNING! This bed is suitable for a child from 18 months to 4 years. WARNING! Do not place this child’s bed near heat sources, windows and other furniture. - Page 3 Safety and Care Advice Important – Please read these instructions fully before starting assembly • We do not • Check you have all the • Do not stand or put weight on recommend the components and tools listed on the product, this could cause use of power pages 2 and 3.
-
Page 4: Components - Parts
Components - Parts If you have damaged or missing components, call the Customer Helpline: 0045 7668 8055 Please check you have all the parts listed below Leg short x2 Leg long x2 Top rail x2 (34.7x6.5x2.0cm) (49.9x6.5x2.0cm) (75x6.5x2.0cm) No. 12-02003472-20 No. - Page 5 Components - Fittings Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. No. 3903-40035 No. 3909-631051 No.
- Page 6 Assembly Instructions Step 1 Place distance pieces and legs so that the top holes are facing upwards. Apply glue into the holes of distance pieces and legs DO NOT APPLY TOO MUCH GLUE Attach dowels to the distance pieces Attach dowels to the legs Turn the distance pieces...
- Page 7 Assembly Instructions Step 3 Place list so that holes are facing vertical and chamfer is positioned downwards. Apply glue to the upper side of the list Attach list to the bedside with screws so that the chamfer is facing outside. Chamfer Chamfer Step 4...
- Page 8 Assembly Instructions Step 5 Apply glue into the holes of top rails DO NOT APPLY TOO MUCH GLUE Place top rails carefully on top of the legs so that dowels go into the holes of top rails Step 6 Apply glue into the holes of safety rails Apply glue...
- Page 9 Assembly Instructions Step 7 Place one slat in the centre of the bed. Follow the measurement . Place two slats in the ends of the bed. Follow the measurement . Push the bedsides together whilst 13 mm attaching middle slat to the bed with two chipboard screws 608 mm...
