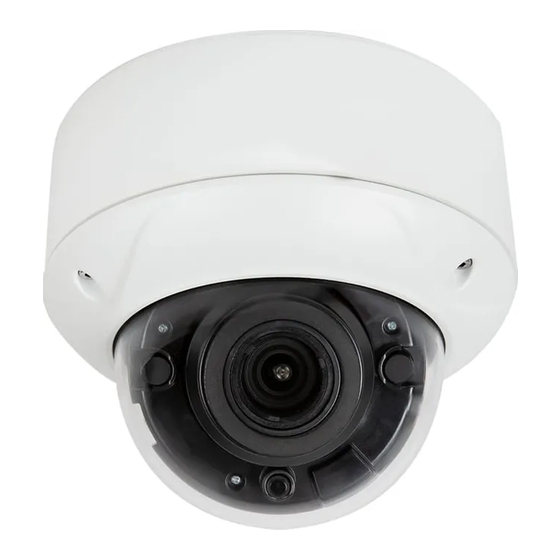

Luma Surveillance 710 Series Quick Start Manual
Hd analog surveillance camera
Hide thumbs
Also See for 710 Series:
- Quick start manual (16 pages) ,
- Installation & operation manual (9 pages) ,
- Quick start manual (9 pages)
Related Manuals for Luma Surveillance 710 Series
Summary of Contents for Luma Surveillance 710 Series
- Page 1 710 Series Dome 510 Series Dome 310 Series Dome HD Analog Surveillance Camera Quick-Start Guide...
- Page 2 3 x mounting bracket screws • 4 x wall anchors with screws • 3mm hex wrench CC tester cable • BNC connector (710 series only) • Other Required Equipment Aside from the contents of this box, you will need • Phillips screwdriver •...
- Page 3 Luma 310/510/710 Dome Camera Inspection Ensure that the device is in good condition and all the assembly parts are included. We recommend installing with RG-59 or RG-6 cabling with two-wire power (either regular or siamese). This provides better performance over distance than using traditional category cable with baluns.
- Page 4 Luma 310/510/710 Dome Camera Overview Before installing, familiarize yourself with the parts of your camera. Power Cable Lens IR Emitters Video BNC Cable Light Sensor OSD Joystick Black Shroud Resolution Toggle (310 / 510 only) Dome Video Test Port Base (310 series has no local test power)
- Page 5 Luma 310/510/710 Dome Camera Prepare for Installation 1. Drill a cable hole and pilot holes for your screws, using the supplied template. 2. Loosen the hex screws on the dome to remove the dome and the black shroud. Do not throw away the foam around the camera lens! It protects the camera from glare from its infrared lights.
- Page 6 Luma 310/510/710 Dome Camera Install the Camera 1. Attach the base of the camera to the ceiling and secure it with screws. 2. Route the cables through the cable hole. Note that the base provides extra space between the camera and the ceiling for wire management.
- Page 7 Luma 310/510/710 Dome Camera Adjust the Camera 1. Adjust the camera aim. This camera has a 3-axis ° 0-360 gimbal for perfect pan and tilt control. Ensure that the infrared sensor in the middle of the IR array is not blocked by the camera housing. 2.
- Page 8 5-Year Limited Warranty This Luma Surveillance™ product has a 5-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified or disassembled.
