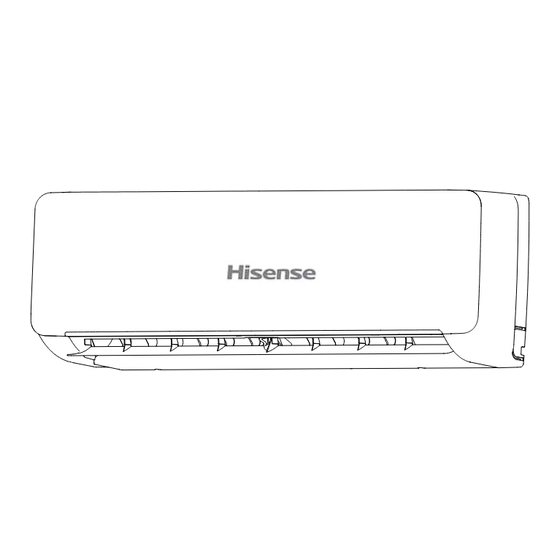

- Page 1 AVS-07UR2SABB AVS-07UR2SABA ； AVS-09UR2SABB AVS-09UR2SABA ； Wall- AVS-12UR2SABB AVS-12UR2SABA ； Mounted AVS-14UR2SABB AVS-14UR2SABA ； Type AVS-17UR2SABB AVS-17UR2SABA ； P00842 ORIGINAL INSTRUCTIONS...
- Page 2 HISENSE HISENSE HISENSE 32DB/23WB...
-
Page 3: Important Notice
To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. HISENSE's HISENSE's... - Page 4 Identification Of Parts Remote Control Switch Setting of Swing Filter Cleaning Taking Out the Filter Cleaning the Filter Reset of Filter Indication Section2 Installation & Maintenance Manual...
- Page 5 Common the Filter Indication Interval...
- Page 6 (×10 Btu/h) Wall-Mounted Type The appliance is not to be used by children or person with reduced physical,sensory or mental capabilities,or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 8 Press switches only with fingers. Do not press switches by any other item,as it may break switches. " " " " Regarding the instructions of Wired Remote Control Switch or Wireless Remote Control Switch,read the operation manual attached to the control switch. The pictures of Control Switch are only example.
- Page 9 ............Temperature control indicator It lights up when temperature deviate the set temperature. BA series BB series Fig.4.1 Signal Receptor To operate the room air conditioner, aim the remote controller to the signal receptor. The remote controller will operate the air conditioner at a distance of up to 7m when pointing at signal receptor of indoor unit.
- Page 12 approximately...
- Page 13 Users can not change power lines by themselves, replaced by professional maintenance staffs. 2. Necessary Tools and Instrument List for Installation equipments for R410A irrelevant...
- Page 14 wall and hanging board Quantity Accessory Purpose Mounting For Mounting Indoor Unit Bracket Screw For Mounting Bracket For Crew of Air Outlet Crew Cover Thermal For Refrigerant Pipe Insulation Pipe For Mounting Bracket (unit:mm) 1000 Fig. 4.1 Operation and Maintenance Space Fig.
-
Page 15: Installation
4.3 Installation The dimensions of the mounting bracket and the unit installation are indicated in Fig. 4.3. 4.3.1 Mounting Bracket onto Wall When the mounting bracket is directly attached to a wood wall or a concrete wall, check to ensure of 2000N. - Page 16 4.3.2 Mounting the Indoor Units 4.3.3 Removing Front Panel In order to connect the refrigerant piping, Hook the indoor unit to the mounting bracket, wiring and to check drain water flow, removing maintaining the indoor unit upright. the front panel is needed. Perform these work according to the following instructions.
- Page 17 (3) There are stoppers inside of the flat (4) Slightly lift the front panel upward in order panel.Check to ensure that there is no gap to release the combined parts of upper side of the between flat panel and unit body. front pane Stoppers Any gap will lead to leak or frost.
-
Page 18: Piping Connection
5.2 Piping Connection (1) Position of piping connection is shown in Figure 5.1 and 5.2. (2) Piping Direction for the Indoor Unit Three directions of piping connection to the indoor unit can be performed; to the rear side, the right When bending the pipes, firmly fix the pipe at side and the left side of the unit, respectively. -
Page 19: Drain Piping
(3) When tightening the flare nut, use two (7) Fix the plate of pipes (factory-supplied) as spanners as shown in Fig. 5.3 shown in Fig. 5.6. Stopper Pipe diameter Torque (N m) Plate for Pipe Fig. 5.6 Fig.5.3 Tightening Work of Flare Nut Drain Piping (4) Insulate the refrigerant pipes as shown in Fig. - Page 20 (3) Provide a vinyl chloride pipe, VP20. (4) Connect a drain piping as shown in Fig. 6.3. Use adhesive tape for connecting the drain pipe. Provide a downward slope to flow drain water smoothly Use Adhesive Tape Fig. 6.3 Connection of Drain Piping (5) Pour water into the drain pan and check to ensure that water can flow smoothly.
- Page 21 7.1 General Check Electrical Box Cover (Opening this cover, (1) Make sure that the field-supplied electrical PCB1 is in it.) components (main power switches, circuit breakers, wires, conduit connectors and wire terminals) have been properly selected according to the electrical Terminal data given in “Technical CatalogⅠ”.
-
Page 22: Indoor Unit
Indoor Unit 07~17 Model For Control Circuit 3.15 Fuse Capacity Freeze Protection Cut-Out Thermostat Cut-In Thermostat Differential... - Page 23 10.1 Field Minimum Wire Sizes for Power Souce The wire sizes marked with *1 in the above table are selected at the maximum current of the unit according to the European Standard, EN60335-1.Use the wires which are not lighter than Use an ELB (Electric Leakage the ordinary polyvinyl chloride sheathed flexible cord Breaker).
- Page 24 10.2 Setting of Dip Switches ( ) Fuse Recover(DSW7) (A) Position of Dip Switches No setting is required. Setting position before shipment is all OFF. DSW7 DSW4 DSW3 *In the case of applying high voltage to the terminal 1,2 of TB2,the fuse(0.5A) on the PCB,is cut. In such a case,firstly connect the wiring to TB2,and (B) The PCB in the indoor unit is equipped with then turn on NO.1 pin.
- Page 25 10.3 Setting the Filter Indication Interval The FILTER indication interval on the remote control switch can be set approximately 100, 1,200 or 2,500 hours (factory setting: 200 hours). If 100, 1,200 or 2,500 hours interval is required, follow the instructions below. FILTER Indication Interval Approx.
- Page 26 NOTE...
- Page 28 P00842Q 2015.06...
