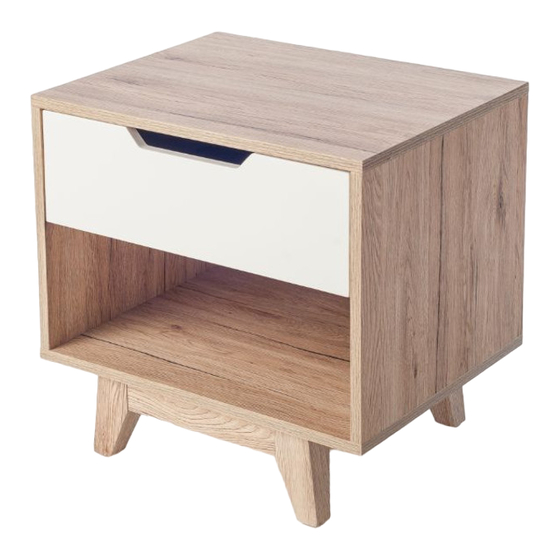

Jesse Bedside Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
small screw
bolt
dowel
x8
x20
x8
F
G
cam nut
cam bolt
x4
x4
screw x4
Hardware Supplied
For quicker assembly, we recommend the use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
D
E
L + R
x2
locking nut
x20
L + R
x2
H
I
J
screw
long
allen key
x4
x1
Phillips & Flathead screwdriver required
W
V
WARNING:
wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on
the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall
safety
screw
anchor with all furniture sold and we recommend
x1
strap x1
these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but
please note that different wall materials may require
X
Y
different fixing devices from those supplied.
wall
wall
anchor
screw
x1
x1
Z
washer
x2
Wall Strap
*We recommend using a Flathead screwdriver to tighten all locking nuts 100%
inserting the nut to ensure it locks 100%
Any furniture that is not anchored to a
