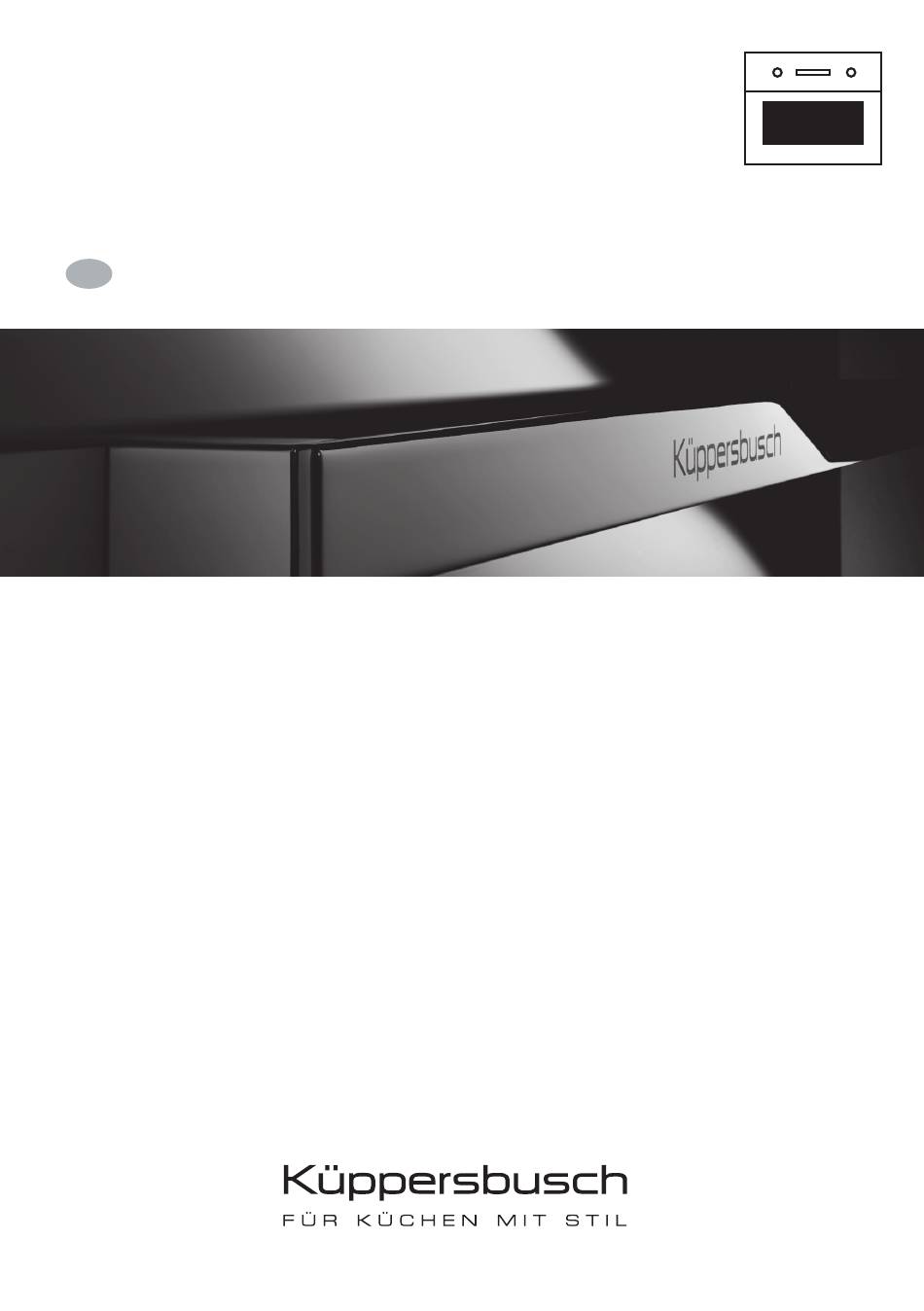

- Page 1 INSTRUCTIONS FOR USE and fitting CBD6550.0 Please read the users instructions carefully before installation of the appliance and before starting to use it. Please, store these instructions carefully. Service and Customer Service Phone: 0209;401/ 631 Email: kundendienst@kueppersbusch.de...
-
Page 2: Table Of Contents
Contents 7.9. Altering the parameters .... 29 1. Explanation for symbols and 7.10. Time settings ......30 indications ........4 7.11. Fast Pre-heating ...... 32 2. Cleaning and care ......6 8. Steam cooking ......32 2.1. For all surfaces ......6 8.1. - Page 3 Copyright Software This documentation protected Please note that these instructions apply for copyright. Any rights duly derived, in various series of equipment. Details that particular those concerning its translation or possibly do not apply to your appliance may reproduction, the extraction of images, radio be described.
-
Page 4: Explanation For Symbols And Indications
Explanation for symbols and indications Dear new Küppersbusch appliance user... Don't worry, it's not going to be that complicated. We have made every effort structure this information briefly and succinctly, clearly and explicitly, and above all, logically. In addition to the instructions given by our Customer Service, these instructions aim at enabling you to be able to operate this appliance quickly. - Page 5 Explanation for symbols and indications CAUTION Note indicating an imminent threat which may result in death or very serious injury. DANGER Note indicating a dangerous situation which may result in minor injury or damage to the appliance. HINT Note to be observed in order to make handling the appliance easier. WARNING OF ELECTRICAL ENERGY RISK OF FATAL INJURY! Live components have been installed near this symbol.
-
Page 6: Cleaning And Care
Cleaning and care 2. Cleaning and care You should carefully read this chapter before you use your appliance the first time. If cleaned correctly and looked after regularly the appliance will remain beautiful and clean for many years. The following tips will help you to clean and care for your appliance's various surfaces gently but thoroughly. - Page 7 Cleaning and care 2.1.1 Removing dried deposits Thick deposits must be soaked to soften them beforehand. This is best done with a wet cloth. It will then be easier to remove the deposits. Over time, certain types of food such as tomatoes, vinegar and salt-baked dishes may cause the enamel to change color.
- Page 8 Cleaning and care Stainless steel Stainless steel door front and control panel Use a cloth or a soft sponge and rinse only with warm water and a little detergent. CAUTION! Stainless steel scratches very easily! Do not use a scraper! Lime scaling, grease and starch deposits must be removed immediately;...
-
Page 9: Cleaning The Appliance Door
Cleaning and care 2.2. Cleaning the door Do not use any metal pot scorers, wire brushes, scouring powder or abrasives to clean the appliance door, since this may result in the surface becoming scratched or the glass breaking. Clean the outside of the door and its accessories with lukewarm soapy water or a mild detergent. -
Page 10: Maintenance Work
Maintenance work 3. Maintenance work 3.1. Changing the lamp ATTENTION! Before you replace the lamp, make sure that the appliance has been disconnected from the mains. The replacement bulb must withstand temperatures up to 300 ºC. They can be ordered from our technical Customer Service. 3.1.1 Changing the upper bulb □... -
Page 11: Dismantling The Door
Maintenance work 3.3. Dismantling the door For easy cleaning, the door can be dismantled. Read the following instructions to dismantling and assembling the door. 3.3.1 Door with hinge on body Dismantling the door □ Open the door as far as it will go. □... -
Page 12: Dismantling/Assembling The Interior Glass Of The Door
Maintenance work 3.4. Dismantling/assembling the interior glass of the door Depending on the model, your appliance may have 2, 3 or 4 panes of glass. Follow the instructions for the type of door your appliance has. Assembling Depending on the model, your appliance may have a completely closed stainless steel door. With this door it isn't possible to remove the panes of glass. -
Page 13: Before Using The First Time
Before using for the first time 4. Before using the first time There may be traces of fat and other substances in the appliance as a result of the manufacturing process. Proceed as follows to remove them: □ Remove all the packaging including any protective plastic film that may have been used. □... -
Page 14: Cleaning The Accessories
Before using for the first time □ The rack and some of the trays have retention grooves to prevent them from accidentally being removed Place these grooves towards the back of the appliance, facing downwards. □ The surface of the rack on which the container will rest must be below the side rails;... -
Page 15: Oven Overview
Oven overview 5. Oven Overview Water Tank Cooling Air Exit Control Panel (Open) Unit Mounting Grill Element Lamp Rack Levels Rear Wall Baking Tray Hot Air Fan Grid Oven Sealing Hinge Oven door Inner Glass... -
Page 16: Control Panel
Oven overview 5.1. Control Panel Time/ Timer settings ON/OFF To access the time settings. Switch the oven on and off. Light FUNCTIONS To activate and deactivate the light. Select the cooking functions. To activate the light permanently press the key for 3 seconds. Back Programs back... -
Page 17: Accessories
Oven overview 5.2. Accessories 5.2.1 Standard accessories □ 1 Universal/ Enamel Drip pan □ 1 Grilling Grid □ 1 Cooking pan, not perforated, deep □ 1 Cooking pan, perforated, flat 5.2.2 Optional accessories □ Profession+ Cooking set (Acc. N. ZB 8030) □... -
Page 18: Oven Functions
Oven functions 6. Oven Functions 6.1. Baking Functions Top / bottom heat Heat from the top and the bottom ensures even baking results for food placed on one level. Ideal for baking delicate cakes and gateaux, such as yeast dough, cheesecake, etc. Intensive fan-assisted grilling + bottom heat This combination of a large-surface grill, bottom heat and a fan ensures that large food portions remain juicy inside and that they are beautifully... - Page 19 Oven functions Ökotherm pizza setting A combination of bottom heat and hot air is ideal for baking crispy bases with a moist topping. Perfect for fresh pizza, biscuits or cakes with a fruit topping and pastries and pies. Top / bottom heat with hot air The fan distributes the heat generated by the heating elements at the top and bottom evenly throughout the oven.
-
Page 20: Special Functions
Oven functions 6.2. Special Functions Defrosting This function serves to gently defrost frozen food. Steam cleaning This program is used to clean the appliance interior. Warming damp towels To this, roll up dampened guest towels and place them newt to one another in a perforated cooking container. - Page 21 Oven functions Baking bread This program is ideal for getting a light crumb texture and a beautifully browned crust. Drying With the drying mode water is extracted from food to extend its shelf life. Most vitamins and minerals are preserved. Dehydrating is ideal in the production of dried fruit, dried meat, fruit purees and dried cod.
-
Page 22: Steam Cooking Functions
Oven functions 6.3. Steam cooking functions Steam cooking In order to prepare any kind of food in the gentlest, most tasty manner. The temperature is generated exclusively by water steam. Suitable for cooking vegetables, rice and fish. Regeneration The appliance is only intended to be used for cooking food. The combination of steam and hot air ensures a perfect climate and the food tastes like freshly prepared. -
Page 23: Operating The Oven
Operating the oven 7. Operating the oven In some cases, the fan is switched on and off, but this is not an indication of a fault. 7.1. Symbols The panel opens when the Panel Opening key is pressed. The display remains active until it reaches the final opening angle. -
Page 24: Turning The Oven On And Off
Operating the oven The following symbols can appear depending on the oven status. On the left side of the display: The oven is doing the fast pre-heating. When the timer is on. When the safety block is on. When the end of cooking time is programed. When the automatic steam shot is activated. -
Page 25: Sleep Mode
Operating the oven 7.3. Sleep mode □ If the manual confirmation is activated (factory default), and if no action is taken during 30 seconds after the key is pressed, the oven goes to sleep mode. □ The sleep mode is active for 5 minutes and allows you to return to the previous setting by pressing □... -
Page 26: Selecting A Cooking Function
Operating the oven Setting the units □ Press to select the weight unit (Kilogram by default). □ Press to confirm. □ Press to select the temperature unit (Celsius by default). □ Press to confirm. Setting the water hardness □ Press to select the water hardness level. -
Page 27: Selecting A Special Function
Operating the oven 7.6. Selecting a special function INFO Some special functions operate with steam. In this cases, it is necessary to fill the water tank before using the oven. □ Press the key to switch the oven on. □ Press the key to access the functions selection menu. -
Page 28: Automatic Program
Operating the oven 7.8. Automatic program 7.8.1. Selecting an automatic program □ Press the key to switch the oven on. □ Press the to access the automatic programs options. □ Press to select the category. □ Press to confirm. □ Press to select the automatic program. -
Page 29: Altering The Parameters
Operating the oven 7.9. Altering the parameters 7.9.1. Changing the food weight The weight of an automatic program can be changed proceeding as follows: □ Press the key to return to the settings view. □ Press the key. □ Press to set a new weight. -
Page 30: Time Settings
Operating the oven 7.10. Time settings 7.10.1. Setting a cooking time There is no default time for the cooking functions, if a time needs to be set proceed as follows: □ Press the key. □ Press to set the desired cooking time. □... - Page 31 Operating the oven 7.10.4. Setting the end of a cooking time Once the cooking time is set, the oven gives the option to program an end of cooking time. □ Press and set the end of the cooking time. □ Press to confirm.
-
Page 32: Fast Pre-Heating
Steam cooking 7.10.8. Changing the timer □ Press key. □ Press to set the desired time. □ Press to confirm. □ After the programed time expires, the oven emits an acoustic sound and the symbol starts to flash on the display. □... -
Page 33: Selecting A Steam Cooking Functions
Steam cooking 8.1. Selecting a steam cooking functions INFO Check that the water tank is full before each steam cooking operation. □ Press the key to switch the oven on. □ Press the to access the steam functions. □ Press to select the desired steam cooking function. -
Page 34: Automatic Steam Shot
Steam cleaning 8.2. Automatic steam shot The automatic steam shot can be switched on for some oven functions. □ To use the automatic steam shot, set a cooking function as described in previous chapters. □ On the settings overview, press the key. -
Page 35: Favorites
Favorites □ Press the key to switch the oven on. □ Press the key to access the functions options. □ Press to select the special functions option. □ Press to confirm. □ Press to select the steam cleaning function. □ Press to confirm. -
Page 36: Settings
Settings Settings To access the settings menu proceed as follows: □ Press the key. □ Press to select the desired option. □ Press to confirm. The settings menu contains the following options: Language Startup sound Units Date and time Water hardness Descaling 11.1. -
Page 37: Date And Time
Settings 11.5. Date and time Setting the date □ Press to select the year. □ Press to confirm. □ Press to select the month. □ Press to confirm. □ Press to select the day. □ Press to confirm. Setting the clock □... -
Page 38: Other Functions
Other functions INFO Failure to descale the appliance will likely impair the functioning of or cause damage to the appliance. For descaling, use the descaling solution “durgol®”. This solution allows a professional and careful descaling of your appliance. Available at Customer Care Centers. -
Page 39: Safety Block
Food probe 12.2. Safety block □ To activate the safety block press the key for about 3 seconds, the oven emits an acoustic sound the appears on the display. □ To deactivate the safety block repeat the same process. 12.3. Restore the factory settings □... -
Page 40: Using The Food Probe With Cooking Functions
Food probe The food probe can be used with all baking functions and some special functions. When the probe is pulled, the appliance returns to stand-by mode. Correct use of the food probe □ Insert the tip of the food probe horizontally from the side until it reaches the center of the food item. -
Page 41: Using The Food Probe With Automatic Programs
Food probe 13.2. Using the food probe with automatic programs □ Press the key to switch the oven on. □ Press the to access the automatic programs options. □ Press to select the category. □ Press to confirm. □ Press to select the automatic program. -
Page 42: What To Do If
What to do if… What to do if… ATTENTION! Repairs may only be carried out by qualified staff members! If your appliance is faulty, please check whether you can rectify the problem yourself by consulting these instructions for use. You may be able to rectify some problems yourself. They are described below. - Page 43 What to do if… Replace the door sealing See «Replacing the door sealing». ATTENTION! ...the door sealing is damaged? Do not use the oven when the door sealing is damaged! The oven can still be used. Replace the halogen …the oven lamp is damaged? lamp as quickly as possible when the oven is cold.
- Page 44 K02-180190/01 Küppersbusch Hausgeräte GmbH Postfach 10 01 32, D-45801 Gelsenkirchen, Küppersbuschstraße 16, D-45883 Gelsenkirchen Telefon: (0209) 401-0, Telefax: (0209) 401-303 www.kueppersbusch.de Teka Austria GmbH Eitnergasse 13, A-1230 Wien Telefon: (01) 86680-15, Telefax: (01) 86680-50 www.kueppersbusch.at 1632271-a...
