FRONT PANEL & DISPLAY

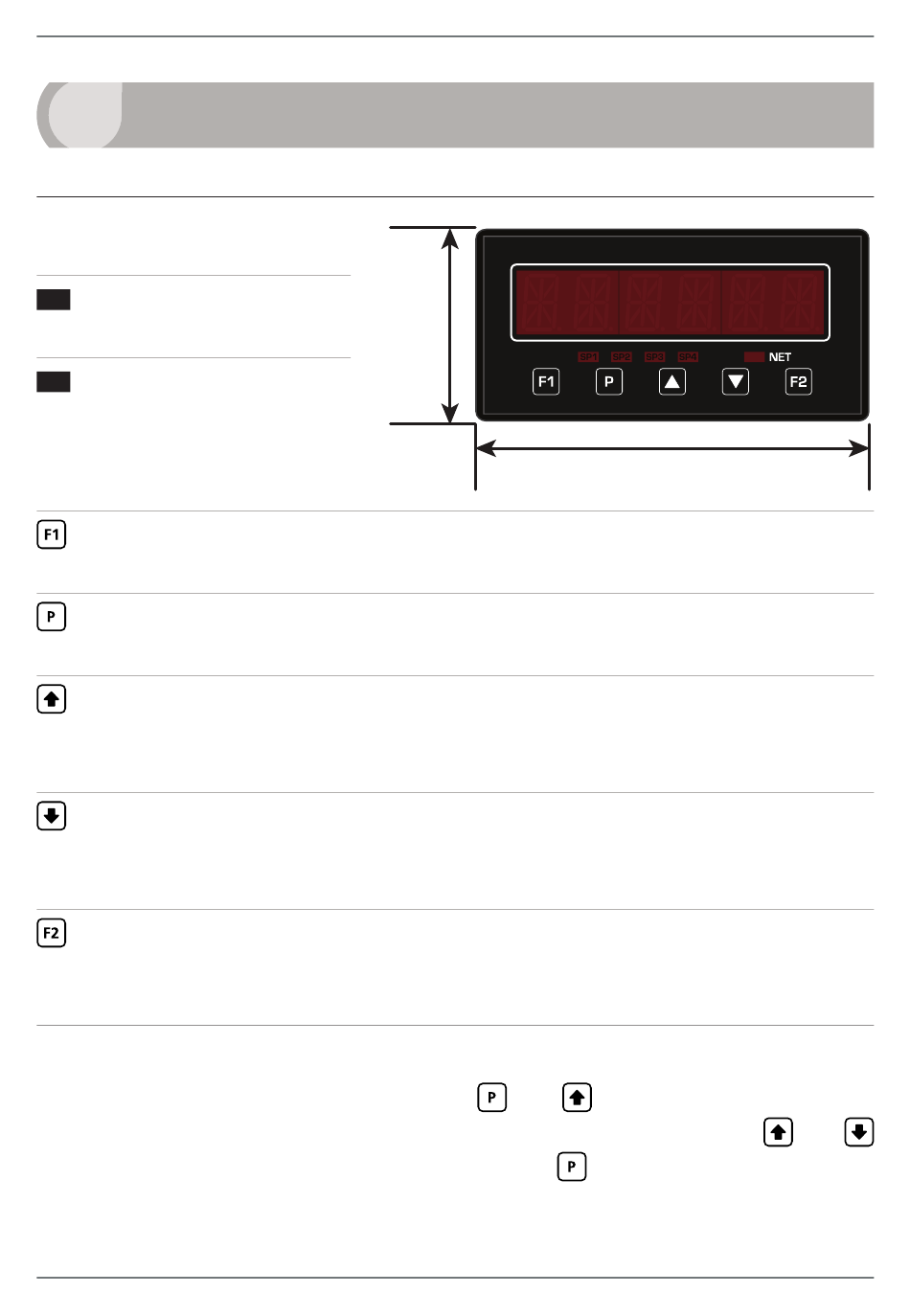

3.1 - Front panel
The SP LED's are used to
SPX
indicate active setpoints.
The net LED indicates
NET
when the net value is being dis-
played, and is also used for the
Flash Gross function (see 6.2L).
This button is used to access the Input Setup & Calibration menu (Section 6)
and the Factory Analog Output Calibration menu (Section 10).
This button is used to save your settings and advance to the next step in the
setup process. A custom function can also be programmed (see 6.2H).
This button is typically used to scroll through options or increase values in the
setup menu. Pressing this button from the main display will allow you to view/reset
the Peak value, and view the raw input value (see 3.3).
This button is typically used to scroll through options or decrease values in the
setup menu. Pressing this button from the main display will allow you to view/reset
the Valley value (see 3.3).
This button is used to access the Setpoint Setup menu (Section 7) and the Set-
point Direct Access menu (Section 8).
3.2 - Display brightness
To adjust the display brightness, press the
main display. BRI appears and toggles with the current setting. Use the
buttons to adjust the LED backlight, and then press
PRO-WEI100-MAN-19V01 (0225)
48
mm
(1.89")
and
96
mm (3.78")
buttons together from the
to finish.
