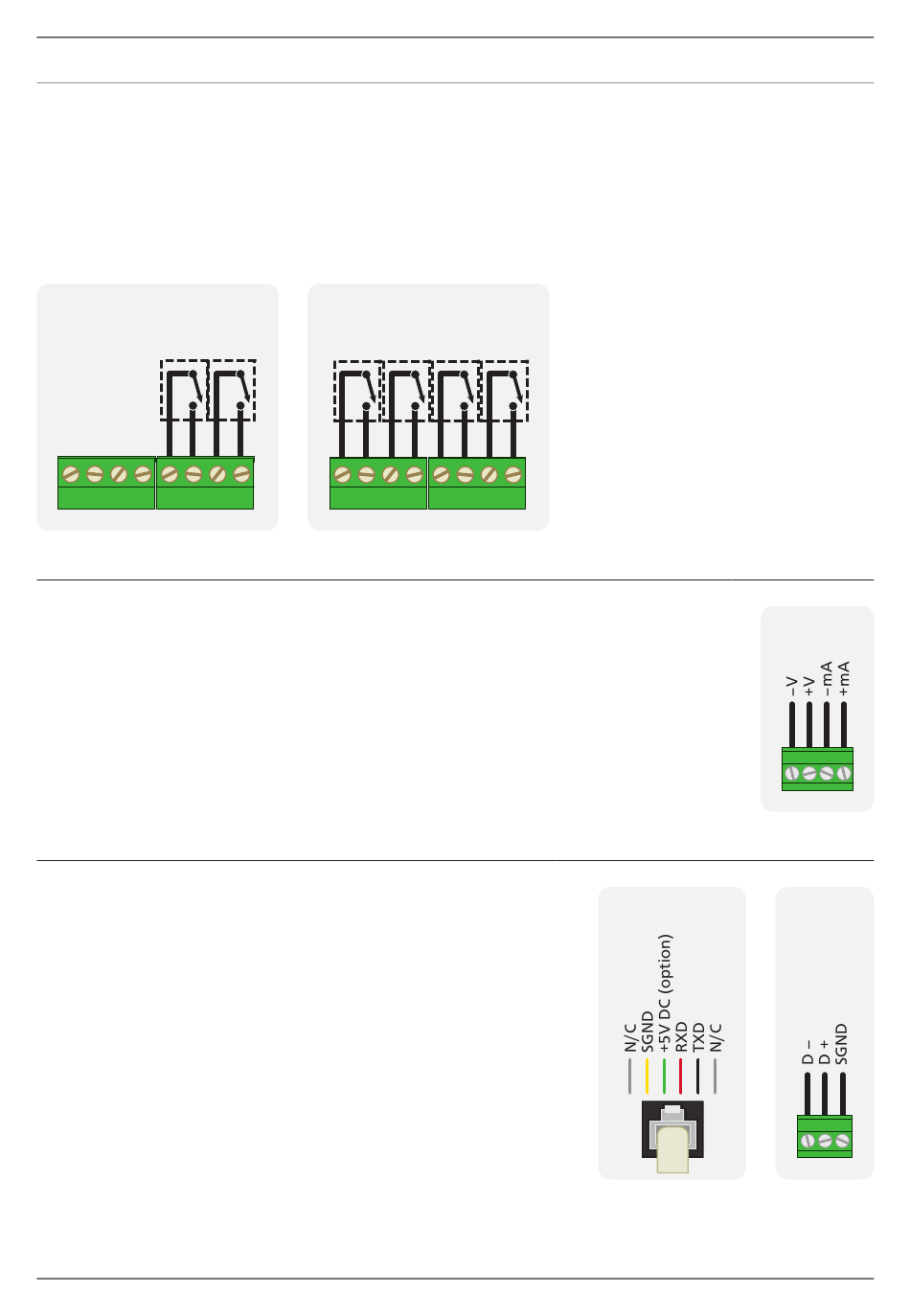

4.3 - Wire the relay outputs (if installed)
If your controller has relay outputs fitted, wire them as shown below. Relays can be
programmed to operate within the total span range of the controller.
See 4.1A
-R2 -R4
SP2 SP1 SP4 SP3 SP2 SP1
4.4 - Wire the analog output (if installed)
-A
If your controller has analog output fitted, wire it as shown for either
voltage (0–10V) or current (4–20mA).
See 4.1C
4.5 - Wire the serial port (if installed)
-S2R -S4S
If your controller has serial port fitted, wire it as
shown in the applicable diagram. (S2R: RS232, RJ11
terminal, S4S: RS485, screw terminal).
See 4.1B
