4.3

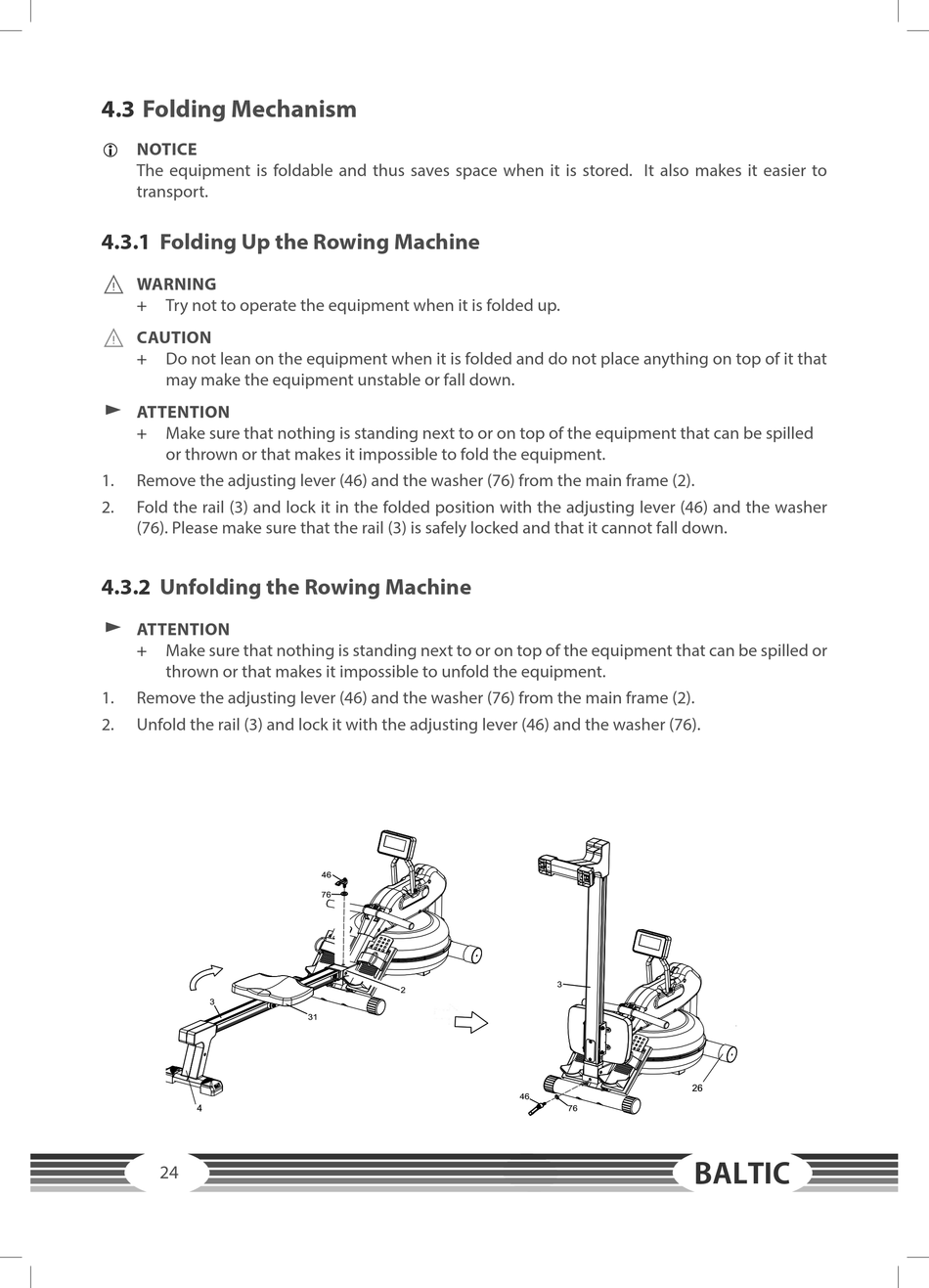

Folding Mechanism

NOTICE
L
The equipment is foldable and thus saves space when it is stored. It also makes it easier to
transport.
4.3.1

Folding Up the Rowing Machine

⚠ WARNING
+ Try not to operate the equipment when it is folded up.
CAUTION
⚠
+ Do not lean on the equipment when it is folded and do not place anything on top of it that
may make the equipment unstable or fall down.
࣑ ATTENTION
+ Make sure that nothing is standing next to or on top of the equipment that can be spilled
or thrown or that makes it impossible to fold the equipment.
1. Remove the adjusting lever (46) and the washer (76) from the main frame (2).
2. Fold the rail (3) and lock it in the folded position with the adjusting lever (46) and the washer
(76). Please make sure that the rail (3) is safely locked and that it cannot fall down.
4.3.2

Unfolding the Rowing Machine

࣑ ATTENTION
+ Make sure that nothing is standing next to or on top of the equipment that can be spilled or
thrown or that makes it impossible to unfold the equipment.
1. Remove the adjusting lever (46) and the washer (76) from the main frame (2).
2. Unfold the rail (3) and lock it with the adjusting lever (46) and the washer (76).
4
