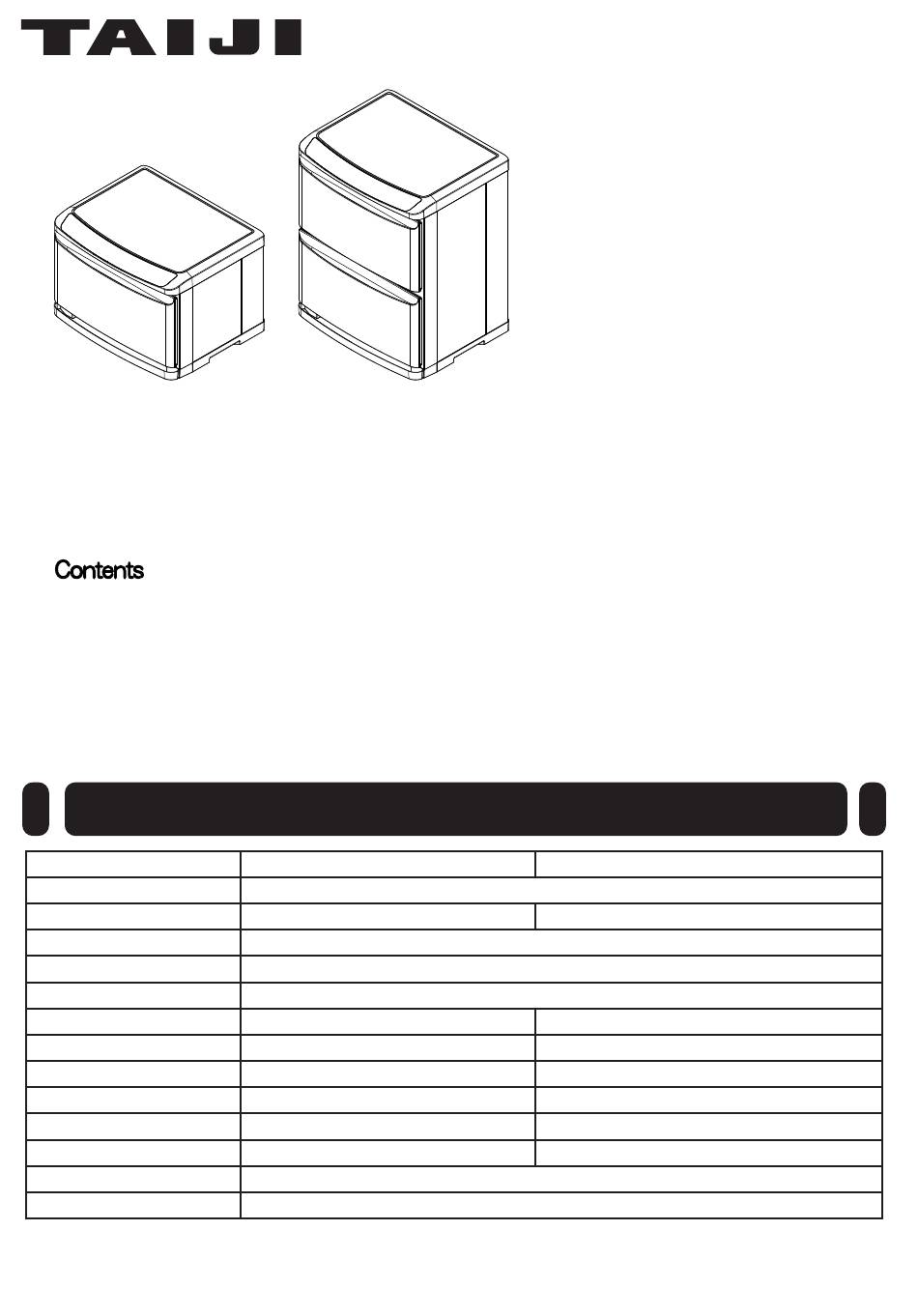

Thank you very much for purchasing our "HOTCABI."
CAUTION : Read the instructions before using the machine.
Contents
■Product Specifications････････････････････････1
■Safety Precautions･･････････････････････････2-5
■Purpose of Use･････････････････････････････････6
■Operational Mechanism･･････････････････････6
■Designation of Parts･･･････････････････････6-7
■Safety Device････････････････････････････････････7
Product Specifications
Model
Rated voltage
Power consumption
Safety device
Temperature control
Temperature
UV lamp
Cabinet dimensions
Inner box dimensions
Cabinet capacity
Weight
Accessories
Manufacturer
Country of manufacture
The specifications or appearance are subject to change without notice.
HC-11UV Pro
Single-phase 220 - 240V 50 - 60Hz
175 - 190W
Microcomputer control
Ｈot ： 70 - 80℃ (when ambient temperature is under 30℃)
GTL-2 (2W)
Ｗ450ｍｍ×Ｄ363ｍｍ×H322ｍｍ
Ｗ348ｍｍ×Ｄ207ｍｍ×H152ｍｍ
11Ｌ (approx. 55 hand towels)
7.5 kg
1×basket, 1×drain tray
INSTRUCTION
Model
ＨＣ- 1 １ＵＶ Ｐ ｒ ｏ
ＨＣ-２１ＵＶ Ｐ ｒ ｏ
■Checking Prior to Use and Setting･･･････8
■Sequence of Usage････････････････････････････9
■Troubleshooting･･･････････････････････････････10
■After-Purchase Servicing･･････････････････11
■Circuit Diagram･････････････････････････････････12
Thermal fuse
Ｗ450ｍｍ×Ｄ363ｍｍ×H562ｍｍ
Two sets of Ｗ348ｍｍ×Ｄ207ｍｍ×H152ｍｍ
22Ｌ (approx. 110 hand towels)
TAIJI & CO., LTD.
Japan
－1－
MANUAL

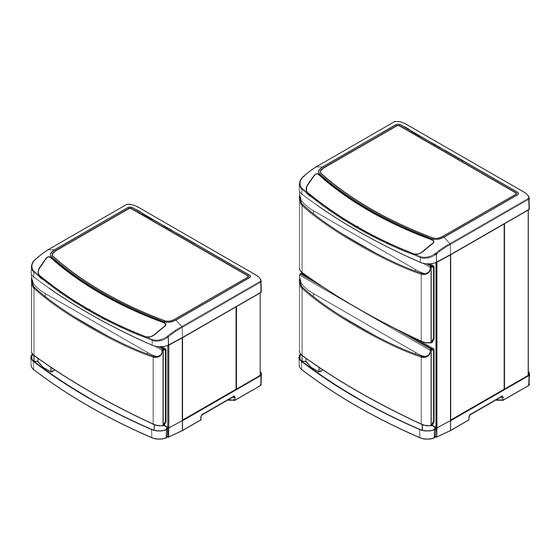

HOTCABI
HC-21UV Pro
350 - 380W
Two sets of GTL-2 (2W)
11.5 kg
2×baskets, 1×drain tray
Original Instructions
(2009D)
Advertisement
Related Manuals for Taiji HOTCABI HC-11UV Pro
Summary of Contents for Taiji HOTCABI HC-11UV Pro
- Page 1 22Ｌ (approx. 110 hand towels) Weight 7.5 kg 11.5 kg Accessories 1×basket, 1×drain tray 2×baskets, 1×drain tray Manufacturer TAIJI & CO., LTD. Country of manufacture Japan The specifications or appearance are subject to change without notice. Original Instructions (2009D) －1－...
- Page 2 Safety Precautions Please peruse these “Safety Precautions” carefully so that you can use your ■ product in the proper way. Please keep these “Safety Precautions” handy for future reference after being read. ■ Precautionary measures referred to herein are matters which should be abided by for ■...
- Page 3 WARNING (5) Handle the power cord with care. In case the power cord is processed, pulled, bundled, or a heavy item is placed upon or squeezes it, the cord is apt to Forbidden be damaged and could cause an electric shock or fire. The power cord should not come into contact with a heat source.
- Page 4 WARNING (14) The appliance shall be disconnected from its power source → during service and when replacing parts. Removing The removal of the plug has to be such that an operator plug can check from any of the points to which he has access that the plug remains removed.
- Page 5 CAUTION (10) Use heat resisting (at least 120℃) polyethylene wrapper. Use heat When polyethylene wrappers with a low heat resisting resisting polyethylene property are used, they may at times melt making towels wrapper useless, dry or cause discoloration. (11) Always place towels on the basket and then store in this appliance.
- Page 6 Purpose of Use This product is an electric towel warmer for exclusive use indoors and is fabricated to warm wet towels. Operational Mechanism This product is equipped with a heating element to keep towels within the cabinet warm. By thermostat, the temperature within the cabinet will be maintained at 70℃...
- Page 7 UV lamp sensor. At this time, look at the end of the inner box, but do not stare at the light source. If the light does not work even after trying this operation several times, it can be assumed that the UV lamp has burned out. In this case, consult to TAIJI sales representative or TAIJI & CO., LTD.
- Page 8 Checking Prior to Use and Setting 1． Remove the product from packing carton and make sure that Instruction Manual and Accessories are included. 2． Set the product as follows: ●At a place where it is flat and stable. ●At a place where it is not affected by heat and avoid places where there is direct sunlight, and near stoves, microwave ovens, etc.
- Page 9 ご使用手順 Sequence of Usage 1. If moisture or dirt remains in the body or inner box, remove them with a dry towel etc. 2. Insert basket in the inner box and place wet rolled towels on the basket. ＊ In the event the amount of towels put into the box is low, place them on the basket as flat and as far apart as possible.
- Page 10 If an indication below appears Remove the power plug once, and then switch on the power again. If normal status cannot be recovered even after doing that, confirm the error details and request repair. Indication Details/Countermeasures LED (green) blinks An error in the temperature sensor. An error in the temperature control.
- Page 11 For after sales service, contact the store where you have purchased your towel warmer, or nearest TAIJI sales representative or TAIJI & CO., LTD. in Japan. If the supply cord is damage, it must be replaced by its service agent or similarly qualified persons in order to avoid a hazard.
- Page 12 Circuit Diagram ＨＣ-１１ＵＶ Ｐ ｒ ｏ Operation panel Power switch Mode change switch UV lamp mode LED Power switch LED Heating mode LED Thermal fuse Thermistor Micro- computer Control board Lead switch Power cord UV lamp Heating element ＨＣ-２１ＵＶ Ｐ ｒ ｏ Operation panel Power switch Mode change switch...
