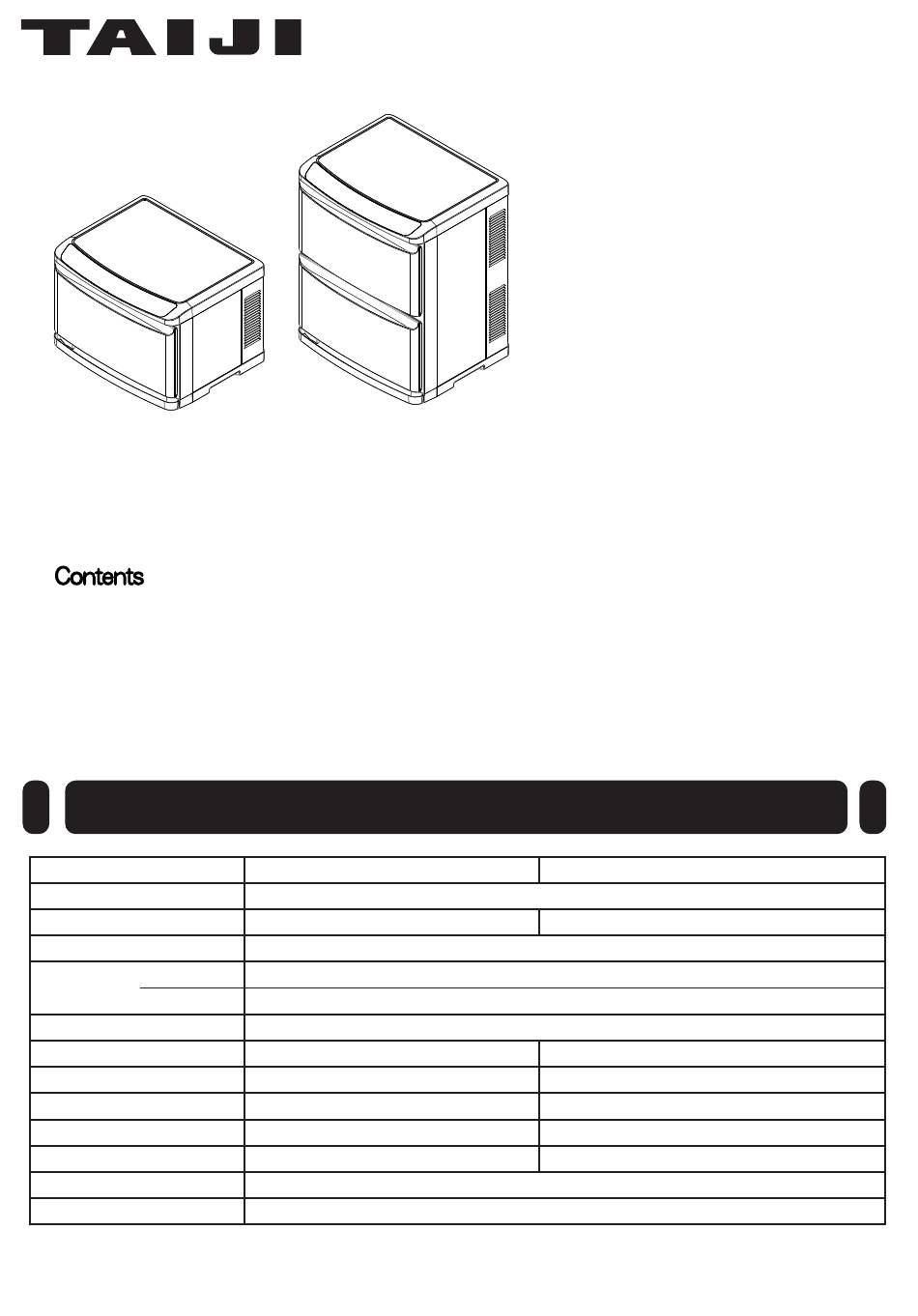

Thank you very much for purchasing our "HOT&COOL CONVERTIBLE CABI."
CAUTION : Read the instructions before using the machine.
Contents
■Product Specifications････････････････････････1
■Safety Precautions･･････････････････････････2-5
■After-Purchase Servicing...･････････････････5
■Purpose of Use･････････････････････････････････6
■Operational Mechanism･･････････････････････6
■Designation of Parts･･･････････････････････6-7
Product Specifications
Model
Rated voltage
Power consumption
Temperature control
Temperature
Heating and cooling system
Cabinet dimensions
Inner box dimensions
Cabinet capacity
Weight
Accessories
Manufacturer
Country of manufacture
The specifications or appearance are subject to change without notice.
HC-11LX Pro
Single-phase 220-240V 50-60Hz
125W
Ｈot ： 70 - 80℃ (when ambient temperature is under 30℃)
Ｃool ： 7 - 10℃ (when ambient temperature is 25℃)
Ｗ450ｍｍ×Ｄ363ｍｍ×H322ｍｍ
Ｗ348ｍｍ×Ｄ207ｍｍ×H152ｍｍ
11Ｌ (approx. 55 hand towels)
10 kg
1×basket, 1×drain tray
－1－
INSTRUCTION
Model
ＨＣ-１１ＬＸ Ｐｒｏ
ＨＣ-２１ＬＸ Ｐｒｏ
■Checking Prior to Use and Setting････7-8
■Sequence of Usage･･･････････････････････････9
■After Use and Maintenance･･･････････････10
■Troubleshooting･･･････････････････････････････11
■Circuit Diagram･････････････････････････････････12
Microcomputer control
Peltier element
Ｗ450ｍｍ×Ｄ363ｍｍ×H562ｍｍ
Two sets of Ｗ348ｍｍ×Ｄ207ｍｍ×H152ｍｍ
22Ｌ (approx. 110 hand towels)
2×baskets, 1×drain tray
TAIJI & CO., LTD.
Japan
MANUAL
HOT&COOL
CONVERTIBLE CABI
HC-21LX Pro
250W
17 kg
Original Instructions
(2103D)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Taiji HOT&COOL CONVERTIBLE CABI HC-11LX Pro
Summary of Contents for Taiji HOT&COOL CONVERTIBLE CABI HC-11LX Pro
- Page 1 22Ｌ (approx. 110 hand towels) Weight 10 kg 17 kg Accessories 1×basket, 1×drain tray 2×baskets, 1×drain tray Manufacturer TAIJI & CO., LTD. Country of manufacture Japan The specifications or appearance are subject to change without notice. Original Instructions (2103D) －1－...
- Page 2 Safety Precautions Please peruse these “Safety Precautions” carefully so that you can use your ■ product in the proper way. Please keep these “Safety Precautions” handy for future reference after being read. ■ Precautionary measures referred to herein are matters which should be abided by for ■...
- Page 3 WARNING (６) Handle the power cord with care. In case the power cord is processed, pulled, bundled, or a heavy item is placed upon or squeezes it, the cord is apt to Forbidden be damaged and could cause an electric shock or fire. The power cord should not come into contact with a heat source.
- Page 4 CAUTION (1) Hold the plug and not the cord when removing the plug → Hold plug from the electric outlet. Not doing so could result in an to remove electric shock or ignition. (２) Do not drop this product or inflict severe shock to it. Caution It could result in failure or fire.
- Page 5 For after sales service, contact the store where you have purchased your towel warmer, or nearest TAIJI sales representative or TAIJI & CO., LTD. in Japan. If the supply cord is damage, it must be replaced by its service agent or similarly qualified persons in order to avoid a hazard.

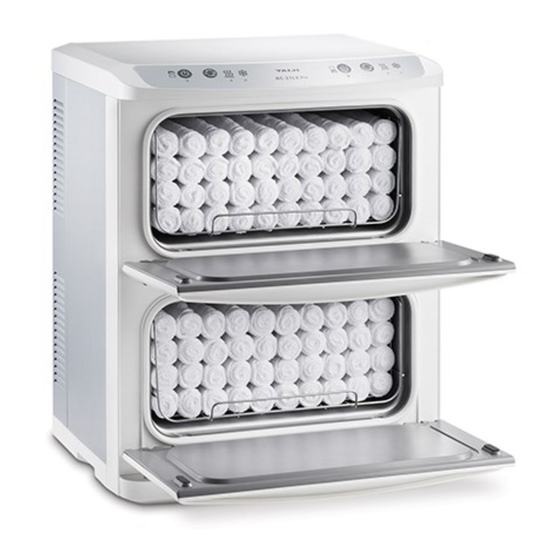

- Page 6 Purpose of Use This product is an electric towel warmer and/or cooler for exclusive use indoors and is fabricated to warm wet and/or cool towels. Operational Mechanism This product is equipped with a Peltier unit to heat or cool inside the inner box. The Peltier unit is installed in the back of the inner box.
- Page 7 ＨＣ-１１ＬＸ Ｐ ｒ ｏ Body Exhaust outlet (equipped on Operation panel both sides) Plug Power switch／LED(green) Mode change switch Mode indication LED Power cord LED(green) LED(blue) LED(orange) Door back Air inlet Basket Inner box Gasket Filter Drain tray Handle Front view Rear view Checking Prior to Use and Setting 1．...
- Page 8 Checking Prior to Use and Setting (cont.) 3． Grounding Ensure correct grounding is secured to protect against electric shock. Consult with your dealer for details. 4． Affixing drain tray ●Hold both sides of drain tray horizontally and push in until firmly inserted. ●When water accumulates in the tray, remove and empty carefully.
- Page 9 Sequence of Usage 1． If moisture or dirt remains in the body or inner box, remove them with a dry towel etc. ２． Insert the power plug, and then press the power switch The Peltier unit will be activated and the fan will be rotated at the same time. ＊...
- Page 10 After Use and Maintenance Post-use Instructions 1． Switch off then remove plug from electric outlet after the fan stops completely. ＊ The fan will continue to rotate for about 10 seconds to cool the components. 2． Take out remaining towels, etc. and wipe inner box clean to remove residual moisture.
- Page 11 If an indication below appears Remove the power cord once, and then switch on the power again. If normal status cannot be recovered even after doing that, confirm the error details and request repair. Indication Details/Countermeasures LED (green) blinks An error in the temperature sensor. An error in the temperature control.
- Page 12 Circuit Diagram ＨＣ-１１ＬＸ Ｐｒｏ Operation panel Power switch Mode change switch Cool mode LED Power switch LED Hot mode LED Thermistor Micro- computer Switching Control board power source Power cord Peltier Peltier element element ＨＣ-２１ＬＸ Ｐｒｏ Operation panel Mode change switch Power switch Cool mode LED Power switch LED Hot mode LED...
