OPERATOR'S MANUAL

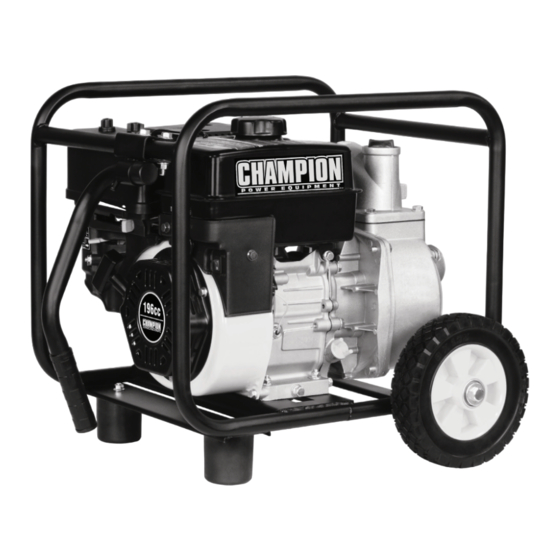

2 INCH SEMI-TRASH WATER TRANSFER
PUMP WITH HOSE KIT
Capable of solids up to 9/16 in. diameter
MODEL NUMBER
66520
12039 Smith Ave.
SAVE THESE INSTRUCTIONS
Santa Fe Springs CA 90670
Important safety instructions
USA / 1-877-338-0999
MADE IN CHINA
are included in this manual.
REV 66520-20200306
www.championpowerequipment.com
Advertisement
Table of Contents
Related Manuals for Champion 66520
Summary of Contents for Champion 66520
- Page 1 PUMP WITH HOSE KIT Capable of solids up to 9/16 in. diameter MODEL NUMBER 66520 12039 Smith Ave. SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important safety instructions USA / 1-877-338-0999 MADE IN CHINA are included in this manual. REV 66520-20200306 www.championpowerequipment.com...
- Page 2 AN IMPORTANT MESSAGE ABOUT TEMPERATURE: Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to 40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to 50°C (122°F) for short periods.
-
Page 3: Table Of Contents
66520 2 IN. SEMI-TRASH WATER TRANSFER PUMP WITH HOSE KIT Capable of solids up to 9/16 in. diameter TABlE OF CONTENTS Introduction ...... -
Page 4: Introduction
ENGLISH INTRODUCTION Congratulations on your purchase of a Champion Power Equipment (CPE) product. CPE designs, builds, and supports all of our products to strict specifications and guidelines. With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying service. -
Page 5: Manual Conventions
66520 ENGLISH MANUAl CONVENTIONS This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment. Follow all safety messages to avoid or reduce the risk of serious injury or death. -
Page 6: Safety Rules
66520 ENGLISH SAFETy RUlES WARNING DANGER Rotating parts can entangle hands, feet, hair, Read this manual thoroughly before operating your clothing and/or accessories. semi-trash pump. Failure to follow instructions could result in serious injury or death. Traumatic amputation or severe laceration can result. - Page 7 66520 ENGLISH SAFETy RUlES WARNING DANGER DO NOT pump salt, sludge, sewer, sea, or any other Fuel and fuel vapors are highly flammable and type of water containing solid material. extremely explosive. Fire or explosion can cause severe burns or death.Unintentional startup can result...
-
Page 8: Controls And Features
66520 ENGLISH CONTROlS AND FEATURES Read this owner’s manual before operating your semi-trash pump. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Semi-Trash Pump Fuel Tank – 0.9 gal. (3.4 L) capacity fuel tank. -
Page 9: Parts Included
66520 ENGLISH CONTROlS AND FEATURES Parts Included Your model 66520 gasoline powered Semi-Trash Pump ships with the following parts: Wheel Kit – 8 in. (20.3 cm) Wheel .... -
Page 10: Assembly
66520 ENGLISH ASSEMBly Install the Vibration Mounts Your semi-trash pump requires some assembly. This unit ships from our factory without oil. It must be properly 1. Attach the support leg with rubber vibration mounts serviced with fuel and oil before operation. -
Page 11: Add Engine Oil
66520 ENGLISH ASSEMBly Add Engine Oil Add Engine Oil Cont’d. CAUTION CAUTION The engine is equipped with a low oil shut-off and DO NOT attempt to crank or start the engine before will stop when the oil level in the crankcase falls it has been properly filled with the recommended below the threshold level. -
Page 12: Add Fuel
66520 ENGLISH ASSEMBly Add Fuel Add Fuel Cont’d. 1. Use clean, fresh, regular unleaded fuel with a WARNING minimum octane rating of 85 and an ethanol content of less than 10% by volume. Pouring fuel too fast through the fuel screen may 2. -
Page 13: Operation
66520 ENGLISH OPERATION Semi-Trash Pump location Connecting a Hose Kit Cont’d. Place the semi-trash pump in a well ventilated area. DO NOT place the semi-trash pump near vents or intakes where exhaust fumes could be drawn into occupied or confined spaces. Carefully consider wind Silver and air currents when positioning semi-trash pump. -
Page 14: Priming The Pump
66520 ENGLISH OPERATION Connecting a Hose Kit Cont’d. Connecting a Hose Kit Cont’d. Use 54-57 mm ID Clamp (Gold Color) for pump suction hose. 1. Slide clamp (54-57mm ID – Gold color) over the Attach the quick coupler to the male coupler and green suction hose approximately 4 in. -
Page 15: Starting The Engine
66520 ENGLISH OPERATION Priming the Pump Cont’d. Starting the Engine Cont’d. Located on the outlet flange is the priming plug. Remove NOTICE the priming plug and fill pump body to the very top of outlet flange with water. Reinstall the priming plug. As... -
Page 16: Operation At High Altitude
To alleviate high altitude issues other than the natural power loss, Champion Power Equipment can provide a high altitude carburetor main jet. The alternative main jet and installation instructions can be obtained by contacting Customer Support. -
Page 17: Maintenance And Storage
66520 ENGLISH MAINTENANCE AND STORAGE The owner/operator is responsible for all periodic Oil Cont’d. maintenance. NOTICE WARNING Once oil has been added, a visual check should Never operate a damaged or defective semi-trash show oil about 1-2 threads from running out of the pump. -
Page 18: Air Filter
Contact our help line at 1-877-338-0999 to locate the 4. Saturate in clean engine oil. nearest Champion Power Equipment certified service 5. Squeeze in a clean, absorbent cloth to remove all dealer for your semi-trash pump or engine maintenance excess oil. -
Page 19: Storage
66520 ENGLISH MAINTENANCE AND STORAGE Storage Semi-Trash Pump Storage 1. Allow the semi-trash pump to cool completely before For longer term storage, please follow these guidelines. storage. NOTICE 2. Turn off the fuel supply at the fuel valve. Engine switch should be in the “OFF” position 3. -
Page 20: Troubleshooting
66520 ENGLISH TROUBlESHOOTING Problem Cause Solution No fuel Add fuel Semi-trash pump will not start Faulty spark plug Replace spark plug Fill crankcase to the proper level; Low oil level place semi-trash pump on a flat, Semi-trash pump will not start;... -
Page 21: Specifications
Length....25 in. (63.6 cm) An Important Message About Temperature Spark Plugs Your Champion Power Equipment product is designed OEM spark plug: NHSP F6RTC and rated for continuous operation at ambient Replacement spark plug: NGK BPR6ES or equivalent temperatures up to 40°C (104°F). -
Page 22: Parts Diagram
66520 ENGLISH SPECIFICATIONS Parts Diagram... -
Page 23: Parts List
Parts list 66520 ENGLISH Part Number Description Part Number Description 26.109 Engine 1.5782.10105 Bolt M10 x 105 1.5789.0835 Flange Bolt M8 x 35 202.251303.00 Pump Base 1.5789.0825 Flange Bolt M8 x 25 1.5789.0855 Flange Bolt M8 x 55 252.201400.02 Rubber support 202.251002.00... -
Page 24: Engine Parts Diagram
66520 ENGLISH SPECIFICATIONS Engine Parts Diagram... -
Page 25: Engine Parts List
66520 ENGLISH Engine Parts list Part Number Description Part Number Description 1.5789.0608 Flange Bolt M6 x 8 26.050005.00 Piston 22.061100.00.2 Cover, Recoil Starter, Black 23.050003.00 Pin, Piston 21.061005.00 Spring, Recoil Starter 2.09.001 Circlip Ø18 x Ø1 2.10.003.1 Rope Ø4 x 1550, Black 26.050303.00... - Page 26 66520 ENGLISH Part Number Description 114 24.091200.02 Cover, Air Cleaner 115 24.091600.01 Screw Cap, Air Clean Cover 116 2.12.001 Buffer Ø7.5 x 7.5 117 2.06.006 Clamp Ø7 x Ø1 118 24.070014.02 Pipe, Reversal Valve 119 24.091000.02 Air Cleaner Assembly 120 24.101000.00 Muffler Assembly 121 22.061000.00...
- Page 27 To complete registration you will need to include a copy of the – Problems caused by parts that are not original Champion purchase receipt as proof of original purchase. Proof of purchase Power Equipment parts.
- Page 28 AND THE UNITED STATES ENVIRONMENT PROTECTION AGENCY (U.S. EPA) EMISSION CONTROL SYSTEM WARRANTY Your Champion Power Equipment (CPE) engine complies with U.S. EPA emission regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: The US EPA AND CPE are pleased to explain the Federal Emission Control Systems Warranty on your 2020 small off-road engine (SORE) and engine powered equipment.
- Page 29 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage. 1. APPLICABILITY: This warranty shall apply to 1997 and later model year small off-road engines (SORE). The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
- Page 30 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
