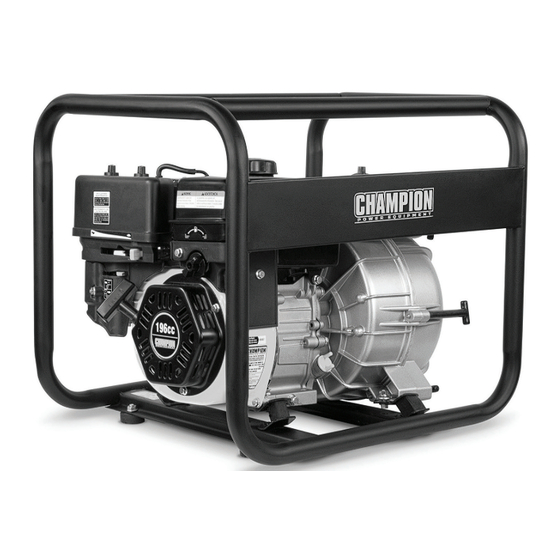

- Page 1 OWNER’S MANUAL 3 INCH SEMI-TRASH WATER TRANSFER PUMP MODEL NUMBER 66525 12039 Smith Ave. SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important safety instructions USA / 1-877-338-0999 MADE IN CHINA are included in this manual. REV 66525-20180109 www.championpowerequipment.com...
- Page 2 AN IMPORTANT MESSAGE ABOUT TEMPERATURE: Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to 40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to 50°C (122°F) for short periods.
-
Page 3: Table Of Contents
66525 3 INCH SEMI-TRASH WATER TRANSFER PUMP TABlE OF CONTENTS Introduction ......Storage . -
Page 4: Introduction
Congratulations on your purchase of a Champion Power Equipment product. Champion Power Equipment and Champion Engine Technology designs, builds, and supports all of our products to strict specifications and guidelines. With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying service. -
Page 5: Manual Conventions
66525 ENGLISH MANUAl CONVENTIONS This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment. Follow all safety messages to avoid or reduce the risk of serious injury or death. -
Page 6: Safety Rules
66525 ENGLISH SAFETy RUlES WARNING DANGER Read this manual thoroughly before operating your Rotating parts can entangle hands, feet, hair, semi-trash pump. Failure to follow instructions clothing and/or accessories. could result in serious injury or death. Traumatic amputation or severe laceration can result. - Page 7 66525 ENGLISH SAFETy RUlES WARNING DANGER DO NOT pump salt, sludge, sewer, sea, or any other Fuel and fuel vapors are highly flammable and extremely explosive. type of water containing solid material. Fire or explosion can cause severe burns or death.
-
Page 8: Controls And Features
66525 ENGLISH CONTROlS AND FEATURES Read this owner’s manual before operating your semi-trash pump. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Semi-Trash Pump Fuel Tank – 0.9 gal. (3.4 L) capacity fuel tank. -
Page 9: Parts Included
66525 ENGLISH CONTROlS AND FEATURES Parts Included Your model 66525 gasoline powered Semi-Trash pump ships with the following parts: Other – Vibration Mounts ...... -
Page 10: Assembly
66525 ENGLISH ASSEMBly Add Engine Oil Cont’d. Your semi-trash pump requires some assembly. This unit ships from our factory without oil. It must be properly 1. Place the semi-trash pump on a flat, level surface. serviced with fuel and oil before operation. -
Page 11: Connecting Hose Or Pipes
66525 ENGLISH ASSEMBly Connecting Hose or Pipes Add Fuel Cont’d. Hoses or pipes can be connected to the pump using 3 in. (7.6 cm) NPT pipe fittings. Teflon tape is required to ensure a liquid tight seal. Do not connect rigid pipe directly to the pump as this can cause excess stress that can damage the pump. -
Page 12: Operation
66525 ENGLISH OPERATION Semi-Trash Pump location Priming the Pump 1. Remove the Pump Priming Plug (#15) Place the semi-trash pump in a well ventilated area. DO 2. Completely fill the pump with liquid. NOT place the semi-trash pump near vents or intakes 3. -
Page 13: Stopping The Engine
To alleviate high altitude issues other than the natural Loss of pressure and suction will occur. Injury may power loss, Champion Power Equipment can provide a also occur. high altitude carburetor main jet. The alternative main... -
Page 14: Maintenance And Storage
66525 ENGLISH MAINTENANCE AND STORAGE The owner/operator is responsible for all periodic Oil Cont’d. maintenance. WARNING Never operate a damaged or defective semi-trash pump. WARNING Improper maintenance will void your warranty. Spark Plugs 1. Remove the spark plug cable from the spark plug. -
Page 15: Cleaning
Contact our help line at 1-877-338-0999 to locate the 2. Turn off the fuel supply at the fuel valve. nearest Champion Power Equipment certified service dealer for your semi-trash pump or engine maintenance needs. 3. Drain the pump chamber thoroughly. -
Page 16: Specifications
– Length....23 in. (58.5 cm) Your Champion Power Equipment product is designed and rated for continuous operation at ambient Fuel temperatures up to 40°C (104°F). -
Page 17: Troubleshooting
66525 ENGLISH TROUBlESHOOTING Problem Cause Solution Semi-trash pump will not start No fuel Add fuel Faulty spark plug Replace spark plug Semi-trash pump will not start; Semi-trash Low oil level Fill crankcase to the proper level; place pump starts but runs roughly... -
Page 18: Parts Diagram
66525 ENGLISH SPECIFICATIONS Parts Diagram... -
Page 19: Parts List
66525 ENGLISH Parts list Part Number Description 26.103 Engine 221.251303.01 Base,Pump 202.251002.00 Washer Ø8, Copper 1.5789.0835 Flange Bolt M8×35 202.250300.02 Water Seal 202.251301.02 Friction-Piece 221.251302.01 Seal, Impeller 221.251106.01 Impeller 1.3452.1.12503 Seal, Impeller 221.251202.01 Cover,Impeller Cover 1.3452.1.26605 Seal,Pump Body 221.251105.01 Valve,One Way 221.251101.01... -
Page 20: Engine Parts Diagram
66525 ENGLISH SPECIFICATIONS Engine Parts Diagram... -
Page 21: Engine Parts List
66525 ENGLISH Engine Parts list Part Number Description Part Number Description 1.5789.0608 Flange Bolt M6×8 1.5789.0855 Flange Bolt M8×55 22.061100.00.2 Recoil Starter Cover, Black 23.040017.00 Oil Seal, Valve 21.061005.00 Recoil Starter Spring 21.040003.00 Spring, Valve 2.10.003 Rope (Ø5×1550) 21.040007.00 Retainer, Exhaust Valve Spring (Up) 21.061001.01... - Page 22 Warranty Registration Card and a copy of your sales – Problems caused by parts that are not original Champion Power receipt from one of CPE’s retail locations as proof of purchase. Equipment parts.
- Page 23 United States Environment Protection Agency (U.S. EPA) Emission Control System Warranty Your Champion Power Equipment (CPE) engine complies with U.S. EPA emission regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: The US EPA AND CPE are pleased to explain the Federal Emission Control Systems Warranty on your 2017 small off-road engine and engine powered equipment.
- Page 24 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage. 1. APPLICABILITY: This warranty shall apply to 1997 and later model year small off-road engines. The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
- Page 25 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
- Page 26 Champion Power Equipment, Inc (CPE) and Environment and Climate Change Canada (ECCC) Emission Control System Warranty Your Champion Power Equipment (CPE) engine complies with Environment and Climate Change Canada (ECCC) emission regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: CPE is pleased to explain the Emission Control Systems Warranty on your 2017 small off-road engine.
- Page 27 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System Warranty Coverage. Emission Control System Warranty (ECS Warranty): 1. APPLICABILITY: The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
- Page 28 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
