NuAire XBOXER 55 Series Installation, Operating And Maintenance Instructions

XBOXER 55
The information contained in this document provides details of
installation, operation and maintenance for installers and users
of the XBOXER 55 Supply and Extract Ventilation Unit with
Heat Recovery.
These air handling units comprise a combination of three modular
sections assembled to suit the application requirements as
specified by the purchaser, they comprise:
1. XBOXER 55 Atmosphere Side Silencer and Mixing Box
2. XBOXER 55 Central Fan Unit
3. XBOXER 55 Room Side Silencer
The XBOXER 55 Central Fan Unit houses two fan units with
associated air filters, a plate heat recovery section, an optional
supplementary heater (LPHW or Electric).
General information regarding performance and specifications for
the equipment may be obtained from our Technical Literature, and /
or project specific documentation.

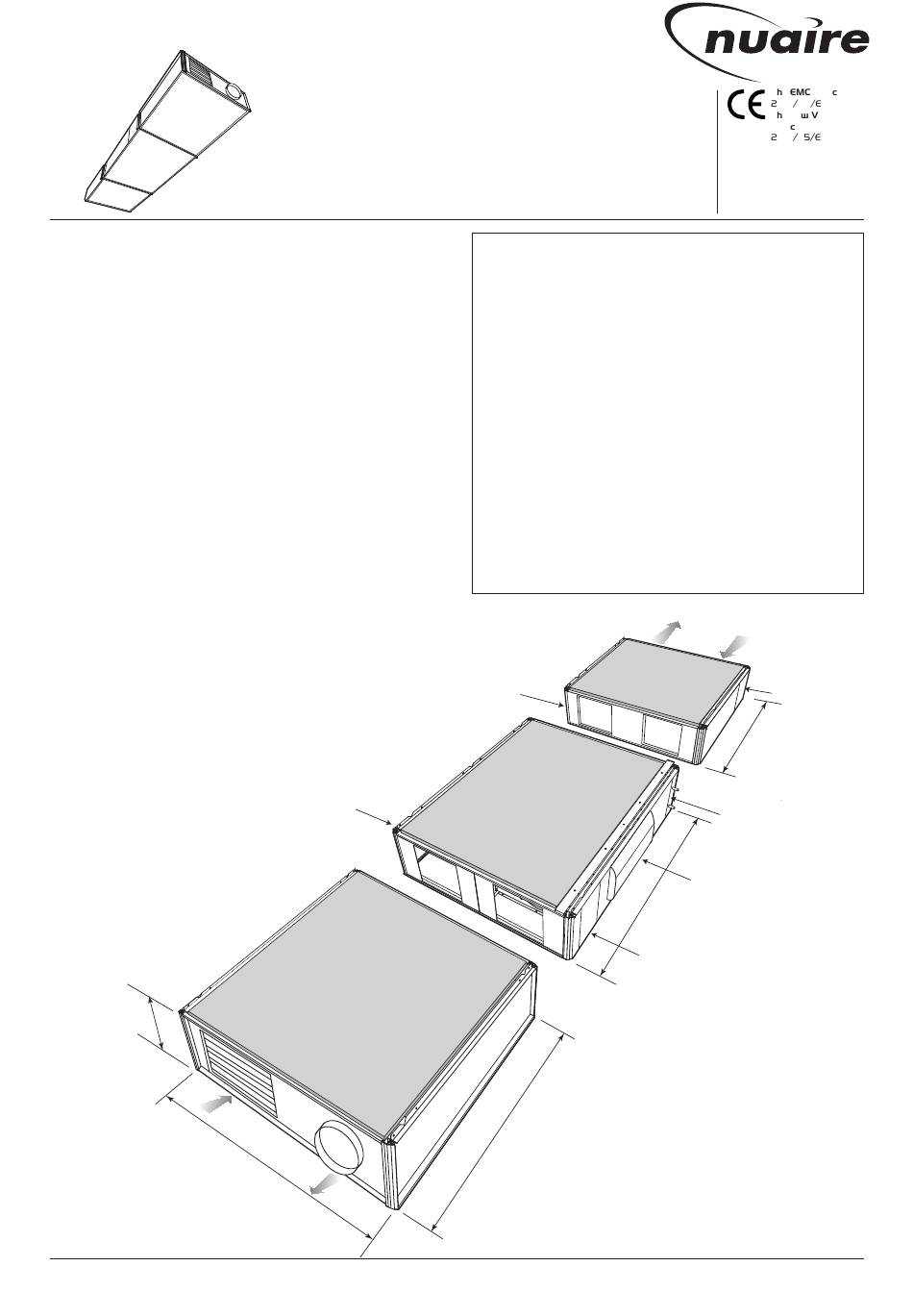

Figure 1: Dimensions of modular sections viewed from above and
access panels for the sections.
Access for maintenance and inspection of the XBOXER 55 units
is generally from the sides. (for details of individual component
access, see figure 1).
Room Side Silencer
All units 470mm
Extract
All units 1560mm
Nuaire: A Trading Division of Polypipe Limited
Kingdom CF83 1NA T: 029 2088 5911 F: 029 2088 7033 E: info@nuaire.co.uk W: www.nuaire.co.uk
XBOXER 55
Supply & Extract Ventilation Unit
with Heat Recovery
Installation, Operating and
Maintenance Instructions
Mixing Box & Atmosphere
Side Silencer
Loom connection
Central Ventilation Unit
Access to filter
(extract)
Supply
1
Code description:
XBOXER 55 Central Ventilation Unit
XB 55 - L - E
| | |
1 2 3
1. XBOXER 55 Range
2. L = Left, R = Right
Code description:
Silencer & Mixing Box
XB 55 - SIL - AT - M - L -240
| | | | |
1 2 3 4 5
1. XBOXER 55 Range
2. SIL = Silencer
3. AT = Atmosphere side or
RM = Roomside
4. M = Mixing box (control by
others)
Discharge
1600mm
Western Industrial Estate Caerphilly United
T e Dire tive
014 30
T e Lo
Dire tive
014 3
3. E = Electric heater
. N = No heater
L1, L2, L3, L4 = LPHW heater
|
6
5. L = Left, R = Right
6. 240 = 240V actuator,
24 = 24V DC actuator,
24/10 = 24V actuator
with 0-10V modulation
control
Supply
Access door
1000mm
Access to filter
(supply)
Access to controls
1900mm
Access to coil
