6. After configuration is completed, align and engage the bottom snaps of the faceplate and
then align and engage the top two snaps. Then, align and install the front lens to the
faceplate by inserting top snap first, followed by the bottom snap. LEft and right snaps are

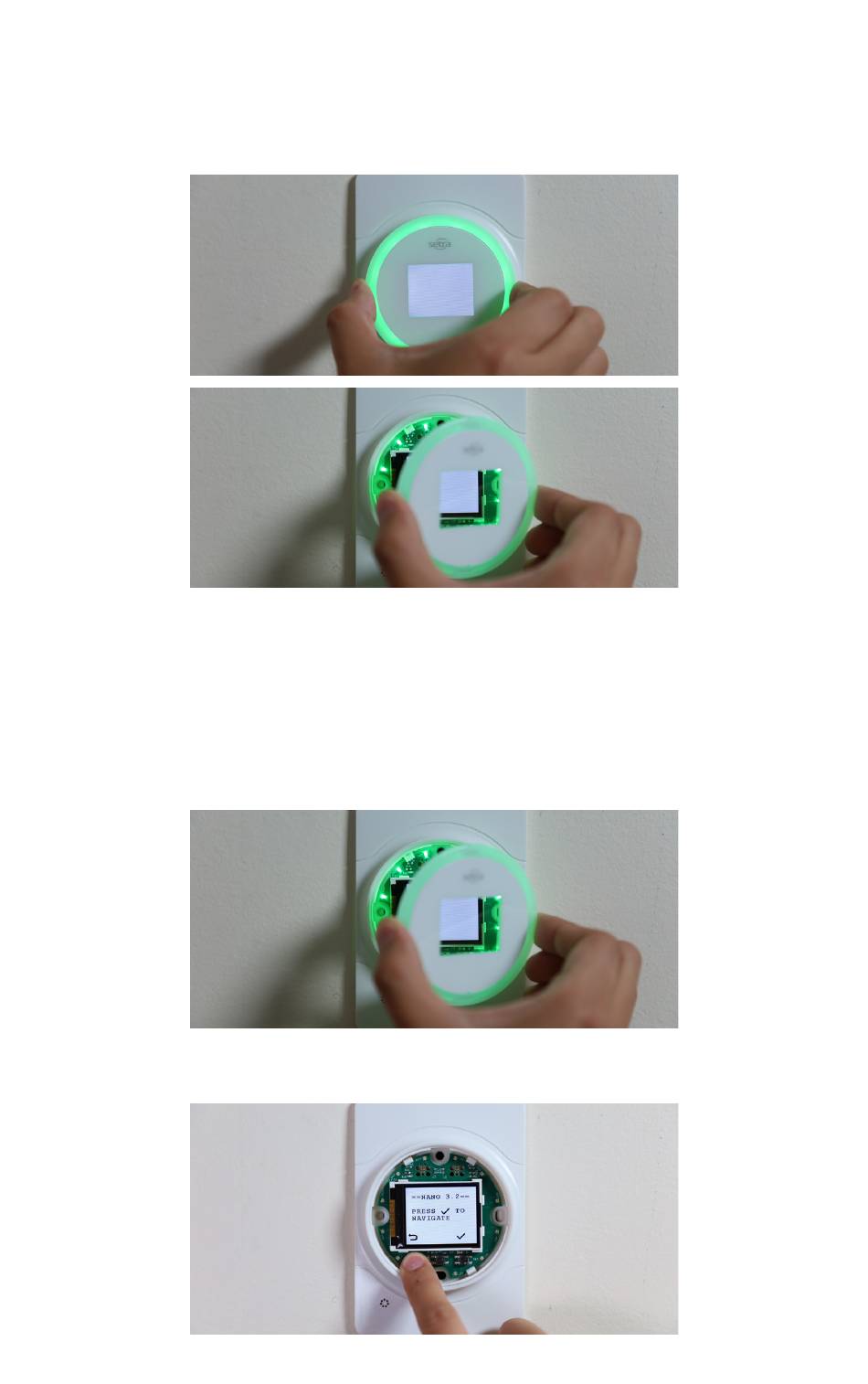

alignment only. When removing the cover lens, grasp lens left and right with forefinger and
thumb and pull straight out as shown in the bottom.

4.0 Servicing Setra Lite

4.1 Configuration

Configuration of Setra Lite (including sensor zeroing) can be performed by removing the front
lens from the unit and configuration setting via the 3 buttons located below the LCD display.
To remove the front lens, grab the front lens from the left and right side edges, and pull the
lens away from the wall.
The configuration menu can be accessed by holding the LEFT button for 3 seconds.
Configuration menu settings (including one-touch zeroing) are detailed in the following
section.
