3.5 Completing the installation
1. Connect pressure tubing from the Pressure Pickup Port to the port on the back of Setra
Lite.
2. Connect wiring for power and analog output (if required)

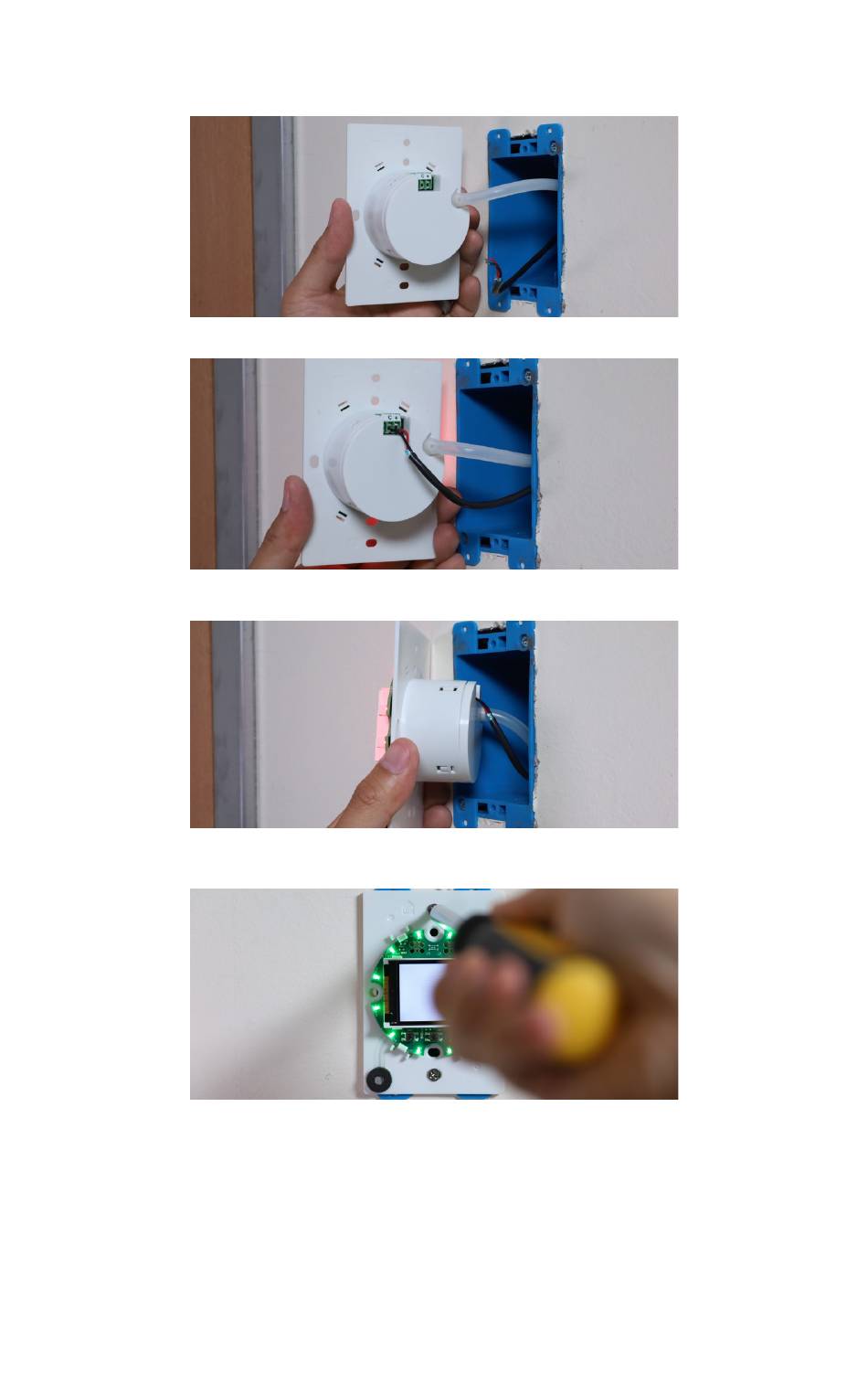

3. As you push the Setra Lite unit into the electrical box, push the tubing into the conduit tube
or into the wall cavity.
4. When wiring is complete, push Setra Lite into the enclosure and secure with two (2)
mounting screws.
5. When the home screen appears, Setra Lite can be configured via 3 buttons located below
the LCD display on the circuit board. Initial setup, zero, and configuration menu settings
are detailed in the following section.
Note: Setra Lite should be installed, powered and operational for 30 minutes for warmup
and acclimation for one-time pressure sensing stabilization. If necessary, after the warmup,
units can be re-zeroed. Setra Lite contains a small air valve to allow for one-touch zeroing
via the configuration menu.
