2.0 Rough-in installation

For Setra Lite to be installed correctly, the rough-in phase of the project must be completed
properly. This section will outline the specific considerations the General Contractor must pay
attention to so that the final wiring and commissioning will go smoothly.
2.1 Intended use
The following is a list of parts required and supplied by installer for Setra Lite:
1. Power (18-22 AWG recommended) and signal wire
2. 1/8 in. ID silicon tubing to run from the room(s) Pressure Pickup Ports to the Setra Lite
monitor or external sensors.
3. 24 VAC or VDC transformer, capacity rated for number of Setra Lite units powered
4. Single-gang electrical box, if opting not to install directly into wall
5. Single-gang electrical box, one per Pressure Pickup Port, if opting not to install directly
into wall

2.2 Parts included with your order

The following parts are included with your order:
1. Setra Lite main unit
2. Pressure Pickup Port (located in master shipping box)
3. Mounting hardware
4. Elbow connectors, if needed
5. 250 ohm resistor, if wiring inputs for 4-20 mA current loops

2.3 Unboxing the unit

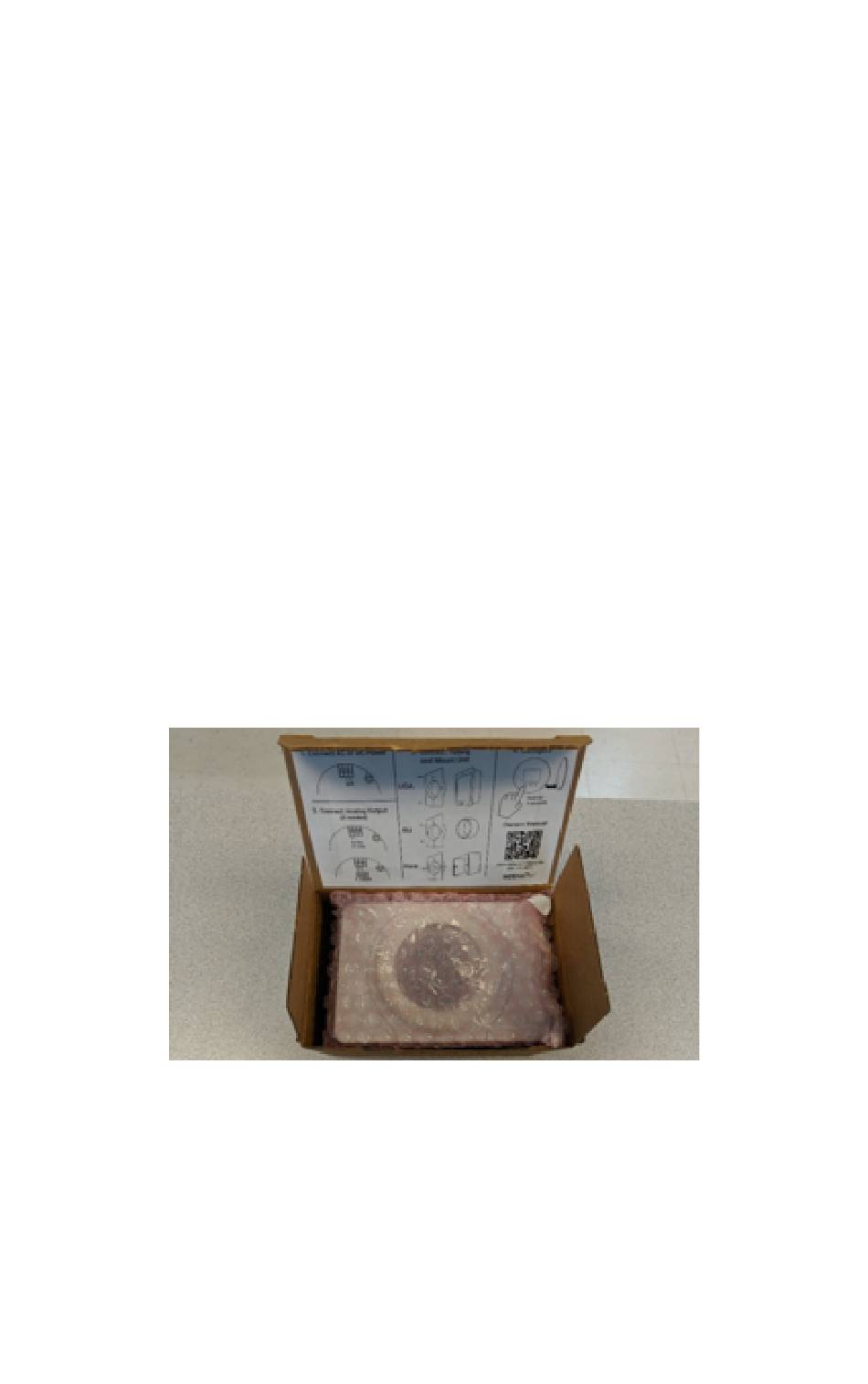

When first opening the Setra Lite box, the faceplate and lens are in a protective bag on top. Set
aside these parts for final installation.
Located underneath the faceplate and lens is the main sensor body of the Setra Lite.
Attachment hardware is located in the side slot of the packing foam inside the Setra Lite box.
A Pressure Pickup Port is separately packaged and included in the master shipping box that
contained the Setra Lite.
