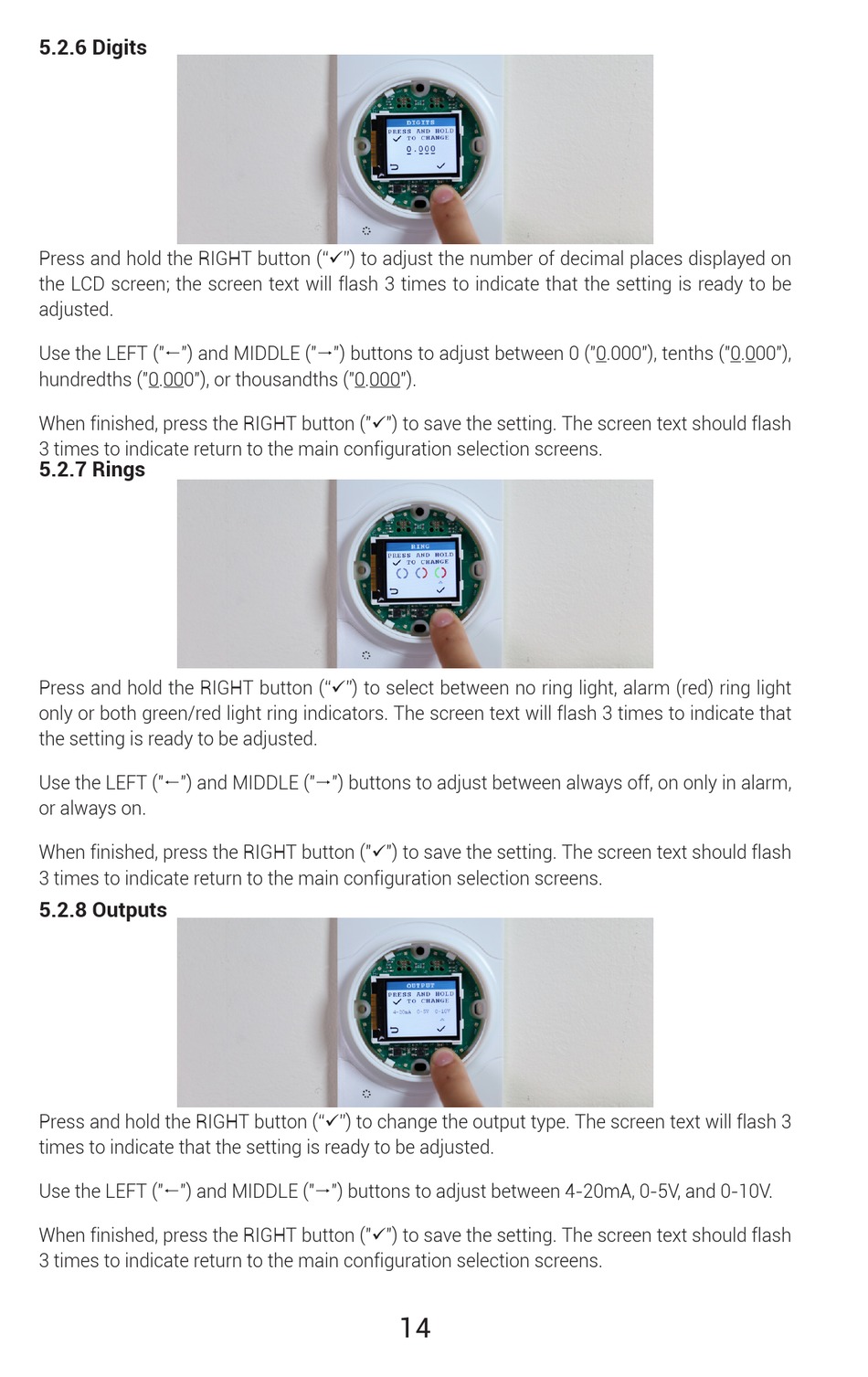

Setra Systems Lite Installation & Operating Manual page 14

5.2.6 Digits
Press and hold the RIGHT button ("") to adjust the number of decimal places displayed on
the LCD screen; the screen text will flash 3 times to indicate that the setting is ready to be
adjusted.
Use the LEFT ("") and MIDDLE ("") buttons to adjust between 0 ("0.000"), tenths ("0.000"),
hundredths ("0.000"), or thousandths ("0.000").
When finished, press the RIGHT button ("") to save the setting. The screen text should flash
3 times to indicate return to the main configuration selection screens.
5.2.7 Rings
Press and hold the RIGHT button ("") to select between no ring light, alarm (red) ring light
only or both green/red light ring indicators. The screen text will flash 3 times to indicate that
the setting is ready to be adjusted.
Use the LEFT ("") and MIDDLE ("") buttons to adjust between always off, on only in alarm,
or always on.
When finished, press the RIGHT button ("") to save the setting. The screen text should flash
3 times to indicate return to the main configuration selection screens.
5.2.8 Outputs
Press and hold the RIGHT button ("") to change the output type. The screen text will flash 3
times to indicate that the setting is ready to be adjusted.
Use the LEFT ("") and MIDDLE ("") buttons to adjust between 4-20mA, 0-5V, and 0-10V.
When finished, press the RIGHT button ("") to save the setting. The screen text should flash
3 times to indicate return to the main configuration selection screens.
14
