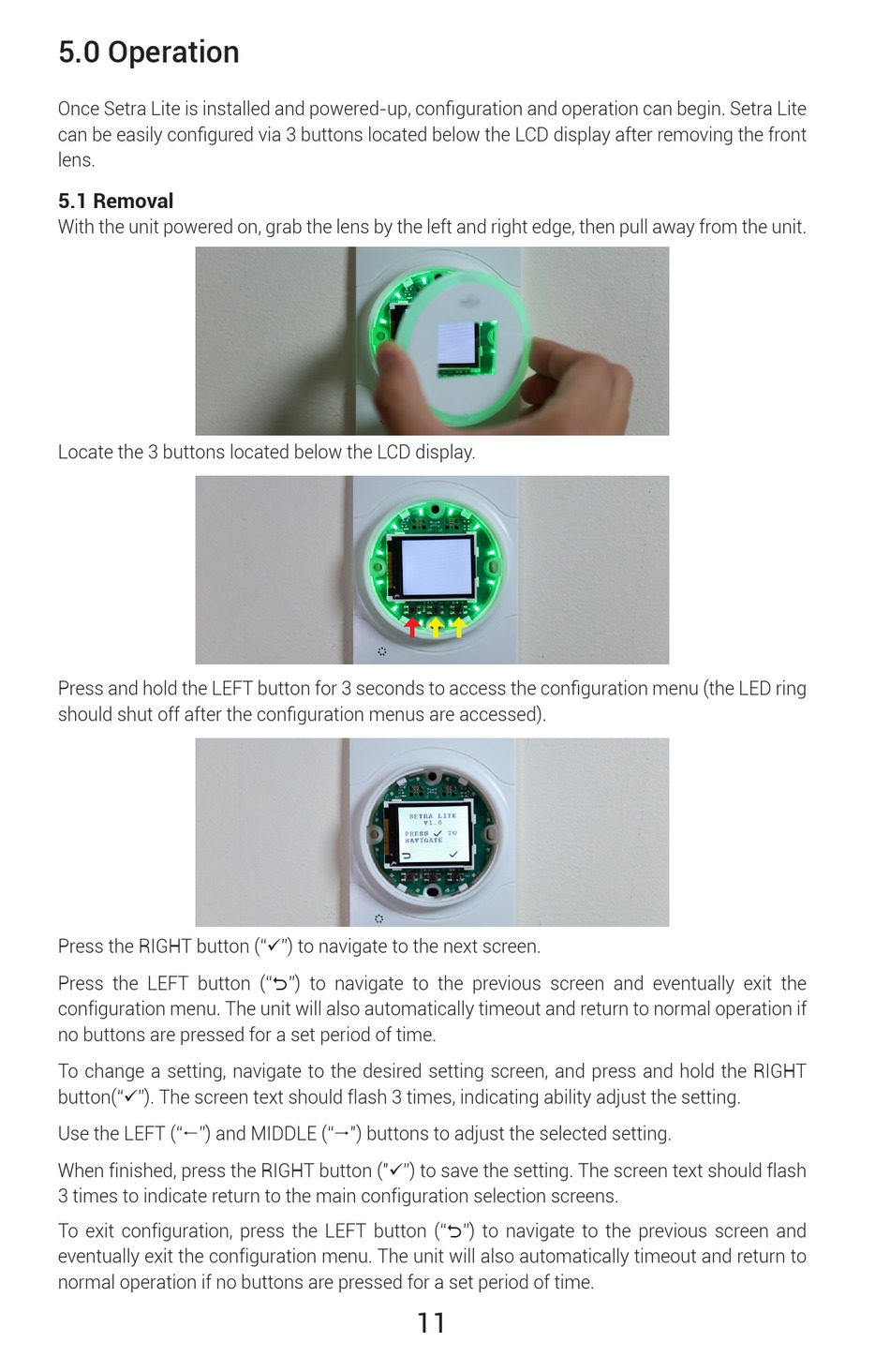

5.0 Operation

Once Setra Lite is installed and powered-up, configuration and operation can begin. Setra Lite
can be easily configured via 3 buttons located below the LCD display after removing the front
lens.
5.1 Removal
With the unit powered on, grab the lens by the left and right edge, then pull away from the unit.
Locate the 3 buttons located below the LCD display.
Press and hold the LEFT button for 3 seconds to access the configuration menu (the LED ring
should shut off after the configuration menus are accessed).
Press the RIGHT button ("") to navigate to the next screen.
Press the LEFT button ("") to navigate to the previous screen and eventually exit the
configuration menu. The unit will also automatically timeout and return to normal operation if
no buttons are pressed for a set period of time.
To change a setting, navigate to the desired setting screen, and press and hold the RIGHT
button(""). The screen text should flash 3 times, indicating ability adjust the setting.
Use the LEFT ("") and MIDDLE ("") buttons to adjust the selected setting.
When finished, press the RIGHT button ("") to save the setting. The screen text should flash
3 times to indicate return to the main configuration selection screens.
To exit configuration, press the LEFT button ("") to navigate to the previous screen and
eventually exit the configuration menu. The unit will also automatically timeout and return to
normal operation if no buttons are pressed for a set period of time.
11
