Installation
1.
Locate and drill the screw holes based on the frame mounting dimension of the base, and erect the plastic expansion
bolts.
2.
Use four ST4.2x32 self-tapping screws to fix the frame.
3.
Use four M4x8 pan head screws to mount the OutBack Mate Micro to the frame.
4.
Affix the four screw plugs to the screw holes.
8

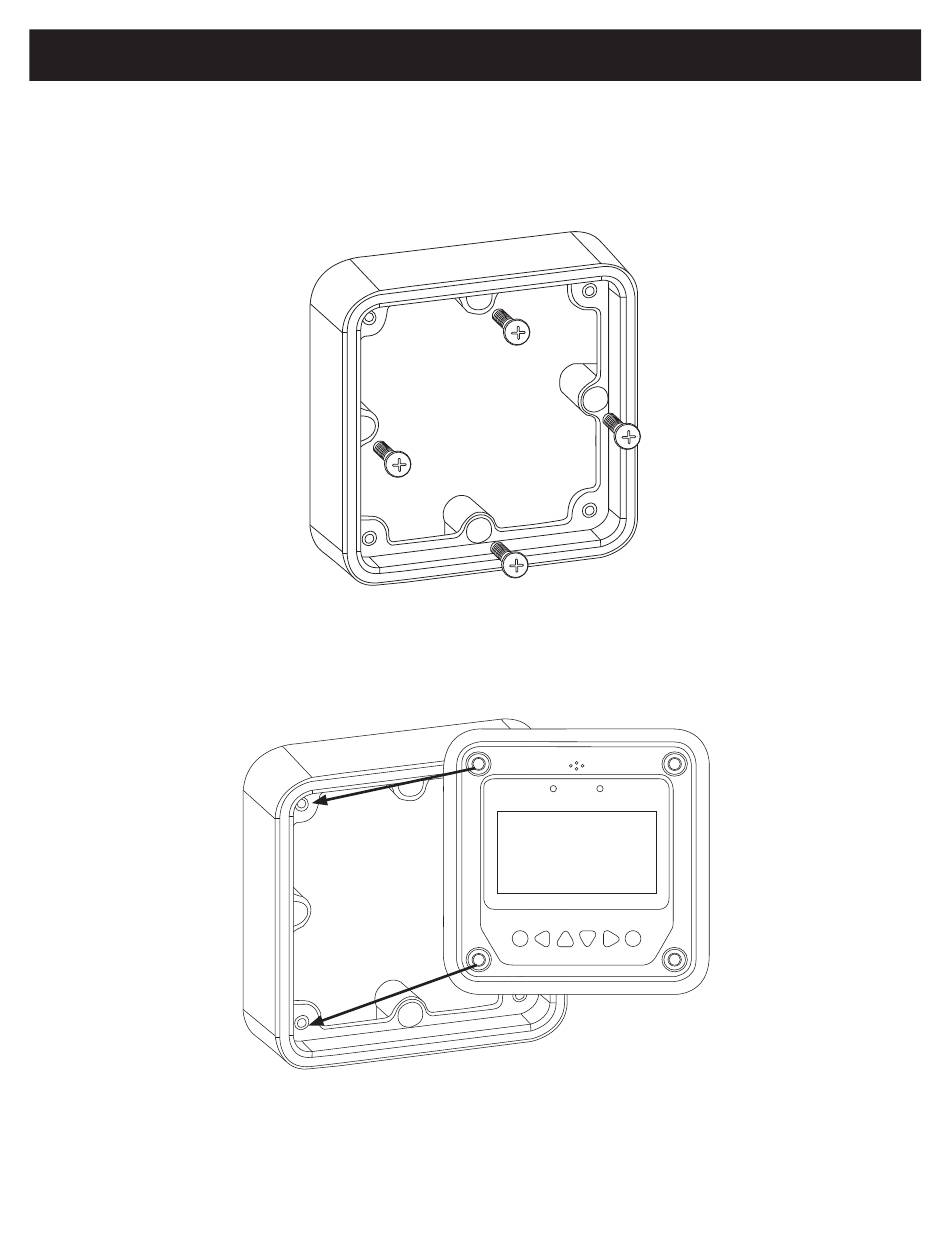

Figure 2, Frame Mounting
Figure 3, OutBack Mate Micro Mounting
(06/2016)
