RF Output Setup

Use the RF Output Setup Page to setup each RF Output.
The DT-IPTV-QAM-12C-SD offers the integrator the ability to set the output channel independently of the other output
channels of the DT-IPTV-QAM-12C-SD Encoder. This professional parameter allows the integrator greater flexibility for
placing video streams within the system. Each RF/QAM (3 streams per RF by default) can be allocated independently.

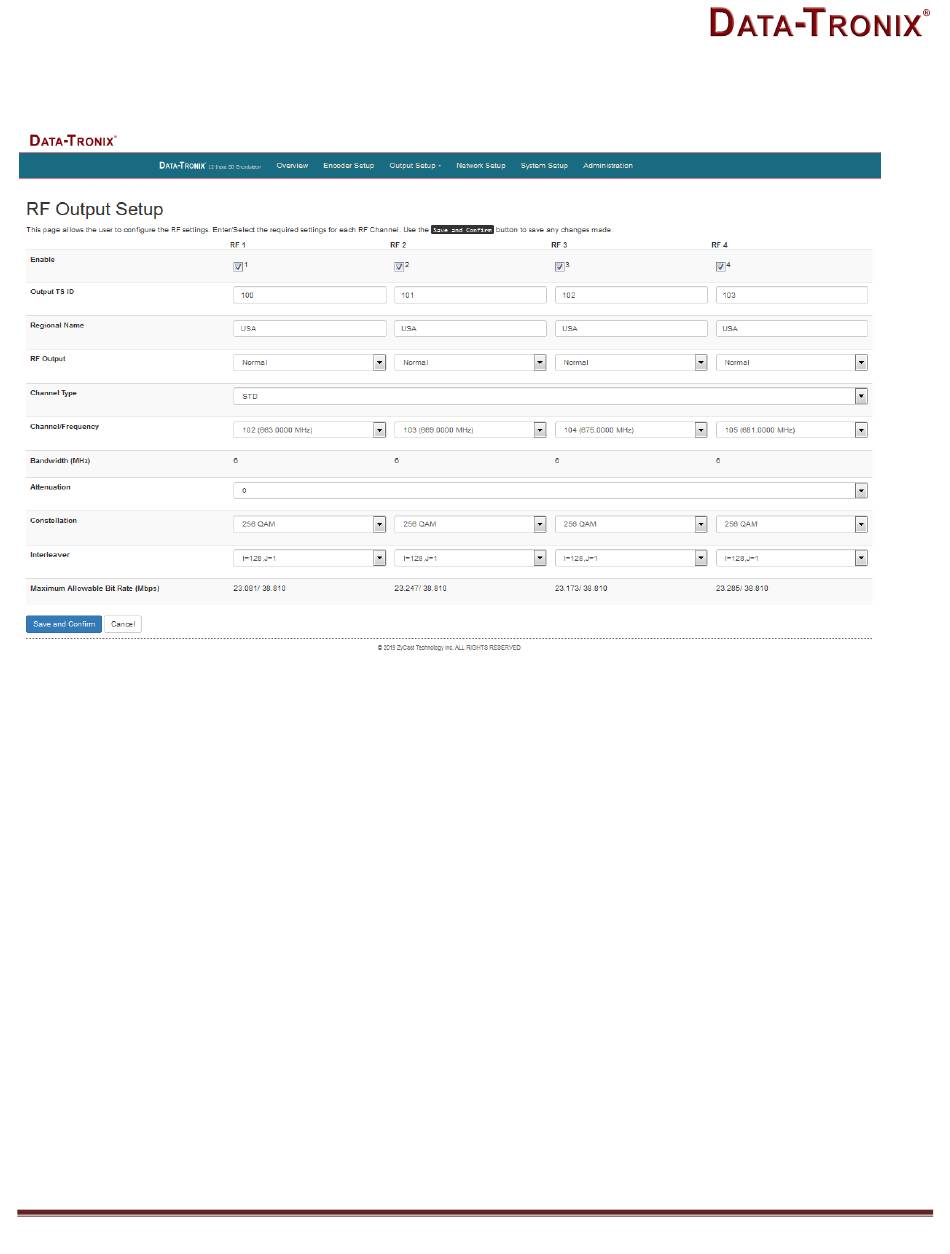

RF Output Setup
1. Select RF Output Setup from the menu.
2. Enable/Disable RF1-RF4 by checking or unchecking Checkbox (as required).
3. Modify the RF Output TS ID (as required).
4. Select and Set RF Type.
5. Select and Set Channel Type.
6. Select and Set Channel/Frequency required.
7. Select and Set Attenuation (if required).
8. Select and Set required Constellation.
9. Modify Interleaver (if required).
10. Save and Confirm all changes made.
