Summary of Contents for Data-Tronix DT-IPTV-QAM-12C-SD

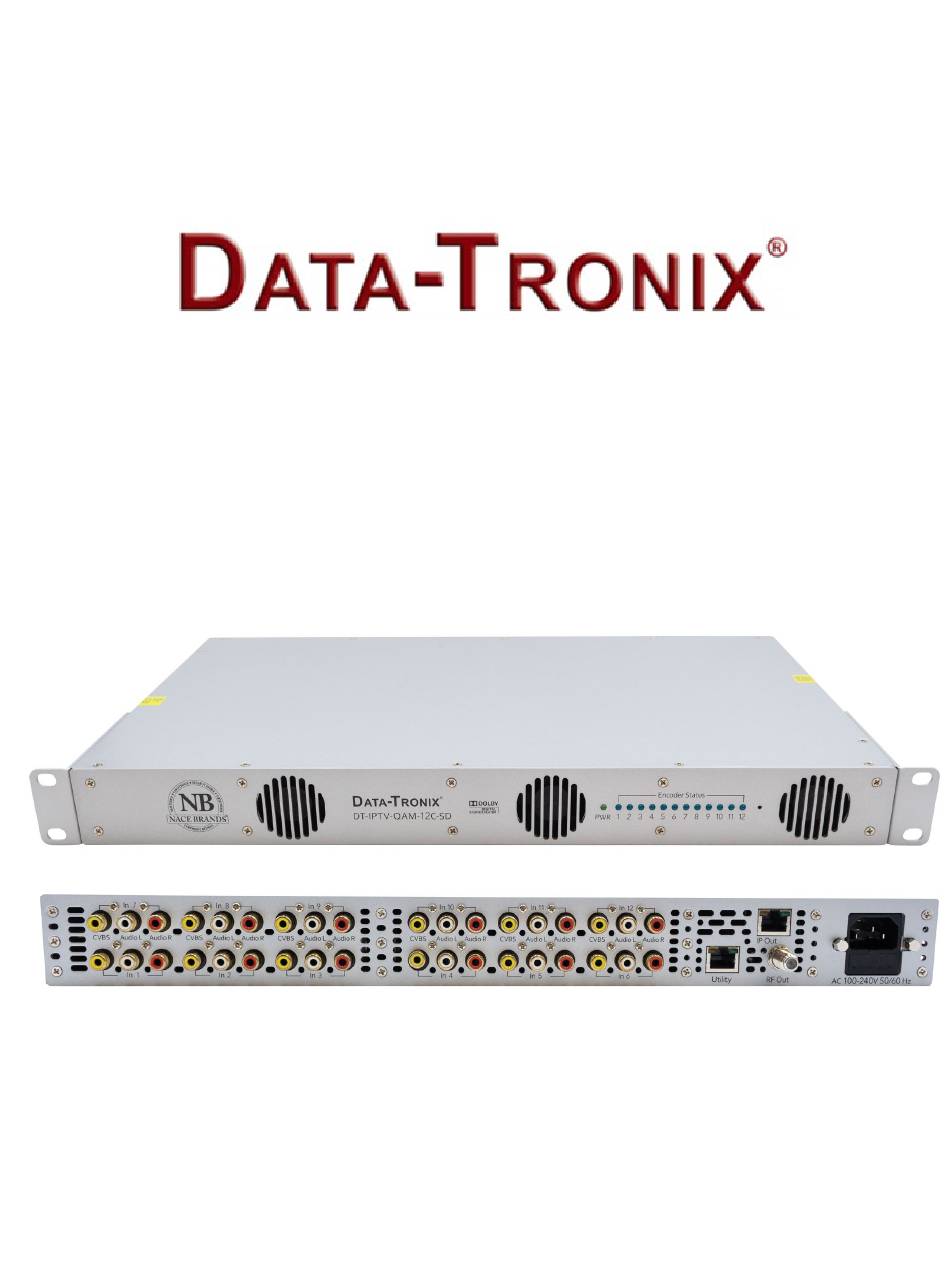

- Page 1 USER GUIDE & INSTALLATION MANUAL DT-IPTV-QAM-12C-SD 12-Input DVB-C ANNEX B SD Encoder / Modulator...
-
Page 2: Table Of Contents
Reset to Default ............................. 16 Backup ..............................16 Restore/Upload saved file configurations ..................16 Firmware Upgrade ..........................17 Change Password..........................18 Private Address Ranges, IPv4 ....................18 Product Notes ......................... 19 NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-12C-SD Manual v1.0 Page 2... -
Page 3: Safety Precautions
(An eManual will be supplied) One User Guide and installation manual Inspect the package before starting installation to ensure there is no damage and all supplied contents are present. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-12C-SD Manual v1.0 Page 3... -
Page 4: Product Description
The DT-IPTV-QAM-12C-SD Encoder/Modulator provides a dynamic independent DVB-C Annex B QAM output along with 12 IP streams making it ideal for any commercial RF system. The DT-IPTV-QAM-12C-SD Encoder/Modulator is a feature rich Digital Encoding platform allowing it to be deployed in a variety of installations. -
Page 5: Specifications
438mm x 286mm x 44.4mm Standard IP Streaming Output Weight 9.7 lbs 1000Base-T Ethernet, Full Duplex Language English *Subject to change without notifications *Manufactured under License of Dolby Laboratories NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-12C-SD Manual v1.0 Page 5... -
Page 6: Device Programming And Setup
3. Enter ‘192.168.1.9’ into your web browser. 4. Enter GUI and make required device changes. 5. Save all changes as required, upload and reboot changes. 6. Verify parameters then end web session. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-12C-SD Manual v1.0 Page 6... -
Page 7: Overview
Enter Device's IP address in web browser to access the Overview Pages (Encoder Overview and RF Out Overview) The Overview page of DT-IPTV-QAM-12C-SD shows inputs 1-12 system status including: Video Source parameter, Video Output setting, Audio Output, Bitrate, and more. -
Page 8: Encoder Setup
The Overview page provides a quick snapshot of the DT-IPTV-QAM-12C-SD when fully functioning. System Parsing / Response Time: The initial System Parsing time will vary as the system identifies and populates the required parameters. As the user navigates the device's menu note that a small delay may occur in populating the data on the screen as the system is constantly performing system parsing and system house-keeping functions. - Page 9 Select Encoder 1 RF# “Off”, press Save and Confirm, then Apply the Changes. The overview page of the the ENCODER will show Output RF - Encoder 1 Off as the following image for your reference. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-12C-SD Manual v1.0 Page 9...
-
Page 10: Output Setup
4. Select ‘Save and Confirm’ once all the streams are setup. Disable IP Streams The DT-IPTV-QAM-12C-SD offers the user a SPTS output stream. Each Stream can be disabled as required. To disable an IP Stream “uncheck” the checkbox in front of the appropriate IP Stream ID (1-12). -
Page 11: Rf Output Setup
Use the RF Output Setup Page to setup each RF Output. The DT-IPTV-QAM-12C-SD offers the integrator the ability to set the output channel independently of the other output channels of the DT-IPTV-QAM-12C-SD Encoder. This professional parameter allows the integrator greater flexibility for placing video streams within the system. - Page 12 Note: The DT-IPTV-QAM-12C-SD allows the integrator the ability to set the output channels independently of the other 11 output channels. Example 1: Example 1 shows RF1- RF2 with a small frequency separation. Example 2: Example 2 shows RF3- RF4 with a large frequency separation.
-
Page 13: Network Setup
Mask, Gateway, Enable/Disable DHCP, and set Host Name. Save and Confirm: Once all parameters are set remember to Save and Confirm all changes. Factory Default Management port IP: 192.168.1.9 NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-12C-SD Manual v1.0 Page 13... -
Page 14: Streaming Ip Setup
System Setup page allows the user to indicate the device’s Location. After key in the desired Location and Apply the change, the Location will show up on the Overview Page. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-12C-SD Manual v1.0 Page 14... - Page 15 On the System Setup page, key in “Office 1” in the Location. Apply the Change. The “Office 1” Location will show up on the Overview page as follows for your reference. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-12C-SD Manual v1.0 Page 15...
-
Page 16: Administration
3. Locate the required file to be imported. 4. Select “Upload” to import the selected file into the device. 5. Remember to save and backup any and all changes. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-12C-SD Manual v1.0 Page 16... -
Page 17: Firmware Upgrade
Firmware Upgrade Select a new firmware image file and upload to upgrade the Firmware when needed. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-12C-SD Manual v1.0 Page 17... -
Page 18: Change Password
It is important to note that only some of the 172.xx.xx.xx and the 192.xx.xx.xx address ranges are designated for private use. The remaining addresses are public and can be routable via the global Internet. More information regarding private addresses can be found at http://www.iana.org and https://www.arin.net NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-12C-SD Manual v1.0 Page 18... -
Page 19: Product Notes
Product Notes NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-12C-SD Manual v1.0 Page 19...
