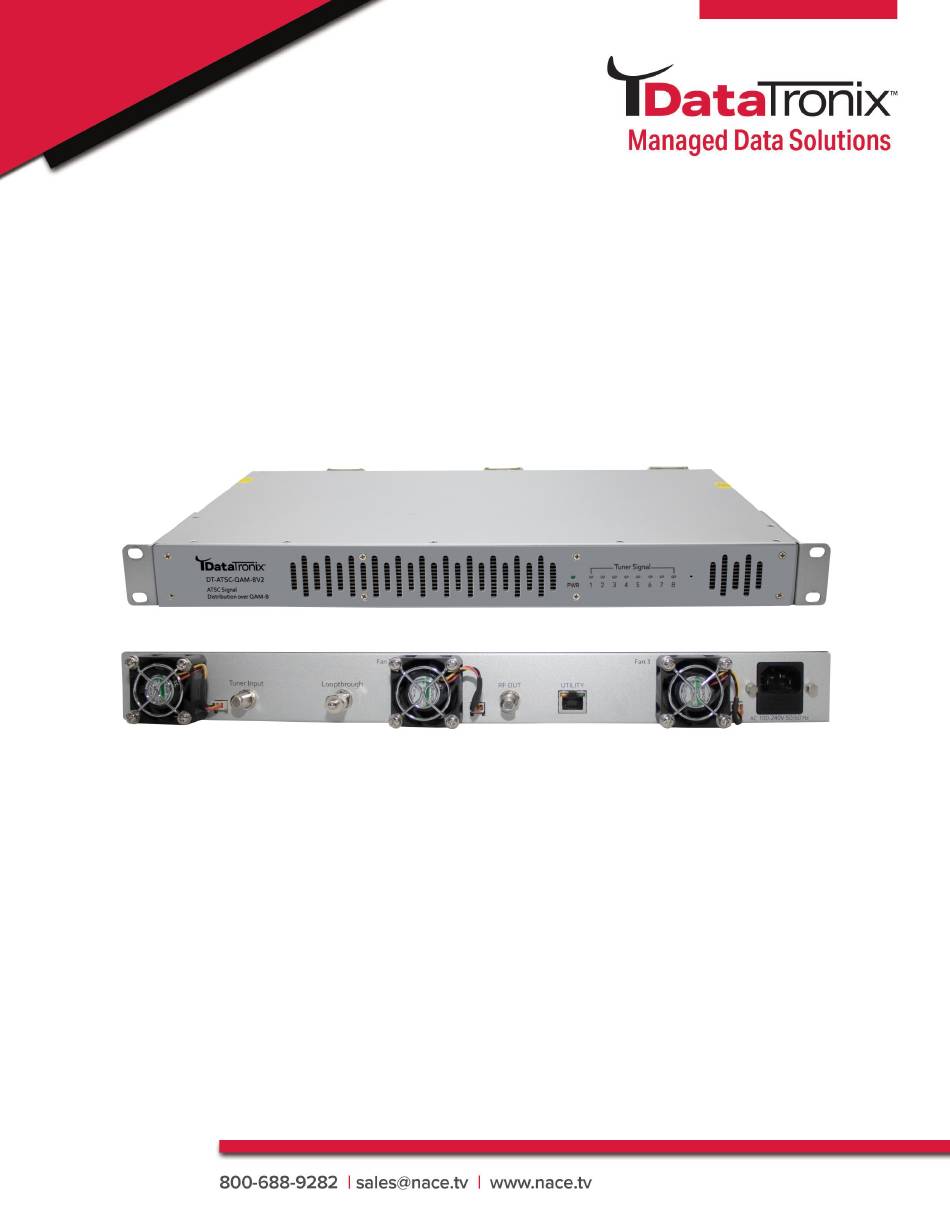

- Page 1 Manual DT-ATSC-QAM-8V2 User Manual 8 input ATSC-8VSB / QAM-B to QAM-B Trans-Modulator...
-
Page 2: Table Of Contents
Safety Precautions ......................... 3 Package Contents........................3 Unpacking and Inspection ...................... 4 Installation ..........................4 Introduction to DT-ATSC-QAM-8V2: ATSC-8VSB / QAM-B to QAM-B Trans-Modulator .... 4 Features........................4 System Parsing / Response Time ................... 4 Specifications ........................ 5 Hardware Installation ......................6 Device Programming and Setup ..................... -
Page 3: Safety Precautions
If the device has been in a cold environment allow it to warm to room temperature for at least 2 hours before connecting to an AC outlet. Package Contents ➢ One DT-ATSC-QAM-8V2 ➢ One Power Cable ➢ One Installation / Configuration Manual... -
Page 4: Unpacking And Inspection
Introduction to DT-ATSC-QAM-8V2: ATSC-8VSB / QAM-B to QAM-B Trans-Modulator The DataTronix DT-ATSC-QAM-8V2 is a high quality 8VSB /Clear QAM to QAM Trans- modulator. It was designed to allow system integrators to receive and process up to 8 individual 8VSB (ATSC) / Clear QAM channels along with up to 56 sub channels, and easily convert these signals to produce a high-quality RF QAM distribution system. -
Page 5: Specifications
DT-ATSC-QAM-8V2 Manual Input Web Management RF Mode (ATSC-8VSB and QAM) GigE Connector 1 x F-Type, Female Connector 1 x RJ45 Input Impedance 75 ohm 100 / 1000Base-T Ethernet, Standard Full / Half Duplex, ATSC-8VSB Auto-Negotiation Modulation ITU J.83 Annex B... -
Page 6: Hardware Installation
2. Properly connect required outputs of terrestrial antennas/splitter feeds to the DT-ATSC-QAM-8V2. 3. Apply Power to the DT-ATSC-QAM-8V2. 4. Connect an Ethernet cable from Utility Port on the DT-ATSC-QAM-8V2 to a PC/MAC. Device Programming and Setup Connecting to the GUI Interface 1. -
Page 7: Overview Page
DT-ATSC-QAM-8V2 Manual Overview Page [Overview Page] provides an overall system status of the DT-ATSC-QAM-8V2 including: RF Input Type, Frequency, SNR, Signal Status, and Programs**. **Programs : If you move your cursor to “ ” you will see the detailed information (see figure... - Page 8 DT-ATSC-QAM-8V2 Manual Overview (RF Output): RF Outputs showing the number of sub-streams/programs...
- Page 9 DT-ATSC-QAM-8V2 Manual Overview (Fan): This tab shows fan status and system uptime...
-
Page 10: Ingest Setup
DT-ATSC-QAM-8V2 Manual Ingest Setup Use the [Ingest Setup] page to configure each input. Up to 8 individual - ATSC or QAM inputs can be assigned. Ingest Setup Procedures 1. Select Ingest setup tab from the top menu 2. Select the appropriate ingest input (1 thru 8). Enable as required 3. -
Page 11: Streaming Setup
2. Modify SID (Services Output ID) Note 1: If installing multiple DT-ATSC-QAM-8V2 units make sure not to duplicate SID outputs Note 2: Enter SID for a program and the followed programs will be assigned by consecutive numbers 3. -
Page 12: Streaming System Parameters
DT-ATSC-QAM-8V2 Manual Streaming System Parameters Input Input No. Total Input Number Received by Tuner PMT PID Program Map Table PID Video PID Video Stream PID Audio PID Video Stream PID TS ID Input Transport Stream ID Service ID (Program ID) -
Page 13: Customize The Streaming Setup View
DT-ATSC-QAM-8V2 Manual Customize the Streaming Setup View The [Streaming Setup] parameters page is easily customizable for each system. To customize the parameters shown: Select “Select Columns” tool Add or remove parameter as needed by selecting or deselection Close window after selecting / deselecting parameters... -
Page 14: Rf Output Setup
Select RF type [Normal, Inverted, C.W.] Select Channel type [STD, HRC, IRC] Set CH/Freq. [CH 2 – CH 135 / Freq. 57MHz ~ 861MHz] Note: DT-ATSC-QAM-8V2 is frequency agile BW: factory set [6MHz] Set attenuation [ 0 ~ -20dB. 1dB Steps] Select constellation [64-QAM , 256-QAM] 10. -
Page 15: Network Setup
DT-ATSC-QAM-8V2 Manual Network Setup Device IP Address Setup Select network setup tab to manage the IP address of the device Modify hostname as required Select DHCP or static IP For Static IP: select static IP and enter static IP address for device... -
Page 16: Forgot Ip Address
Name: admin / Password: Admin123 Note: ONLY THE IP ADDRESS WILL REVERT BACK TO DEFAULT SETTING,- NO CHANGES WILL BE MADE TO THE CONFIGURATION System Setup Description Use the [System Setup Page] to designate location and description of the DT-ATSC-QAM-8V2 unit. -
Page 17: Time / Ntp Server Setup
DT-ATSC-QAM-8V2 Manual Time / NTP Server Setup Use the time tab to set the units system time and time zone and NTP Server. 1. Select time tab on system setup page 2. Select time zone from the drop-down tool 3. Enter NTP Server 1 / 2 addresses as required 4. -
Page 18: Backup
DT-ATSC-QAM-8V2 Manual Backup We highly recommend saving your device’s setting. 1. Select administration tab 2. Select backup from the menu 3. User can choose which data required backup from the following pages: Ingest setup / Streaming Setup / RF Out Setup / Network Setup / System Setup 4. -
Page 19: Firmware Update
DT-ATSC-QAM-8V2 Manual Firmware Update Use the Firmware Upgrade section to import new FW version. 1. Select administration tab 2. Select firmware upgrade tab 3. Browse to locate the required image file to be uploaded 4. Select “Upload” to import the selected file into the device *******Note: Do not power off the unit while importing. -
Page 20: Private Address Ranges, Ipv4
DT-ATSC-QAM-8V2 Manual 1. Select administration tab 2. Select password tab 3. Follow listed instructions Save and Confirm to apply new password. Private Address Ranges, IPv4 Private IPv4 addresses are addresses set aside by the IANA (Internet Assigned Numbers Authority) for use within networks that will not directly communicate or be seen by the internet. -
Page 21: Warranty
DT-ATSC-QAM-8V2 Manual DATATRONIX 1-Year Limited Warranty DATATRONIX. (the "Company") warrants to the Original Purchaser that the item purchased is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. - Page 22 DT-ATSC-QAM-8V2 Manual jurisdiction to find out whether the above exclusion applies to you. This warranty allocates risks of product failure between Original Purchaser and the Company. The Company's hardware pricing reflects this allocation of risk and the limitations of liability contained in this warranty.
