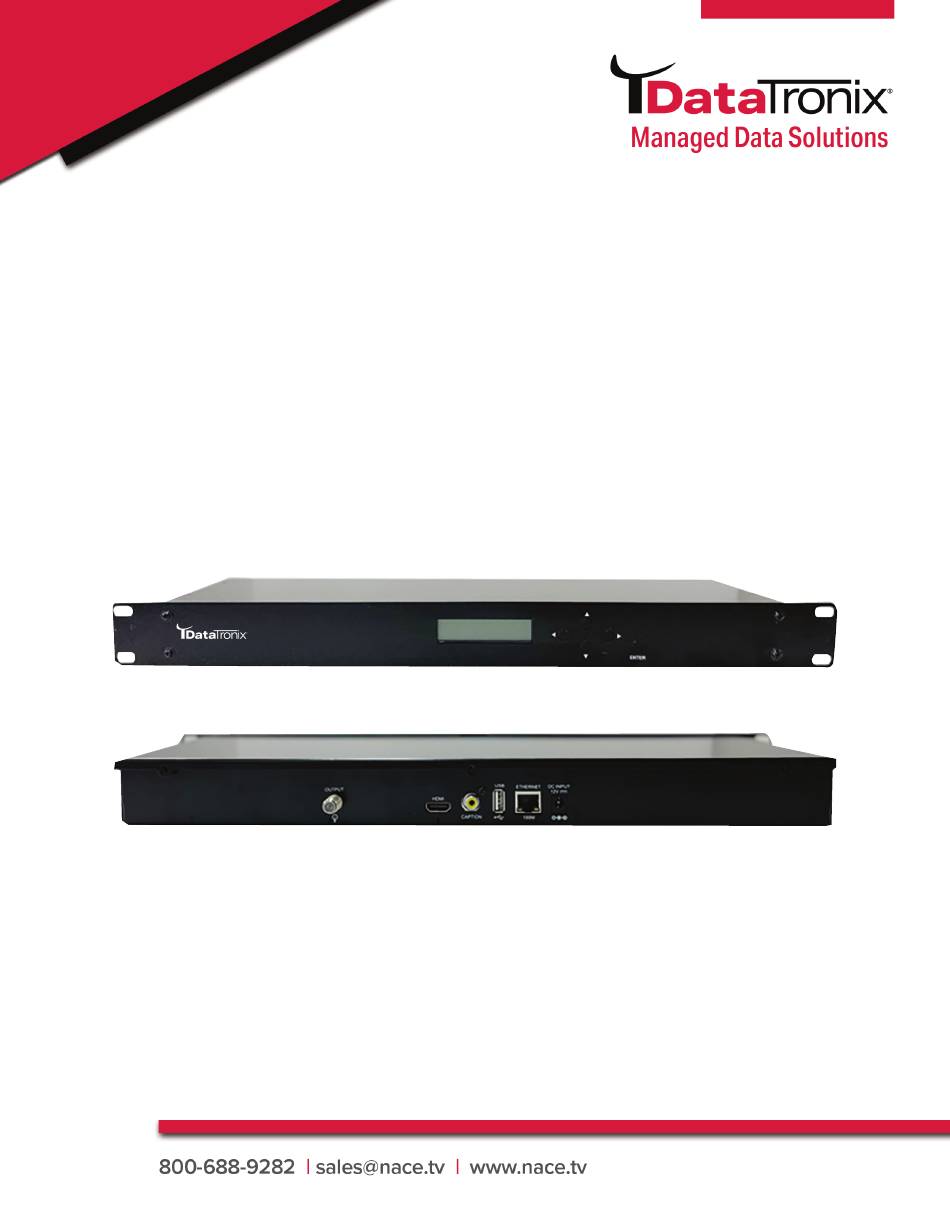

- Page 1 Manual DT-QAM-AMM-1AIN1 User Manual...
-
Page 2: Table Of Contents
DT-QAM-AMM-1AIN1 Manual Table of Contents GENERAL ........................3 Description ......................3 Specifi cations ..................... 3 INSTALLATION ....................... 4 Power Supply......................4 2.1.1 Operation via external power supply ............4 Connection......................4 2.2.1 Connection diagram examples ..............4 Navigation and edition of values................. 4 OPERATING INSTRUCTIONS ...................5-10... -
Page 3: General
1 General 1.1 Description The DataTronix DT-QAM-AMM-1AIN1, High Defi nition (HD) Modulator, is the ultimate solution for adding local content seamlessly into a coaxial cable TV network. This innovative device boasts the ability to generate an MPEG-2 encoded signal in either QAM or ATSC format from an HDMI input. -
Page 4: Installation
DIFFER FROM THOSE CURRENTLY USED BY YOUR TV. Navigation and edition of values. The DT-QAM-AMM-1AIN1 is confi gured through its 5 keys and web control. In general, it is not necessary to confi gure the instrument to generate a QAM/ATSC signal compatible with any... -
Page 5: Operating Instructions
DT-QAM-AMM-1AIN1 Manual 3 Operating Instructions 3.1 Description of controls and components 4 5 6 7 8 1. LCD panel @ 2 x 16 characters on front panel 2. 5 Local Keys on Front Panel 3. RF Output 4. HDMI Input 5. -
Page 6: Starting
“CH 2 & RF 00 ” will show on the display. 2. Connect an HDMI video source to the HDMI input port of the DT-QAM-AMM-1AIN1, using an HDMI cable. For Closed Captioning, connect a composite (yellow) cable from the video source to the Caption port. - Page 7 AMM-1AIN1. Time will be shown on the display. Note: this setting is not saved to non-vola- tile memory. If the instrument loses power, the user has to correct it manually. 18. FW Version: Shows the fi rmware version installed in the DT-QAM-AMM-1AIN1. This option is not editable.
-
Page 8: Menu Tree
DT-QAM-AMM-1AIN1 Manual Main Layer 1 Layer 1 (Default) Layer 2 Modulator QAM (J.83-B) QAM (J.83-B), ATSC Constellation 256 QAM 64 QAM, 256 QAM RF Attenuation 00 dB 00 - 30 dB 1 Modulator QAM CH2 57- CH135 861 MHz Frequency... -
Page 9: Accessing The Digital Modulator Admin Settings
DT-QAM-AMM-1AIN1 Manual Accessing the DT-QAM-AMM-1AIN1 Admin Settings by Browser 3.5.1 Login By Browser: Enter the IP address in the browser. The default IP address is 192.168.1.99, or enter the IP location assigned by DHCP. Then input the default password ‘0000’ and press the Login button. -
Page 10: Video & Audio Settings
DT-QAM-AMM-1AIN1 Manual 3.5.4 Video & Audio Settings: 3.5.5 Stream Settings: 3.5.6 System information:... -
Page 11: Warranty
DT-QAM-AMM-1AIN1 Manual 4. Warranty DATATRONIX 2-Year Limited Warranty DATATRONIX. (the “Company”) warrants to the Original Purchaser that the item purchased is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. - Page 12 DT-QAM-AMM-1AIN1 Manual the possibility of such damages, or for any claim brought against your by another party. Jurisdic- tions vary with regard to the enforceability of provisions excluding or limiting liability for incidental or consequential damages. You should check the laws of your local jurisdiction to fi nd out whether the above exclusion applies to you.
