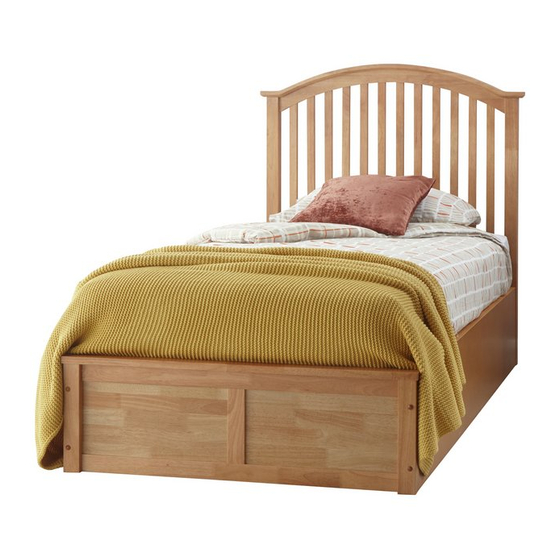

MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS
Thank you for purchasing the MADRID WOODEN OTTOMAN BED 3FT. Please read
the instructions carefully to ensure safe operation of the product.
Size: 3FT L 2015 X W 995 X H 1140
Colour : WHITE,OAK
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not destroy any of
the packaging until you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small components used in the construction of this unit. These loose items should be kept away
from young children whilst assembling your unit to avoid the danger of choking hazards.

Tools Required

2632
Page 1 of 16
