Insertion of the SIM Card

Power Supply Connection

External Antenna
Connection
Battery Pack
Connection
6 | VU.SH.E1.02
SonoCollect 210/211

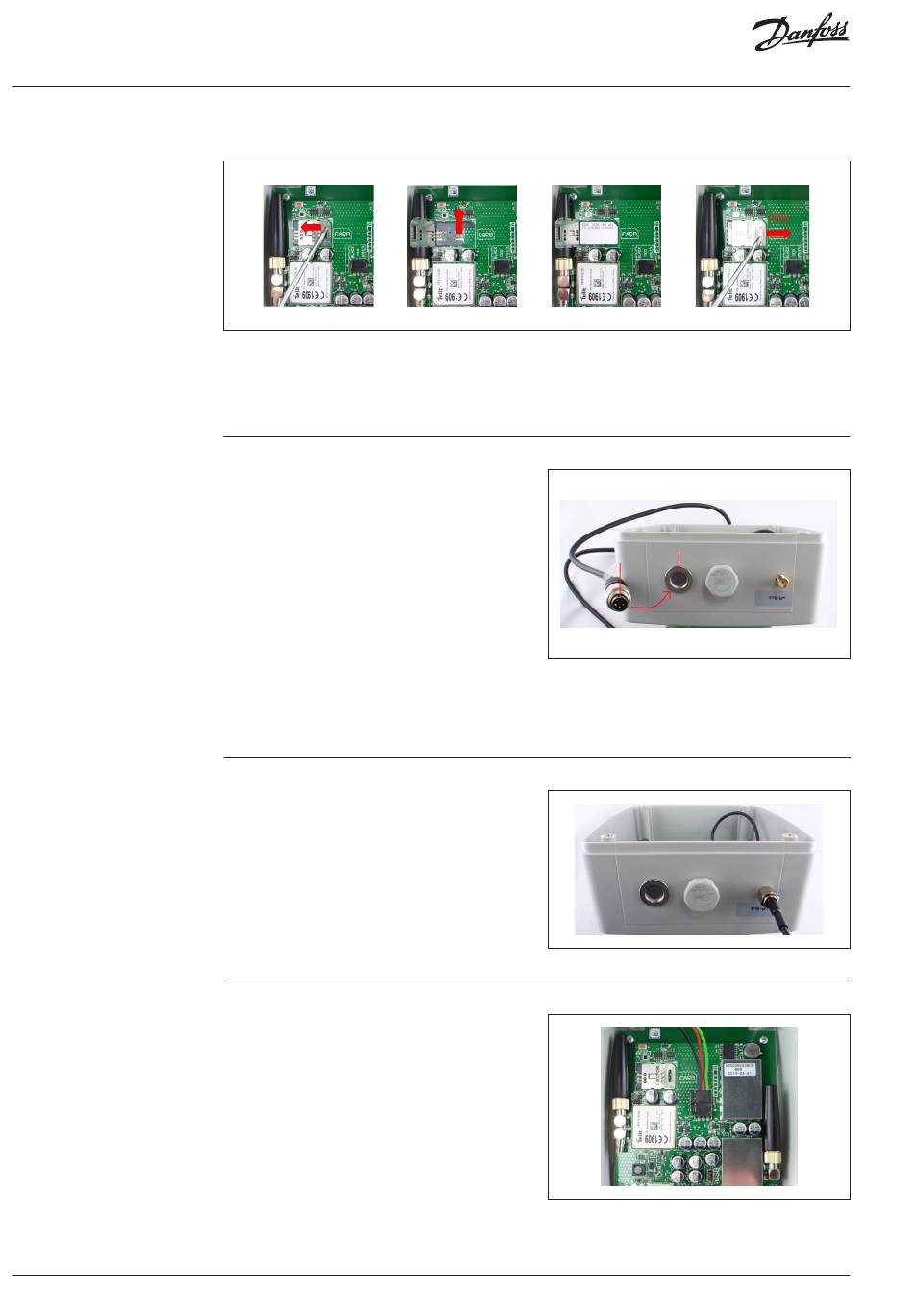

The SIM card is inserted as shown on the pictures
beneath:
The SIM card should be inserted gently without
using force. Please be sure that the card holder
lid is correctly locked by pushing it until it snaps
in (as indicated on the right most picture above).
If the SonoCollect 210/211 device is equipped
with, an external USB or mains power supply
connector and you also have the mains power
supply wall plug for the SonoCollect 210/211 you
have to connect it as shown in the picture.
Please note the connector indicators on plug
and connector. Do not use force to connect the
power supply but turn the connector gently until
it slips in. You may then use the fitting screw to
fasten the connector in place. Here again, screw
it on gently without using force.
It is only possible to connect either the external
power supply or the external USB cable for
configuring the device without opening the case.
If the SonoCollect 210/211 device is equipped
with an external antenna connectors, for either
a Wireless M-Bus antenna or a GSM / UMTS
antenna or both you have to screw on the
respective antenna or antenna cable gently
on the respective SMA type connector. The
connectors are marked with GSM / UMTS or wM-
Bus. Do not use force to screw on the antennas.
If you are using a tool, be sure to tighten the
screws only a little.
The cable of the battery pack is connected as
shown in the picture below.
Do not invert the polarity of the connector
(see picture and description on the printed
circuit board).
For configuring the SonoCollect 210/211, it is not
necessary to connect the battery pack, since it is
also supplied by the USB interface.
Do not use any other power supply than the
SonoCollect 210/211 wall-plug power supply.
