Operation Controls and Functions

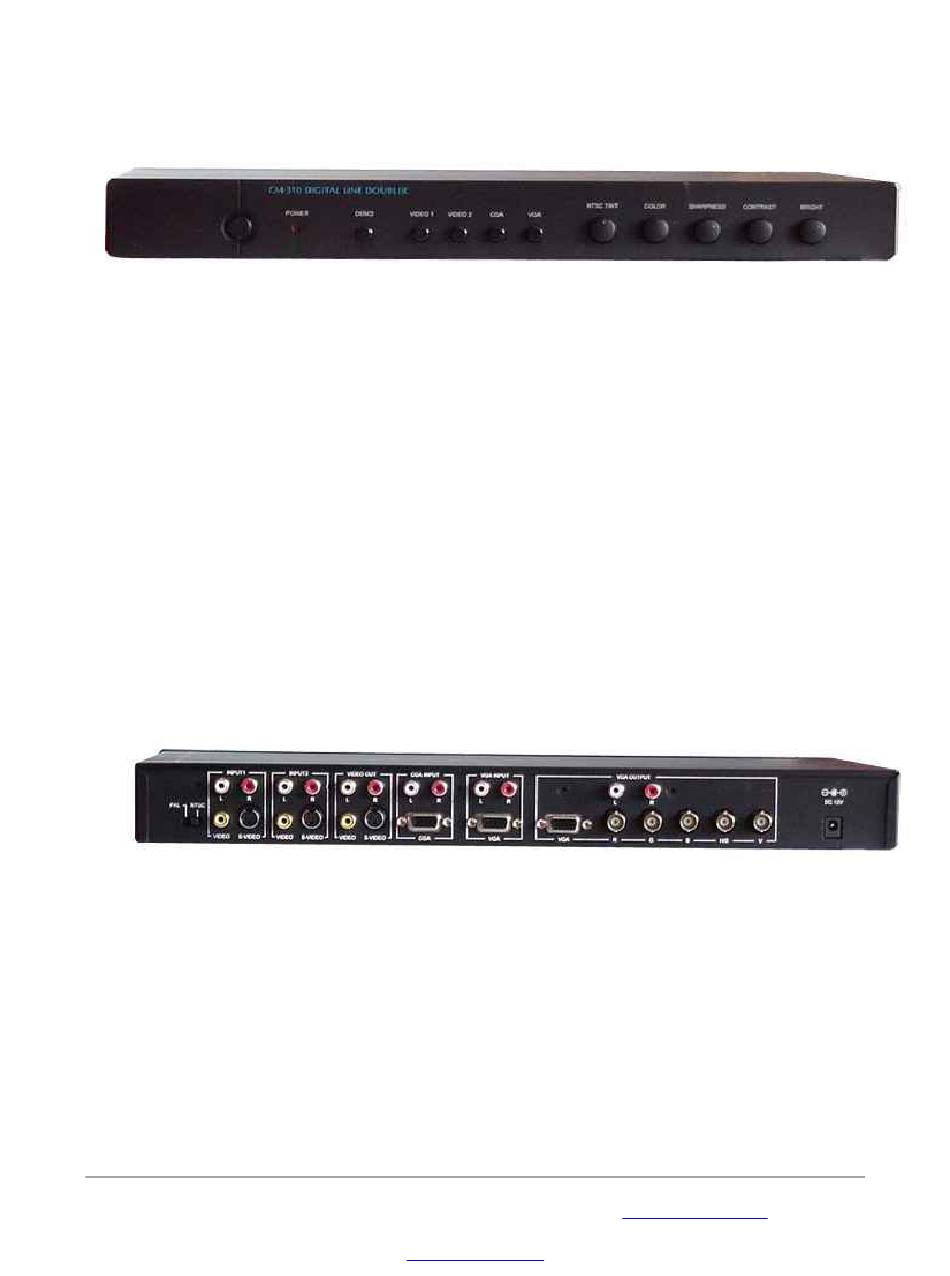

Front Panel

1. Power On/Off Switch- This switch allows the unit to be powered on or off.
2. Power LED- This LED will illuminate when the unit has been turned on.
3. Demo On/Off- Push the button for the demo picture of which the left-half shows
bypassed video and the right-half shows double-scanned VGA output.
4. Video 1 On/Off- Push the button to select Video 1 input.
5. Video 2 On/Off- Push the button to select video 2 input.
6. CGA On/Off- Push the button to select CGA (15 KHz) input.
7. VGA On/Off- Push the button to select VGA input for bypassing to output.
8. NTSC Tint Control- Adjust the tint level of VGA Out when input is NTSC.
9. Colour Control- Adjust the chroma level of the VGA Out.
10. Sharpness Control- Adjust the sharpness level of the VGA Out.
11. Contrast Control- Adjust the contrast level of the VGA Out.
12. Bright Control- Adjust the brightness level of the VGA Out.

Rear Panel

1. NTSC/PAL Selector- Select NTSC for NTSC input. Select PAL for PAL input.
2. Input 1 connectors- Input connectors for Video 1, including 1 S-Video, 1 Video
RCA and 2 Audio RCA Jacks.
3. Input 2 connectors- Input connectors for Video 2, including 1 S-Video, 1 Video
RCA and 2 Audio RCA Jacks.
4. Video Out- Output connectors for bypassed video, including 1 S-Video, 1 Video
RCA and 2 Audio RCA Jacks.
5. CGA Input- Input connectors for 15K CGA, including 1 15-pin D-type connector
and 2 Audio RCA Jacks.
6. VGA Input- Input connectors for 31 KHz VGA, including 1 15-pin D-type
connector and 2 Audio RCA Jacks.
